The cleaning and maintenance of photovoltaic power stations are crucial factors affecting power generation efficiency and lifespan. Traditional manual cleaning methods suffer from disadvantages such as low efficiency, high costs, and significant safety risks, making it challenging to meet the demands of large-scale photovoltaic power stations.
Guangdong Jienergy Electric Appliance Technology Co., Ltd. has developed an intelligent photovoltaic cleaning robot that employs advanced wheeled mobility. It can adapt to different photovoltaic panel structures and terrains without the need for tracks or frames. This design reduces pressure and damage to the photovoltaic panels, thereby enhancing the robot's flexibility and stability.
- Product Details
- {{item.text}}
Quick Details
-
walking speed:
-
12-20m/min
-
water consumption:
-
270-330L/H(0.3mpa)
-
battery capacity:
-
24V/10AH
-
full-charge endurance:
-
4-6H
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Jieneng
-
Model Number:
-
JN-G1
-
walking speed:
-
12-20m/min
-
water consumption:
-
270-330L/H(0.3mpa)
-
battery capacity:
-
24V/10AH
-
full-charge endurance:
-
4-6H
Products Description

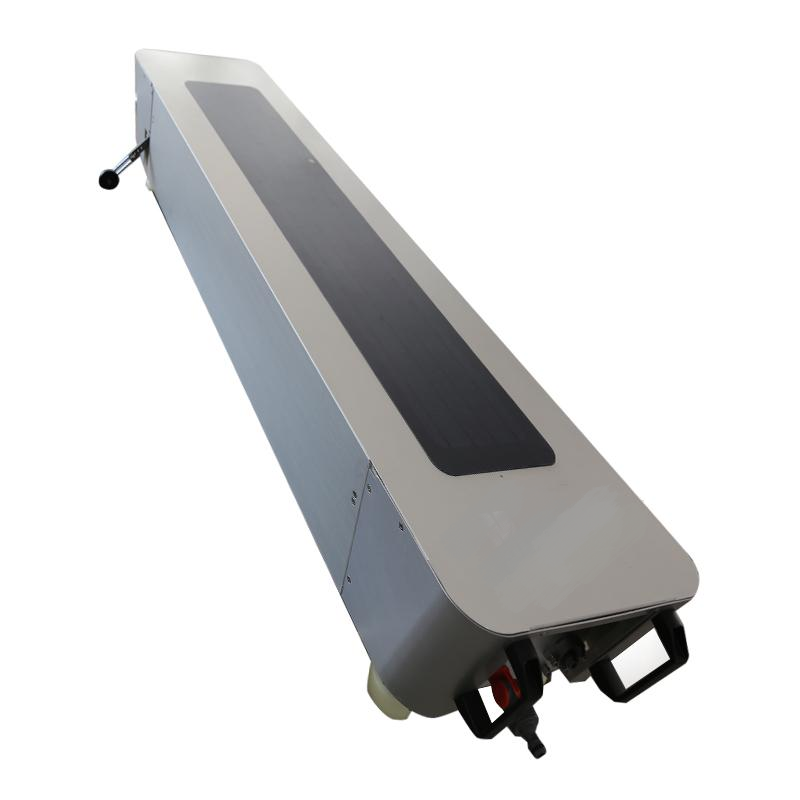

Photovoltaic Cleaning Robot
Intelligent Cleaning System
.
The advanced automated control system of the intelligent cleaning system can independently adjust
cleaning modes and water flow intensity based on the actual conditions of the photovoltaic panels, ensuring optimal cleaning
effectiveness.
cleaning modes and water flow intensity based on the actual conditions of the photovoltaic panels, ensuring optimal cleaning
effectiveness.
Remote Monitoring
.
Equipped with remote monitoring capabilities, you can conveniently check the operational status of the cleaning
machine through a mobile application or web interface, allowing for necessary adjustments.
machine through a mobile application or web interface, allowing for necessary adjustments.
Durable Materials
.
The cleaning machine is constructed from highly weather-resistant materials, maintaining stability and lifespan even in harsh weather conditions.
|
Model number
|
JNX-G1
|
|
Solar panel length range
|
One board/two boards/multiple boards
|
|
Obstacle clearing ability
|
20mm
|
|
Travel distance
|
One way travel1800-4320m（12m/min）
|
|
Travel speed
|
12-20m/min
|
|
Motor power
|
100W/200W/300W
|
|
Machine weight
|
30-115 kg
|
|
Machine width
|
365mm
|
|
Machine height
|
280mm
|
|
Water consumption
|
270-330L/H (0.3mpa)
|
|
Charging plate power
|
27W
|
|
Battery capacity
|
24V 10AH/ 24V 20AH
|
|
Battery life on full charge
|
4-6 h
|
|
Cleaning brush life
|
2-3years
|
|
Ambient temperature
|
-10℃（ice-free）-50℃
|
|
Cleaning method
|
Dry cleaning/wet cleaning
|
|
Sweeping mode
|
Once/multiple times/Scrub/egular cleaning
|
|
Machine length
|
Customized according to photovoltaic panel size
|
|
Bridge/water washing/wireless remote control/
intelligent management platform /WiFi/ 4G communication module/group control system |
Optional configuration
|
