Quick Details
-
Controller Type:
-
MPPT
-
Mounting Type:
-
Roof Mounting
-
Warranty:
-
20years
-
Place of Origin:
-
China
-
Output Voltage (V):
-
110v/220v/380v
-
Output Frequency:
-
50HZ/60HZ
-
Work Time (h):
-
24hours
-
Dimension L*WH(mm):
-
721*500*33(±1)(Curve Arch Height)
-
Thickness (mm]:
-
8(±1)
-
Weight per pc. [kg]:
-
6.5 (±0.5)
-
Weight per sqm. [kg]:
-
22 (±0.5)
-
Surace Glass:
-
High Transmission,Lowlron,Tempered Glass
-
Back Glass:
-
High Transmission,Lowlron,Tempered Glass
-
Frame:
-
Anodized Aluminiumn Alloy
-
Juntion Box:
-
IP67,MC4 connector
Quick Details
-
Application:
-
Commercial
-
Solar Panel Type:
-
curved solar tile
-
Battery Type:
-
Lithium Ion
-
Controller Type:
-
MPPT
-
Mounting Type:
-
Roof Mounting
-
Warranty:
-
20years
-
Place of Origin:
-
China
-
Output Voltage (V):
-
110v/220v/380v
-
Output Frequency:
-
50HZ/60HZ
-
Work Time (h):
-
24hours
-
Dimension L*WH(mm):
-
721*500*33(±1)(Curve Arch Height)
-
Thickness (mm]:
-
8(±1)
-
Weight per pc. [kg]:
-
6.5 (±0.5)
-
Weight per sqm. [kg]:
-
22 (±0.5)
-
Surace Glass:
-
High Transmission,Lowlron,Tempered Glass
-
Back Glass:
-
High Transmission,Lowlron,Tempered Glass
-
Frame:
-
Anodized Aluminiumn Alloy
-
Juntion Box:
-
IP67,MC4 connector
Product Paramenters
|
Curved Solar Tile
|
Black
|
|
|
Red
|
|||
|
Product Type
|
DF0101030
|
DF0101034
|
DF0101036
|
DF0102028
|
|||
|
Single Product Power [W)
|
30
|
34
|
36
|
28
|
|||
|
Power per sqm.[W]
|
103
|
115
|
122
|
103
|
|||
|
Open Circuit Voltage [V]
|
10.6
|
11
|
11.2
|
10.6
|
|||
|
Short Circuit Current (A)
|
4
|
4.2
|
4.3
|
4
|
|||
|
Voltage at Maximum Power [V]
|
8.6
|
9.2
|
9.5
|
8.3
|
|||
|
Current at Maximum Power (A)
|
3.5
|
3.7
|
3.8
|
3.4
|
|||
|
Dimension L*WH[mm]
|
721*500*33(土1)(Curve Arch Height)
|
|
|
|
|||
|
Thickness [mm]
|
8（±1）
|
|
|
|
|||
|
Weight per pc. [kg]
|
6.5（±0.5）
|
|
|
|
|||
|
Weight per sqm. [kg]
|
22（±0.5）
|
|
|
|
|||
|
liner power warranty [yearl
|
25
|
|
|
|
|||
|
Surface Glass
|
High Transmission, Low lron, Tempered Glass
|
|
|
|
|||
|
Back Glass
|
High Transmission, Low lron, Tempered Glass
|
|
|
|
|||
|
Frame
|
Anodized Aluminium Alloy
|
|
|
|
|||
|
Juntion Box
|
Aluminium AlloyP67.MC4 connector
|
|
|
|
|||
Product introduction

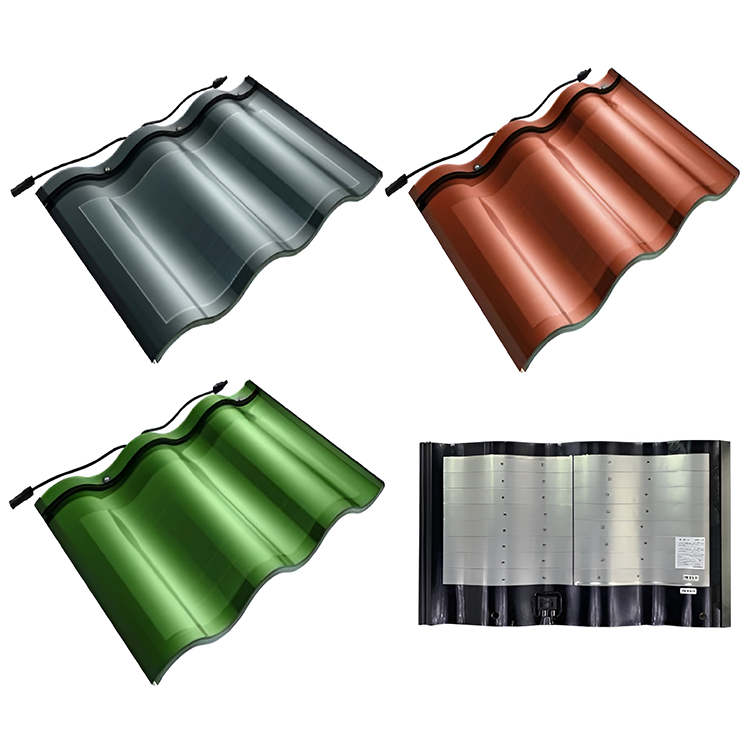

Curved tile solar cells
The curved solar tiles are designed for architecture and achieve an aesthetic effect that cannot be compared to other rooftop power generation products. In terms of appearance, the curved solar tiles inherit the aesthetic genes of traditional Chinese roof tiles, using modern technology and craftsmanship to perfectly express the beauty of the crystal clear surface of tiles.
On-grid system：Excess electricity is transmitted to the grid
Off-grid system：Excess electricity is stored in energy storage devices
Curved tile solar cells
The curved solar tiles are designed for architecture and achieve an aesthetic effect that cannot be compared to other rooftop
power generation products. In terms of appearance, the curved solar tiles inherit the aesthetic genes of traditional Chinese roof
tiles, using modern technology and craftsmanship to perfectly express the beauty of the crystal clear surface of tiles.
Inverter
Pure SineWave Inverter
Input Voltage from 12V to 1000V
Single phase and Three phase UE/US standard
Input Voltage from 12V to 1000V
Single phase and Three phase UE/US standard
Battery
2V/12V GEL/AGM batteries optional;
48V 50Ah 100Ah 200Ah 300Ah Lithium/LifePO4 battery
48V 50Ah 100Ah 200Ah 300Ah Lithium/LifePO4 battery
PV Combiner Box&Installation Tools
Customized design with CAD drawing
Flat/pitched roof, soil/cement ground installation
Flat/pitched roof, soil/cement ground installation
PV Combiner Box&Installation Tools
PV Array Combiner Box
SPD surge protection etc
Wire Cable Cutter & Stripper,
MC3 MC4 Crimper
MC4 Connectors Assembly
SPD surge protection etc
Wire Cable Cutter & Stripper,
MC3 MC4 Crimper
MC4 Connectors Assembly
PV Cables
Cross Section: 4mm2, 6mm2 Optional
Rated Voltage:600VDC(UL)/1000VDC(TUV)
Rated Current: 55A,70A
Colors: Black For STD, Red Optional.
Lifetime:≤25 Years
30A/1000V compatible MC4
Rated Voltage:600VDC(UL)/1000VDC(TUV)
Rated Current: 55A,70A
Colors: Black For STD, Red Optional.
Lifetime:≤25 Years
30A/1000V compatible MC4
Our Projects
Product packaging
About us
Changsun International manufactures and sells solar panels,Solar Shingle ,curved photovoltaic tiles, energy storage batteries and other photovoltaic products. At the same time, we focus on overseas photovoltaic power plant projects.
At the same time, we have sufficient stock of goods and our products have passed the certification of relevant international organizations, the product quality is reliable. we can also provide you with factory prices,a
lso,we ship from China to your port within 30days.
we Improve the pre-sale, sale and after-sales system construction, has established channel partners in many countries.Welcome to cooperate with us!
Certifications
FAQ
Q1 MOQ
A MOQ form our conpany is required 1 unit.
Q2 Are you manufacturer or trading company?
A We are professional manufacturer since 2004.
Q3 I need this product and wanna a system for family/industrial/commerical using,can you help me?
A Yes,we have professional technology team average 10 years experience,they can design solar power system in accordance with customers' special requirements.
Q3 I need this product and wanna a system for family/industrial/commerical using,can you help me?
A Yes,we have professional technology team average 10 years experience,they can design solar power system in accordance with customers' special requirements.
Q4 How long is your delivery time?
A Yes,we have professional technology team average 10 years experience,they can design solar power system in accordance with customers' special requirements.
Q5 How about your after sales service?
A Our quality warranty for 1-5 years,any parts will be shipped for free during warranty period.
