Best selling products polystyrene resin
Product details
| Product Keywords | polystyrene resin |
Features:
1. Brief Introduction:
The product is a type of cation exchange resin with the carboxylic acid radical(-COOH) on macroporous crylic acid copolymet which is used for industrial wastewater disposal ,especially for removing bicarbonate, carbonate and other basic salt .It can also be used for recovery processing of zinc and nickel waste solution and purification of biochemical drug.
D113 resin series are made up of three types, D113 is a kind of commonly used products, D113FC is widely used in front room bed and fluidized bed system and D113SC is applied to bunk bed system.
2. Voluntary Standards:
HG2164-91 DL519-2004 SH2605.05-1997
3. Typical physical and chemical properties:
|
Index Designation Indices |
LH- 113 |
LH- 113FC |
LH- 113SC |
|
Appearance |

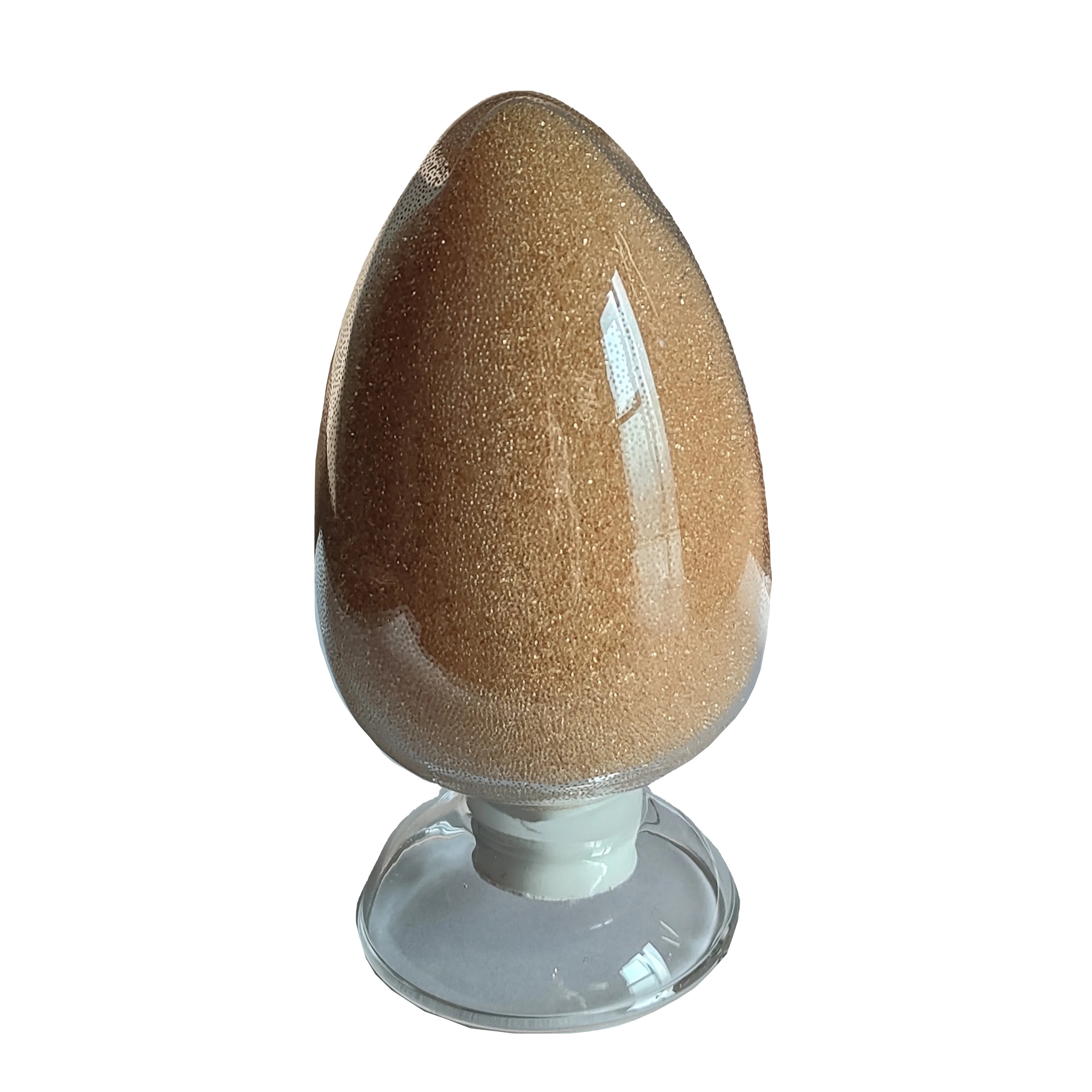

Milky white or straw yellow opaque spheroidal particle |
||
|
Ionic form as aeivered |
H+ |
||
|
Moisture Content % |
45-52 |
||
|
Total Exchange Capacity mmol/g |
≥10.80 |
||
|
Total Exchange Capacity mmol/mI |
≥4.40 |
||
|
Specific gravity/ml |
0.72-0.80 |
||
|
Bulk Density g/ml |
1.14-1.20 |
||
|
Range granularity % |
(0.315-1.25)mm≥95 |
(0.45-1.25)mm≥95 |
(0.315-0.63)mm≥95 |
|
Lower-limit Granularity % |
< 0.315mm≤1.0 |
< 0.45mm≤1.0 |
- |
|
Effective Size mm |
0.40-0.70 |
≥0.50 |
0.35-0.50 |
|
Uniformity Coefficient |
≤1.60 |
≤1.40 |
|
|
Spherical after osmotic-affrition % |
≥95 |
||
|
Xpansion rate of type change% |
≤70 |
||
|
(from hydrogen type to sodium type) |
|||
|
Expansion ratio rate of type change% |
≥98 |
||
|
(from dissociated type to hydrochloric acid salt type) |
|||
4. Reference Indices for Operation:
1) PH Range: 4-14
2) Maximum operating temperature: Cl form≤100
℃
3) Swelling %: Na+→H+≤70
4) Operating capacity: 25
℃
≥l000mmol/l(wet)
5) Bed depth: 1.0-3.0m
6) Regenerat: NaOH:2-4%
7) Amount of regenerating solution:
HC1(4%) volume :resin volume=2-3:1
8) Flow rate of regenerating solution: 4-6m/h
9) Regenerating contact time : 30-50 minutes
10)Conventional well-flushing flow rate: 15~25 m/h
11)Conventional well-flushing time: about 30minutes
12)Operating flow rate:15-45m/h
5.Specification Corresponding to International One:
USA: Amberlite IRA-93-94; DOWS MWA-1/66
6. Package: Woven bag lined with plastic bag; net weight 25kg
