Quick Details
-
Input:
-
8 HD MI, 1 DVB-C/T/ISDB-Tb Tuner, 128IP
-
Output:
-
4*DVB-C/T; 4 IP MPTS;1 ASI Optional
-
Scrambling:
-
4 channels (DVB-C)
-
Multiplexing:
-
4 channels
-
Video encoding:
-
MPEG-4 AVC/H.264
-
Audio encoding:
-
MPEG-1 Layer 2, LC-AAC, HE-AAC, AC3 Pass
-
Management:
-
Web Management
-
Video Rate Control:
-
CBR/VBR
-

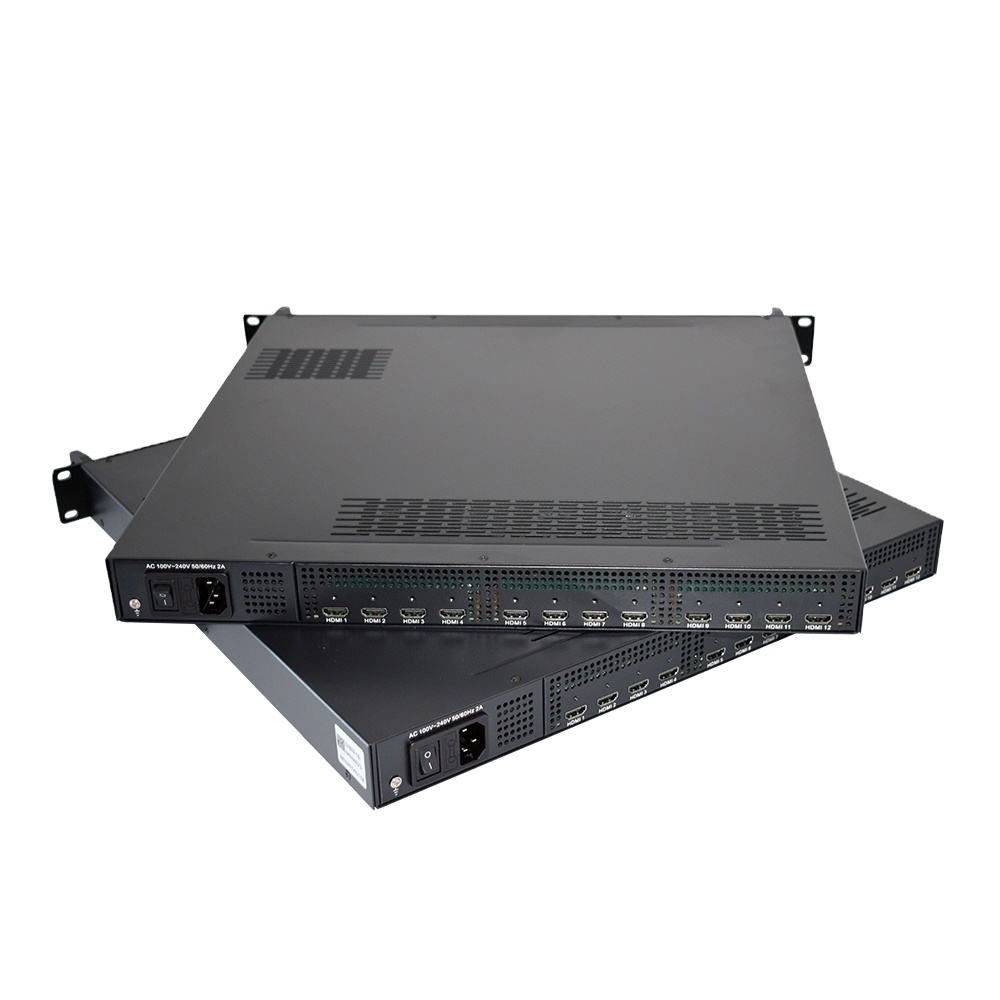

Product name:
-
encoder modulator
-
Application:
-
Hotel System
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Dibvision
-
Model Number:
-
MSM623-8
-
Input:
-
8 HD MI, 1 DVB-C/T/ISDB-Tb Tuner, 128IP
-
Output:
-
4*DVB-C/T; 4 IP MPTS;1 ASI Optional
-
Scrambling:
-
4 channels (DVB-C)
-
Multiplexing:
-
4 channels
-
Video encoding:
-
MPEG-4 AVC/H.264
-
Audio encoding:
-
MPEG-1 Layer 2, LC-AAC, HE-AAC, AC3 Pass
-
Management:
-
Web Management
-
Video Rate Control:
-
CBR/VBR
-
Product name:
-
encoder modulator
-
Application:
-
Hotel System
Features
1. Distribute 8 channels of HD content over RF (DVB-T/C) to an unlimited number of TVs
2. 1 DVB-C/T/ISDB-Tb tuner input for re-mux (scrambling function optional for DVB-C RF out version)
3. 4 MPTS IP over UDP/RTP as mirror of RF Channels
4. MPEG-4 AVC/H.264 Video encoding
5. MPEG1 Layer II, LC-AAC，HE-AAC audio encoding format and AC3 Pass Through
6. Audio gain adjustment supported
7. 4 DVB-C or DVB-T carrier out with each carrier channel processing maximum 32 IP from DATA input port
8. Selectable the Value of PCR PID same as Video PID
9. VBR and CBR mode
10. LCN (Logical Channel Number) support
11. DVB-C (EN300 429) and ITU-T J.83A/B supported
12. PSI/SI editing & inserting
13. PID Remapping & Filtering
14. Support PCR correct and PCR interval adjusting
15. Support LOGO, OSD and QR code insertion for every local channel (Language Supported:中文, English, العربية, руская, اردو...)
16. Easy-to-Use System Management via Web
17. Low Cost per channel - Breakthrough Price !
|
Inputs
|
|
|
|
|
8 HD MI input
|
|
|
|
1*DVB-C/T/ISDB-Tb tuner input for re-mux (scrambling function optional for DVB-C RF out version)
|
|
|
|
128 IP input over UDP and RTP
|
|
|
Video Processing
|
|
|
|
Input Resolution
|
1920×1080@60P, 1920×1080@60i, 1920×1080@50P, 1920×1080@50i,
1280×720@60P, 1280×720@50P, 720×576@50i, 720×480@60i |
|
|
Output Resolution
|
1920×1080@30P, 1920×1080@25P, 1280×720@30P, 1280×720@25P,
720×576@25P, 720×480@30P |
|
|
Encoding
|
MPEG-4 AVC/H.264
|
|
|
Bit-rate
|
1Mbps~13Mbps
|
|
|
Rate Control
|
CBR,VBR
|
|
|
Audio Processing
|
|
|
|
Encoding
|
MPEG-1 Layer 22, LC-AAC, HE-AAC and AC3 Pass Through
|
|
|
Sampling rate
|
48KHz
|
|
|
Resolution
|
24-bit
|
|
|
Bit-rate
|
LC-AAC bit-rate: 48/56/64/80/96/112/128/160/192/224/256/320/384 kbps
MPEG-1 Layer 2 bit-rate: 48/56/64/80/96/112/128/160/192/224/256/320/384 kbps
|
|
|
Audio Gain
|
0-255 Adjustable
|
|
|
Multiplexing
|
|
|
|
Maximum PID
|
180 input per channel PID remapping by automatically or manually)
|
|
|
PSI/SI
|
Generate PSI/ SI table automatically
|
|
|
Scrambling(Only for DVB-C)
|
|
|
|
Simul-Crypt CAS number
|
4
|
|
|
Standard
|
ETR289, ETSI 101 197, ETSI 103 197
|
|
|
Connection
|
Local/remote connection
|
|
|
General RF Modulation
|
|
|
|
Connector
|
F-Type, 75 Ω
|
|
|
Ports
|
2 RF ports per module
RF Monitor Level: 20 dB below RF output |
|
|
Output Return Loss
|
14 dB
|
|
|
RF frequency
|
50~960MHz, 1KHz step
|
|
|
Numbers of RF Channel
|
4*RF DVB-C/ DVB-T out (4 carriers combined output)
|
|
|
DVB-C Mode
|
|
|
|
QAM Encoding
|
EN300 429& ITU-T J.83 Annex A (DVB), Annex B
|
|
|
MER
|
≥40db
|
|
|
Bandwidth
|
6Mhz(Annex B) or 8 Mhz(Annex A)
|
|
|
Symbol Rate
|
5.0Msps~7.0Msps, 1ksps stepping
|
|
|
QAM Constellations
|
16/32/64/128/256QAM(Annex A)
64/256QAM(Annex B) |
|
|
RF output level
|
-25~ 0dBm (82~105 dBµV), 0.1db step
|
|
|
DVB-T Mode
|
|
|
|
Standard
|
EN300744
|
|
|
FFT mode
|
2K
|
|
|
Bandwidth
|
6Mhz, 7Mhz, 8Mhz
|
|
|
Constellation
|
QPSK, 16-QAM, 64-QAM
|
|
|
Guard Interval
|
1/4, 1/8, 1/16, 1/32
|
|
|
FEC
|
1/2, 2/3, 3/4, 5/6, 7/8
|
|
|
MER
|
≥42 dB
|
|
|
RF output level
|
-28~ -3dBm (79~104 dBµV), 0.1db step
|
|
|
Stream output
|
|
|
|
|
4*MPTS IP out Configurable mirroring per QAM
|
|
|
|
MPEG-TS Over UDP/RTP, 1*1000(GbE1 Port)
|
|
|
|
7x188 Bytes per TS packet
|
|
|
|
Filter Null Packet
|
|
|
|
Source TS select:Scrambled, No Scrambled
|
|
|
System function
|
|
|
|
|
Web Network management
|
|
|
|
English/Chinese language
|
|
|
|
Ethernet software upgrade
|
|
|
|
Save/Restore/Facture Set/Backup/Load Setting
|
|
|
Environment
|
|
|
|
Dimension(W×L×H)
|
482mm×410mm×44mm
|
|
|
Approx weight
|
8kg
|
|
|
Temperature
|
0~45℃(Operation); -20~80℃ (Storage)
|
|
|
Voltage range
|
100 to 120/200 to 240V AC ±10%; 50/60Hz
|
|
|
Power consumption
|
70W
|
|
