Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Hoyster
-
Dimensions(L*W*H):
-
800*700*1300mm
-
Weight:
-
490 KG
-
Certification:
-
CE
-
Station:
-
One Station
-
Power:
-
4.5KW
-
Printing area:
-
400*600mm
-
Application:
-
Screen Printing
-
Product name:
-
Screen Printing Press
-
Type:
-
Silk Screen Printing Machine
-
Printing color:
-
1 Colors
-
Keywords:
-
Silk Screen Printer Machine
-
Operation:
-
Easy Operation
-
Color:
-
Gray
Quick Details
-
Condition:
-
New
-
Color & Page:
-
single color
-
Voltage:
-
220V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Hoyster
-
Dimensions(L*W*H):
-
800*700*1300mm
-
Weight:
-
490 KG
-
Certification:
-
CE
-
Station:
-
One Station
-
Power:
-
4.5KW
-
Printing area:
-
400*600mm
-
Application:
-
Screen Printing
-
Product name:
-
Screen Printing Press
-
Type:
-
Silk Screen Printing Machine
-
Printing color:
-
1 Colors
-
Keywords:
-
Silk Screen Printer Machine
-
Operation:
-
Easy Operation
-
Color:
-
Gray

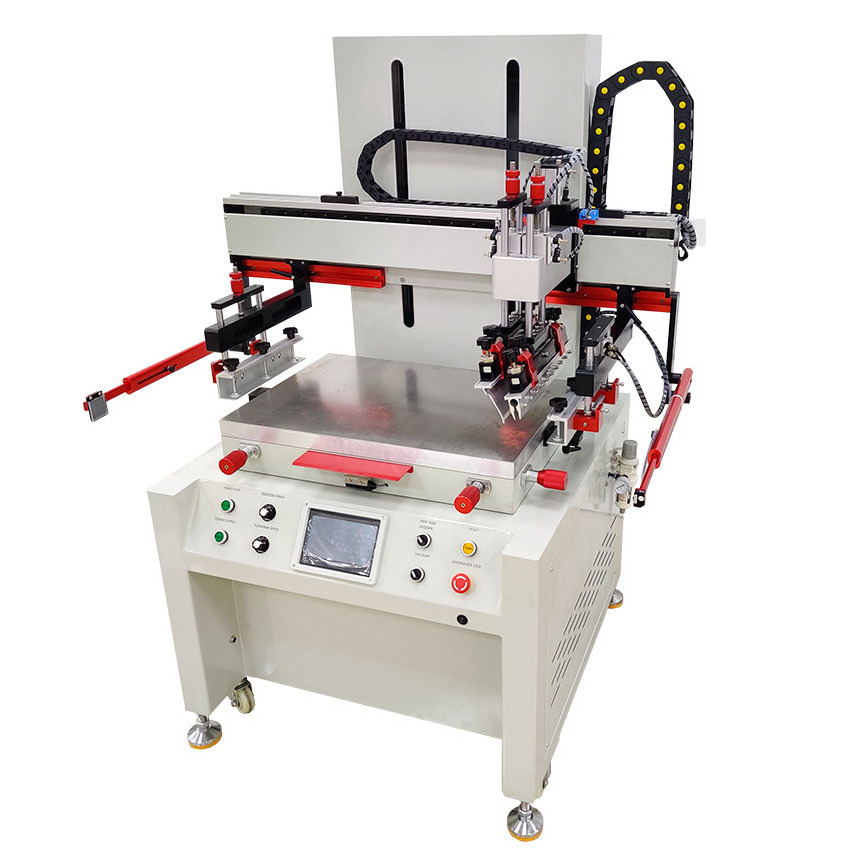

Products Description
Application：
The flat bed silk screen printing machine is suitable for printing some flat items which size is within 400*600 mm,such as paper,PVC sheet,plastic film,textile,keyboard,circuit board ,CD disk,plastic box ,ruler etc.
|
Technical parameter：
|
|
|
|
|
||||
|
1) Max.printing size
|
|
400*600 mm
|
|
|
||||
|
2) Max.printing speed
|
|
1000PCS/Hr
|
|
|
||||
|
3) Power
|
|
220V
|
|
|
||||
|
4) Air pressure
|
|
5-7bar
|
|
|
||||
|
5) Worktable size
|
|
500*700 mm
|
|
|
||||
|
6) Max.workpiece height:
|
|
50 mm
|
|
|
||||
|
7) Printing Color
|
|
single color
|
|
|
||||
|
8) Machine size
|
|
1100*900*1750mm
|
|
|
||||
|
9) Weight
|
|
250kg
|
|
|
||||
Function
：
1) PLC coordinating soft-touch panel compile programms
2) Auto 4-digit counter built-in
3) kinds of printing cycle designed by printing action, you can be free to choose according to your printing craftwork.
4) Airframe adopts coin alloy,and metal coating surface
5) Distyle vertical constructure, high precision, steady operation
6) Installing scraper constant pressure equipment
to make sure pressure is steady when printing
7) The angle of scraper and reclaim blade can be adjusted randomly
8) You can regulate work-table back and forth or right and left, and then fastening it
9) You can regulate screen frame back and forth, right and left or level orientation
10) Printing head can be liftuped, that is convenient to pick-and-place screen frame
11) Finished and high-strength hard work-table with even suctionhole and high vacsorb, that can make sure overprinting accurately.
12) Installing scramming device on work-table, in order to avoid injuring hands
13) The machine is running fastly,it is steady and low voice.
Details Images
Protective sensing device
Control panel,easy to operate,with sample operation
Vacuum worktable,for print metal sheet,paper sheet,film
Can install U-shape fixture,for print bags
