Quick Details
-
Weight (KG):
-
10000 KG
-
Power:
-
customizd
-
Dimension(L*W*H):
-
customizd
-
After-sales Service Provided:
-
Field maintenance and repair service
-
Usage:
-
Surface Cleaning Application
-
Abrator:
-
Shot Cleaning Equipment
-
Blast wheel:
-
4*11 Kw)
-
Blasting media:
-
Stainless Steel Shot
-
Dust collector:
-
Advanced Cartridge Filter
-
Product approve:
-
CE/ISO9001
-
MOTOR BRAND:
-
SIENEMS
-
Install:
-
Engineers Guide
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
dtjx
-
Marketing Type:
-
New Product
-
Weight (KG):
-
10000 KG
-
Power:
-
customizd
-
Dimension(L*W*H):
-
customizd
-
After-sales Service Provided:
-
Field maintenance and repair service
-
Usage:
-
Surface Cleaning Application
-
Abrator:
-
Shot Cleaning Equipment
-
Blast wheel:
-
4*11 Kw)
-
Blasting media:
-
Stainless Steel Shot
-
Dust collector:
-
Advanced Cartridge Filter
-
Product approve:
-
CE/ISO9001
-
MOTOR BRAND:
-
SIENEMS
-
Install:
-
Engineers Guide

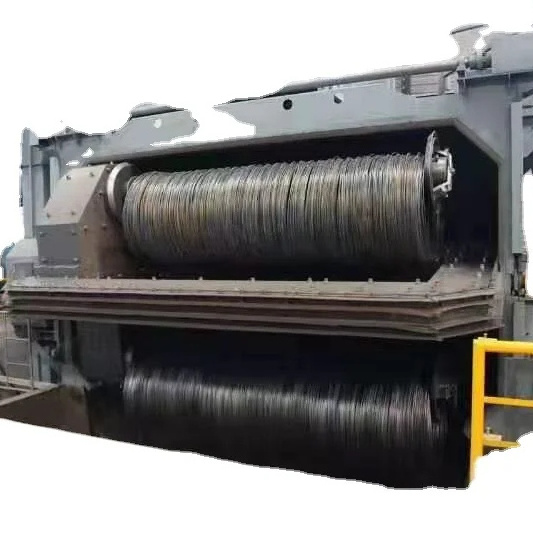

RG-CBM5500 COIL SHOT BLASTING MACHINE
Features:
High speed, high efficiency and low consumption
The full volume processing mode
High reliability and low maintenance
Alternative pickling
Technical indicators :
Material to be blasted: carbon structural steel, alloy structural steel, carbon tool steel, spring steel, bearing steel high-speed tool steel, stainless steel (austenitic, ferritic, martensitic), alloy tool steel.
Wire range diameter: 6.5 to 34 mm, smaller (6.5 mm) or bigger(34 mm) diameters are possible to be blasted as long as a sufficient spread can be done.
Coil outside diameter max : 1500 mm
Coil inside diameter min :750 mm
Length of coil arms: ~5500 mm
Coil weight diameter max
| Specification | 6.5-8 MM | 10-12 MM | 14 MM | 16 MM | 20 MM | 30 MM | 34 MM |
| Workpiece | Max KG. | Max KG. | Max KG. | Max KG. | Max KG. | Max KG. | Max KG. |
| Weight | 1800 | 2200 | 2500 | 2500 | 2500 | 2500 | 2500 |
other technical indicators :
| Model | Number | KW |
| Turbines | 8 | 18.5-30 Inverter variable speed adjustment |
| Coil Arms | 2 | 4 Inverter variable speed adjustment |
| Bottom Screw Conveyor | 2 | 7.5 |
| Top Screw Conveyor | 2 | 4 |
| Bucket elevator | 2 | 7.5 |
| Door Rotation | 1 | 7.5 Inverter variable speed adjustment |
| Dust Collector fan | 1 | 30 Inverter variable speed adjustment |
