Quick Details
-
Applicable Industries:
-
Industrial
-
Model Screw Diameter:
-
65-300mm
-
Application:
-
Injection Molding Machine
-
Payment Method:
-
100% T/T Advance
-
Port:
-
HongKong/Shenzhen
-
MOQ:
-
1/pc
-
Quality:
-
High Rank
-
Price:
-
Price Advantage
Quick Details
-
Place of Origin:
-
Guangdong, China, China
-
Brand Name:
-
JGH, JGH
-
Weight (KG):
-
6
-
Applicable Industries:
-
Industrial
-
Model Screw Diameter:
-
65-300mm
-
Application:
-
Injection Molding Machine
-
Payment Method:
-
100% T/T Advance
-
Port:
-
HongKong/Shenzhen
-
MOQ:
-
1/pc
-
Quality:
-
High Rank
-
Price:
-
Price Advantage
Products Description
|
Brand Name
|
JGH
|
|
|
|
|||
|
Supplier
|
China
|
|
|
|
|||
|
Category
|
Injection Molding Machinery Parts
|
|
|
|
|||
|
Surface Hardness
|
HV≥950
|
|
|
|
|||
|
Straightness
|
67-280mm
|
|
|
|
|||
|
Surfaceness
|
Ra ≤0.4um
|
|
|
|
|||
|
Material
|
Stainless Steel
|
|
|
|
|||
|
Scope of Application
|
Industrial
|
|
|
|
|||
|
Nitride Brittleness
|
Rubber Machine
|
|
|
|
|||
WE SELL

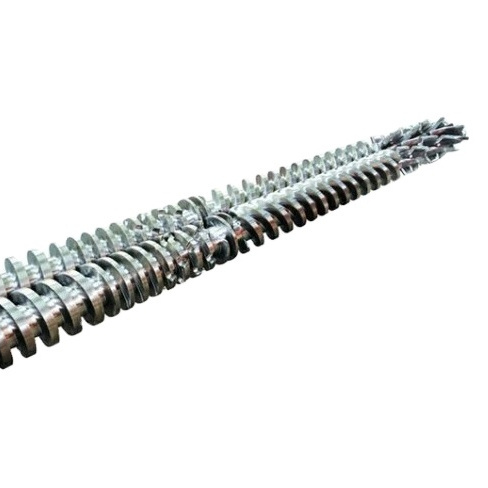

Nitriding screw, double alloy screw( A, B and C type), single or double screw, screw head, non-return valve, sealing resin ring, nozzle and flange, screw and barrel for different brands of injection molding machine, extruder and rubber machine.
Nitriding screw, double alloy screw( A, B and C type), single or double screw, screw head, non-return valve, sealing resin ring, nozzle and flange, screw and barrel for different brands of injection molding machine, extruder and rubber machine.
Brands of injection molding machine:
FANUC, HAITIAN, NIIGATA, KAWAGUCHI, MEIKI, Netstal, L.K, KraussMaffel, BORCHE, ENGEL, WELLTEC, etc.
Applicable Plastic:
A large amount of plastic can be used for screw and barrel of injection molding machine, such as PA, PP, PE, POM, PBT, ABS, PS, PVC, PEI, PC, PEEK, etc.
Guangdong Juguangheng Automation Equipment Co., Ltd provides customized screw, barrel and other products according customer's demand..
FANUC, HAITIAN, NIIGATA, KAWAGUCHI, MEIKI, Netstal, L.K, KraussMaffel, BORCHE, ENGEL, WELLTEC, etc.
Applicable Plastic:
A large amount of plastic can be used for screw and barrel of injection molding machine, such as PA, PP, PE, POM, PBT, ABS, PS, PVC, PEI, PC, PEEK, etc.
Guangdong Juguangheng Automation Equipment Co., Ltd provides customized screw, barrel and other products according customer's demand..
You may also like
Product Paramenters
|
Screw Diameter
|
Screw Length
|
Outside Diameter of Barrel Wall
|
Barrel Wall Length
|
|
∅14-∅16
|
450mm-650mm
|
∅65-∅75
|
450mm-650mm
|
|
∅18-∅22
|
450mm-650mm
|
∅65-∅75
|
450mm-650mm
|
|
∅24-∅28
|
450mm-700mm
|
∅65-∅88
|
450mm-700mm
|
|
∅24-∅28
|
650mm-650mm
|
∅90-∅98
|
650mm-820mm
|
|
∅30
|
850mm-900mm
|
∅85-∅98
|
750mm-820mm
|
|
∅30-∅32
|
1000mm-1200mm
|
∅98-∅108
|
950mm-1150mm
|
|
∅34
|
1000mm-1200mm
|
∅98-∅108
|
950mm-1150mm
|
|
∅36
|
850mm
|
∅110
|
950mm
|
|
∅36
|
1050mm-1200mm
|
∅110
|
1050mm-1250mm
|
|
∅38
|
950mm-1200mm
|
∅98-∅118
|
950mm-1150mm
|
|
∅40
|
1050mm-1250mm
|
∅105-∅118
|
1050mm-1200mm
|
|
∅42
|
1050mm-1250mm
|
∅105-∅118
|
1050mm-1200mm
|
|
∅44
|
1050mm-1250mm
|
∅105-∅118
|
1050mm-1200mm
|
|
∅46
|
1050mm-1250mm
|
∅105-∅118
|
1050mm-1200mm
|
|
∅48
|
1050mm-1250mm
|
∅105-∅118
|
1050mm-1200mm
|
|
Model
|
L/D
|
Output Capacity
(kg/h)
|
Screw Rotation Speed
(rpm)
|
Driving Motor
(kw)
|
Center Height
(mm)
|
|
JGH
|
20:1
|
3-5
|
10-60
|
1.1/1.5/2.2
|
1000-1400
|
|
JGH
|
25:1
|
5-8
|
10-60
|
2.2/3.0/4.0
|
1000-1400
|
|
JGH
|
25:1
|
5-10
|
10-60
|
2.2/3.0/4.0
|
1000-1400
|
|
JGH
|
25-36:1
|
10-120
|
10-150
|
5.5-22
|
1000-1400
|
|
JGH
|
25-36:1
|
60-300
|
20-150
|
22-75
|
1000
|
|
JGH
|
25-36:1
|
200-450
|
20-150
|
30-132
|
1000
|
|
JGH
|
25-36:1
|
180-600
|
20-110
|
30-185
|
1000-1100
|
|
JGH
|
25-36:1
|
320-1000
|
20-90
|
75-280
|
1000-1250
|
Manufacturing Technique
|
Technical Information
|
|
|
|
|||
|
Main Base Materials
|
1. 38CrMoAlA (SACM645)
|
Main Alloy Materials
|
1. Ni-based alloy/ Deloro alloy
|
|||
|
|
2. SKD-61(Special Tool Steel)
|
|
2.Tungsten carbide/Wolfram carbide
|
|||
|
|
3. 42CrMo(Ultrahigh Strength Steel)
|
|
3.NiCo-based alloy
|
|||
|
|
4. DC53(Cold Workdie Steel)
|
|
4.Fe-based alloy
|
|||
|
|
5. W6Mo5Cr4V2 (High-speed Tool Steel)
|
|
5. Co-based alloy
|
|||
|
Processing Technics
|
1.Heat treatment
|
Technical Parameters
|
Nitriding layer depth: 0.5-0.8mm
|
|||
|
|
2. Quenching
|
|
Nitrided hardness: 900-1000HV
|
|||
|
|
3. Nitriding treatment
|
|
Bimetallic layer depth: 3mm
|
|||
|
|
4. Bimetallic alloy welding for screw
|
|
Bimetallic hardness: 57~69HRC
|
|||
|
|
5. Bimetallic alloy centrifugal casting for barrel
|
|
Hard-chrome plating hardness after nitriding: ≥950 HV
|
|||
|
|
6. Hard-chrome electroplating
|
|
Chrome-plating layer depth: 0.03~0.09mm
|
|||
|
|
|
|
Surface roughness: Ra 0.4
|
|||
|
|
|
|
Linearity of screw: 0.015mm
|
|||
