Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LEVI
-
Model Number:
-
LV1200
-
Output Power:
-
1200W
-
Input:
-
110V/10A, 220V/6A
-
Warranty:
-
12 Months
-
Input Voltage:
-
AC 100~240V 50/60HZ
-
Output current:
-
48V 20a
-
certification:
-
CE,ROHS
Quick Details
-
Type:
-
PORTABLE
-
Use:
-
Standard Battery, scooter, Industrial, electric car, electr bike
-
Output:
-
48V 20a
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LEVI
-
Model Number:
-
LV1200
-
Output Power:
-
1200W
-
Input:
-
110V/10A, 220V/6A
-
Warranty:
-
12 Months
-
Input Voltage:
-
AC 100~240V 50/60HZ
-
Output current:
-
48V 20a
-
certification:
-
CE,ROHS

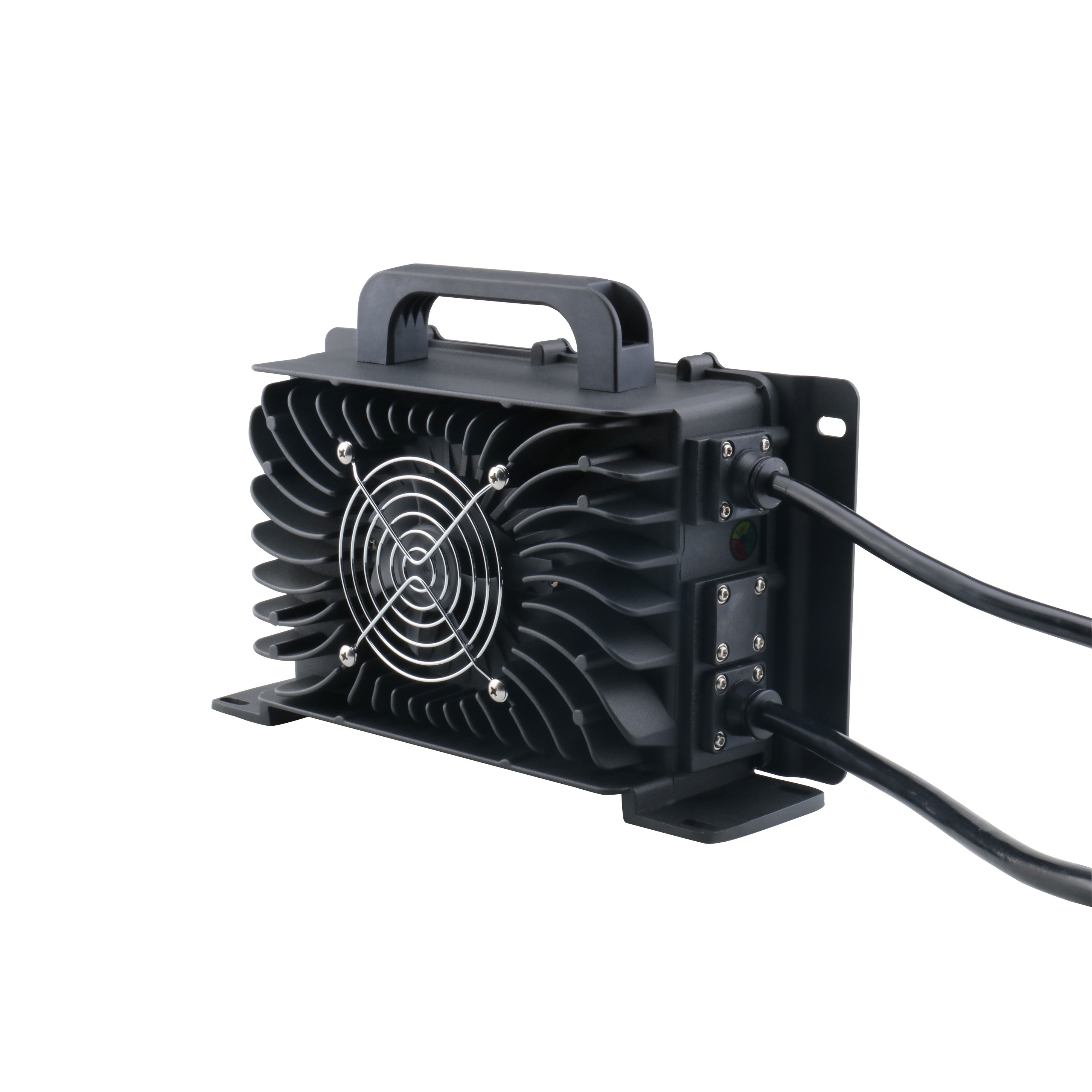

DL-1200W Series Battery Charger
· All aluminum case , black and silver optional
·High efficiency≥90%, Eco-friendly
·Silent cooling fan,good heat dissipation
·Voltage & current LED meter display
· Plastic rubber handle , easy to carry
·3 or 2 stage charging mode:cc cv(floating)
·Multi-functions protection: over voltage, over current, over
temperature,short circuit,reverse polarity etc.
·Two LED indicator lights:LED1 red-power on/charging;LED2
green-full charged
|
No. |
Spec |
Constant voltage |
Constant Current |
Conversion/Cut off |
Weight |
Size |
|||
|
Lead-acid |
Li-ion |
LiFePo4 |
(Max)A |
LA(A) |
Li(A) |
(Kg) |
(mm) |
||
|
1 |
A12 |
14.7V |
16.8V |
14.6V |
40 |
8.0 |
2.0 |
3.5 |
230*135*70 |
|
2 |
A24 |
29.4V |
29.4V |
29.2V |
30 |
6.0 |
1.5 |
||
|
3 |
A36 |
44.1V |
42.0V |
43.8V |
25 |
5.0 |
1.25 |
||
|
4 |
A48 |
58.8V |
54.6V |
58.4V |
20 |
4.0 |
1.0 |
||
|
5 |
A60 |
73.5V |
67.2V |
73.0V |
15 |
3.0 |
0.75 |
||
|
6 |
A72 |
88.2V |
84V |
87.6V |
12 |
2.4 |
0.6 |
||
|
*Cut-off point Li battery is 5% of CC, and it can be set between 3%-10% *All functions can be customized production(e. g. BMS communication, predict charge, Recharged regularly, Active power factor correction PFC) *Apply to: Electric car, electric golf cart Tourist electric cars
|
|||||||||
