Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Stone Bridge Hero
-
Model Number:
-
z208 z308 z408
-
Operating Current:
-
AC DC
-
Smoke::
-
no smoke
Quick Details
-
Material:
-
Cast Iron
-
Welding Current:
-
60-220A
-
Operating Temperature:
-
400
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Stone Bridge Hero
-
Model Number:
-
z208 z308 z408
-
Operating Current:
-
AC DC
-
Smoke::
-
no smoke
Specification
|
AWS EZC /Z208 2.5MM/3.2MM/4.0MM
|
PACKING : 1KG/BOX,10BOX/CARTON
|
|
AWS ENI-C1 /Z308 2.5MM/3.2MM/4.0MM
|
PACKING : 1KG/BOX,10BOX/CARTON
|
|
AWS ENIFe-C1 /Z408 2.5MM/ 3.2MM/4.0MM
|
PACKING : 1KG/BOX,10BOX/CARTON
|
|
AWS ENICu-B /Z5082.5MM/3.2MM/4.0MM
|
PACKING : 1KG/BOX,10BOX/CARTON
|
Packing & Delivery
:
USAGE
1. Chip off base metal completely at the repairing part.
2. There is a possibility that cracks spreads or makes holes at both ends of repairing part.
3. Keep the weld metal length less than 50mm(2inch) to disperse welding heat. Adopt back stepping stone or symmetry method by
turns.
4. The preheat temperatures vary in accordance with the size, kind and shape of the base metal. 150℃(302℉) is appropriate in
general.
1. Chip off base metal completely at the repairing part.
2. There is a possibility that cracks spreads or makes holes at both ends of repairing part.
3. Keep the weld metal length less than 50mm(2inch) to disperse welding heat. Adopt back stepping stone or symmetry method by
turns.
4. The preheat temperatures vary in accordance with the size, kind and shape of the base metal. 150℃(302℉) is appropriate in
general.
APPLICATION &CHARACTERISTICS ON USAGE
:
1.ENi-CI (99%NI) is a graphite type coated electrode, depositing nickel weld metal. Hardening of heat affected zone is small and machining of the welds is comparatively easy. Therefore it is suitable parts as well as common cast iron. ENi-CI ENI-C1 can be used for repairing cast iron and joining of various kinds of cast iron products such as cylinder covers, motor beds, casings and gears. Repairing of meehanite, alloy and malleable cast iron.

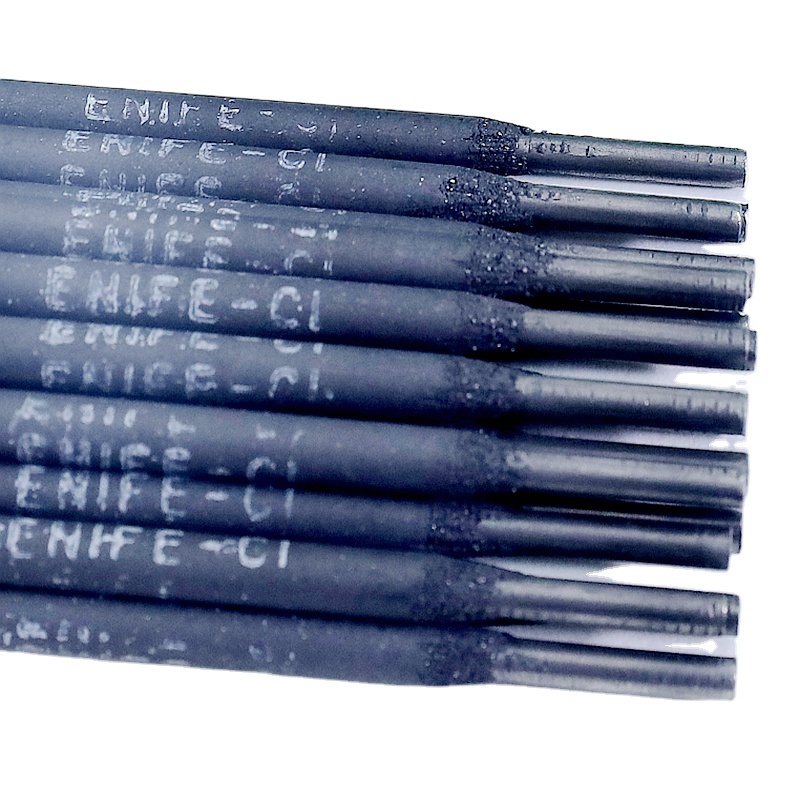

2.ENiFe-CI (55%NI)is a covered electrode with graphite type coating flux and 55% Ni-fe alloy core rod.
The hardening of the weld metal is less than S-FCF, and Crack resistibility is excellent.
Welding of normal grades of cast iron, such as gray, ductile and malleable irons.
Repairing of cast iron housings, blocks, machinery parts, frames.
