Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
3HE
-
Pulse Width:
-
0.1-20ms
-
Wavelength:
-
1064nm
-
Focal Spot Diameter:
-
0.05-50
-
Warranty:
-
12 Months
-
Weight (KG):
-
500 KG
-
Key word:
-
laser welding machine
-
Product name:
-
1000w 1500w automatic
-
Laser type:
-
fiber laser
-
Power Supply:
-
380V 10%
-
Cooling System:
-
Water Cooling System
-
Welding depth:
-
0.1 - 3.5mm
-
Laser wavelength:
-
1064nm
-
Pulse Frequency:
-
0-5000Hz
-
Observing System:
-
CCD
-
Processing material:
-
metal stainless steel products
Quick Details
-
Max. Output Power:
-
1000w
-
Usage:
-
Metal Welding
-
Laser Source Brand:
-
MAX
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
3HE
-
Pulse Width:
-
0.1-20ms
-
Wavelength:
-
1064nm
-
Focal Spot Diameter:
-
0.05-50
-
Warranty:
-
12 Months
-
Weight (KG):
-
500 KG
-
Key word:
-
laser welding machine
-
Product name:
-
1000w 1500w automatic
-
Laser type:
-
fiber laser
-
Power Supply:
-
380V 10%
-
Cooling System:
-
Water Cooling System
-
Welding depth:
-
0.1 - 3.5mm
-
Laser wavelength:
-
1064nm
-
Pulse Frequency:
-
0-5000Hz
-
Observing System:
-
CCD
-
Processing material:
-
metal stainless steel products

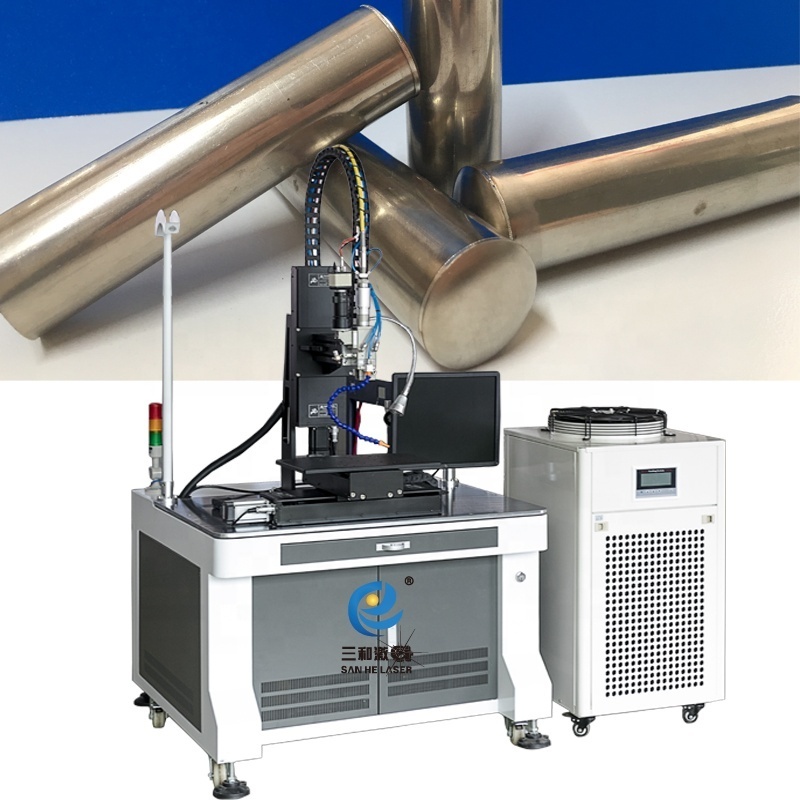

1000W 1500W continuous hand-held laser welding machine, with automatic wire feeding system
|
model |
3HE-MF 10 00W |
|
Laser Source Optical Parameters |
|
|
Laser source |
Raycus RFL-C 1000 |
|
Work Model |
Continuous |
|
Average Power(Pulse) |
450w |
|
Max.Power (W) |
10 00w |
|
Laser Wavelength(nm) |
1080± 5 |
|
Repetitive Rate(Hz) |
500 -5000 |
|
Pulse Width(ms) |
0.05- 0.6 |
|
Output Power Stability |
< 2% |
|
Right light |
Yes |
|
Repeat Position Precision |
|
|
Output Parameters |
|
|
Fiber Core Diameter(um) |
25/50/100 Optional |
|
BBP(mm. m rad) |
0.4,2.5 |
|
Electronic Control Characteristics |
|
|
Input Voltage |
200-240VAC/47-63Hz |
|
Control Model |
External RS232/AD |
|
Power Adjustment |
10%-100% |
|
Power Consumption (W) |
1200 |
|
Welding Parameters |
|
|
Welding Speed |
According to welding materials (adjustable) |
|
Welding Depth(mm) |
0.2- 3 mm(adjustable) |
|
Beam Range |
0.1-4.0mm |
|
Others |
|
|
Auxiliary Gas |
Argon |
|
Dimension |
W 450 *L 240 *H 580 mm |
|
Weight |
<50 |
|
Cooling |
Watering cooling |
|
Operating temperature ( ℃ ) |
10-40 |
