Quick Details
-
Luminous Efficacy(lm/w):
-
130
-
Input Voltage(V):
-
AC220V
-
Product Weight（kg）:
-
0.5
-
Luminous Intensity:
-
/
-
Luminous Flux(lm):
-
26000
-
Optical Attenuation(%):
-
3
-
Power Dissipation:
-
0.01
-
Viewing Angle(°):
-
90/ TYPE II, III.IV.V degree
-
Color Rendering Index(Ra):
-
70/80
-
Color Temperature:
-
1600K-6500K
-
Operating Temperature(℃):
-
-30 - 50
-
Storage Temperature(℃):
-
-30 - 60
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SunshineOpto
-
Lens Size:
-
283.3*181mm
-
Lens Angle:
-
90/TYPE III/TYPE IV/TYPE V
-
PCB size:
-
244X142mm
-
PCB circuit:
-
14 series 20 parallel
-
Kit:
-
led lens +silicon gasket + pcb welding leds
-
LED Light Source:
-
280pcs smd 3030 leds
Quick Details
-
Color Temperature(CCT):
-
3000K-6500K
-
Warranty(Year):
-
2-Year
-
Support Dimmer:
-
NO
-
Luminous Efficacy(lm/w):
-
130
-
Input Voltage(V):
-
AC220V
-
Product Weight（kg）:
-
0.5
-
Luminous Intensity:
-
/
-
Luminous Flux(lm):
-
26000
-
Optical Attenuation(%):
-
3
-
Power Dissipation:
-
0.01
-
Viewing Angle(°):
-
90/ TYPE II, III.IV.V degree
-
Color Rendering Index(Ra):
-
70/80
-
Color Temperature:
-
1600K-6500K
-
Operating Temperature(℃):
-
-30 - 50
-
Storage Temperature(℃):
-
-30 - 60
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SunshineOpto
-
Lens Size:
-
283.3*181mm
-
Lens Angle:
-
90/TYPE III/TYPE IV/TYPE V
-
PCB size:
-
244X142mm
-
PCB circuit:
-
14 series 20 parallel
-
Kit:
-
led lens +silicon gasket + pcb welding leds
-
LED Light Source:
-
280pcs smd 3030 leds
Product Description
|

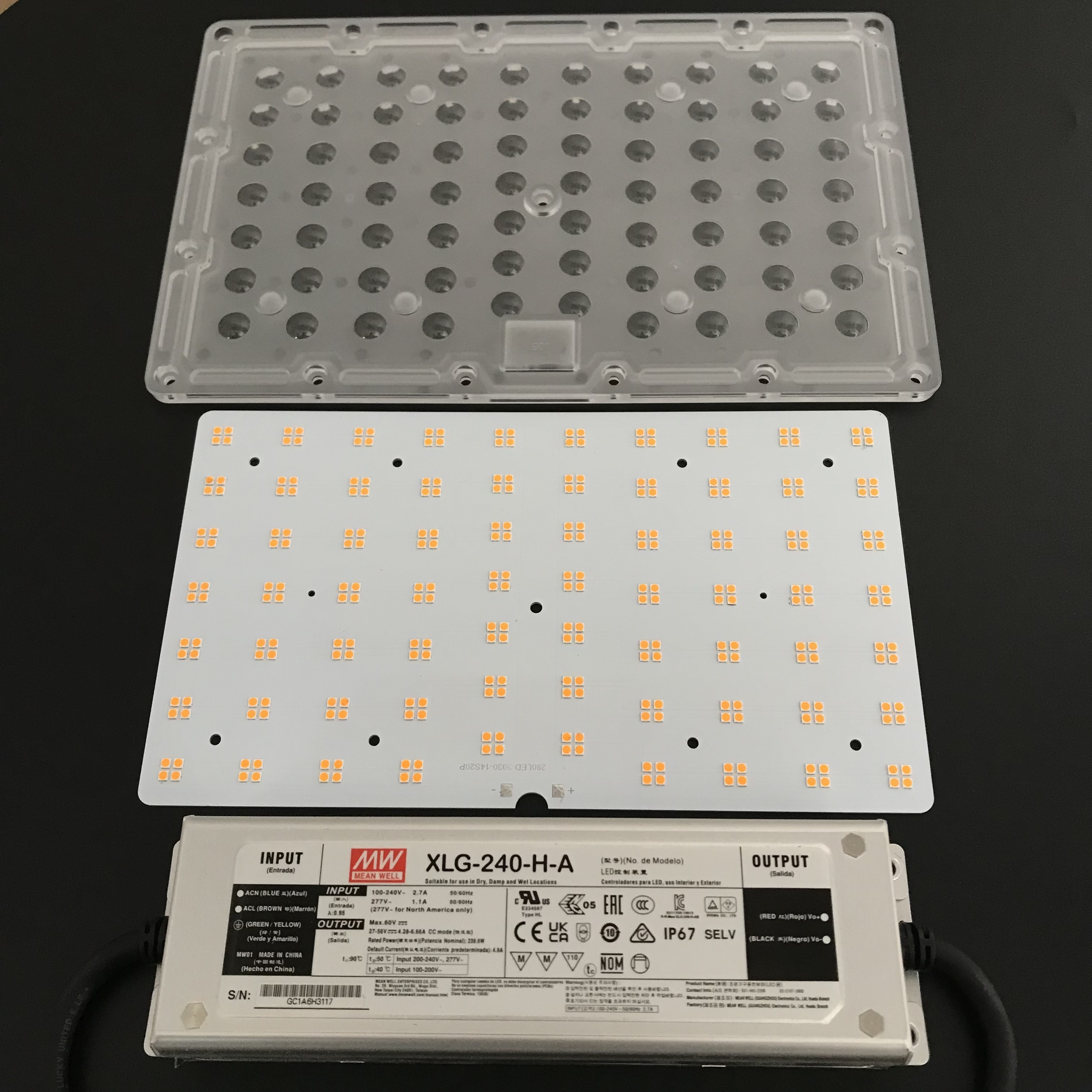

MODEL NO.:
|
SUN-LD70H1-4X3030
|
|
KITS :
|
LED LENS, LED BOARD
|
|
LENS SIZE:
|
283.3X181mm
|
|
LENS ANGLE:
|
90/TYPE III/TYPE IV/TYPE V
|
|
PCB SIZE:
|
244X142mm
|
|
PCB Circuit:
|
14 series 20 parallel
|
|
MATCH LEDS:
|
280pcs smd 3030 leds, CCT 1600K-6500K for choose
|
Feature:
1, LED LENS have
90/TYPE III/TYPE IV/TYPE V degree to match your difference lamp application.
2, Economical smd 3030 leds, but high brightness, luminous efficiency can support 130lm/watt.
3, We can also provide the match heat sink and led driver.
Product details
We provide the led modules with separate parts, If you need led module assembly services, we can also provide, please contact us for more details.
