Quick Details
-
Customized support:
-
Size, Color
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
LISUN
-
Model Number:
-
LMS-7000
-
Focal Length:
-
Contat us
-
Wavelength Range:
-
200nm-1050nm
-
Product name:
-
portable spectroradiometer uvc integrating sphere system for led
-
Disply Type:
-
Digtal only
-
Supply Voltage:
-
110-220 V
-
Testing lamp:
-
CFL, LED
-
spectral range wavelength:
-
200nm-1050nm UV-VIS-nIR
-
Correlated Color Temperature CCT:
-
1000K~100000K
-
Color Rendering Index Range:
-
0~100.0
-
Temperature measure range(In sphere)::
-
-10°C~100°C
-
Accuracy:
-
±0.2nm
-
MOQ:
-
1 Set
Quick Details
-
Warranty:
-
2 Years
-
Size:
-
48*50*52cm
-
Weight:
-
22KG
-
Customized support:
-
Size, Color
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
LISUN
-
Model Number:
-
LMS-7000
-
Focal Length:
-
Contat us
-
Wavelength Range:
-
200nm-1050nm
-
Product name:
-
portable spectroradiometer uvc integrating sphere system for led
-
Disply Type:
-
Digtal only
-
Supply Voltage:
-
110-220 V
-
Testing lamp:
-
CFL, LED
-
spectral range wavelength:
-
200nm-1050nm UV-VIS-nIR
-
Correlated Color Temperature CCT:
-
1000K~100000K
-
Color Rendering Index Range:
-
0~100.0
-
Temperature measure range(In sphere)::
-
-10°C~100°C
-
Accuracy:
-
±0.2nm
-
MOQ:
-
1 Set
Please contact us first before you place order.

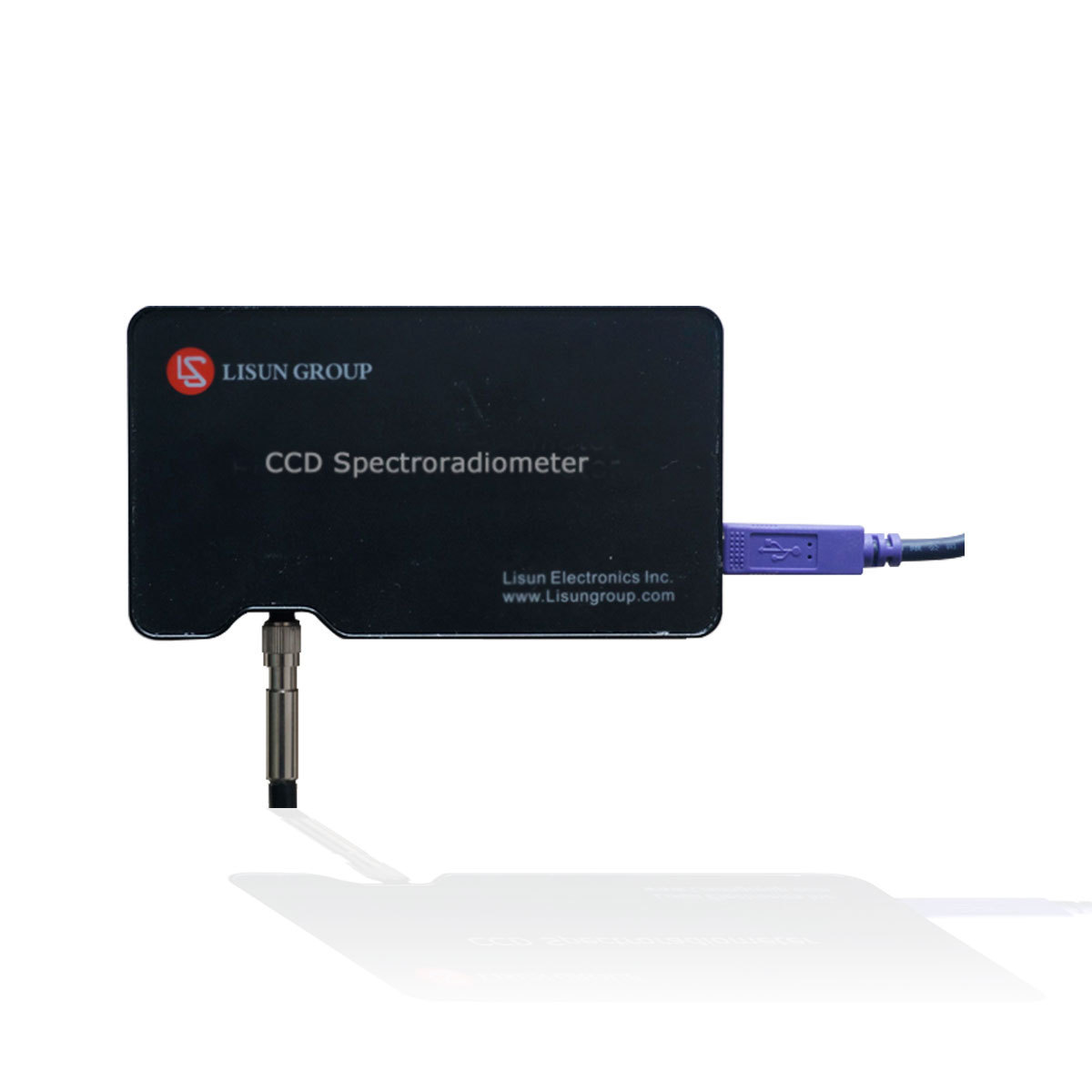

Lisun LMS-7000 spectrometer work with a small size integrating sphere is applied with TOSHIBA TCD1304DG linear array CCD detector, measurement speed is very quick and cost-saving.
• The following wavelength range is with 0.8nm FWHM:
| LMS-7000UV | LMS-7000UV-VIS | LMS-7000VIS | LMS-7000VIS-NIR | LMS-7000UV-VIS-NIR |
| 200~400nm | 200~800nm | 380~800nm | 380~1050nm | 200~1050nm |
• Integrating time is 1ms to 60s
• CCD Detector is 3648pix which size is 8μm×200mμm
• SNR (Signal to Noise Ratio) is 1000: 1 (Full range). A/D is 16bit
• Communicate with PC by USB2.0. The software has a rich re-develop platform which can be run in WinXP and Win7.
• Optical port is SMA905
Typical Application:
The LMS-7000 is for LED Color & Photo measure. It works with a small size
integrating sphere
and standard lamp as a test system:
Click Here
. This system can do the following test.
Measurement:
Colorimetric: Chromaticity Coordinate (x, y) and (u, v), Relative Spectral Power Distribution P(λ), Correlated Color Temperature (Tc), Color Rendering Index (Ra, R1 to R14), Color Difference, Dominant Wavelength, Peak Wavelength, Half-bandwidth, Spectral Purity
Photometric: Luminous Flux
Specification:
• Spectral Resolution: ±0.2nm
• Reproducibility: ±0.5nm
• Accuracy of Chromaticity Coordinate (Δx, Δy): ±0.003
• Correlated Color Temperature CCT: 1, 500K ~ 25, 000K (±3%)
• High spectral resolution, High sensitivity and excellent reliability
Other Application:
The LMS-7000 works with other accessories, it can be used to do test and analysis in the following field and area. Please contact Lisun Group sales dept for the detail solution and Price.
