Leisuwash SG Automatic Car Wash Equipment

Overview

Leisuwash SG Car Wash Equipment the Revorlution of Car Wash Industry, Washing Cleaning is King !

The development of the Leisuwash SG had one principle: a brushless machine should still deliver a great wash result ! The combined chemical applicator and high pressure bar do make this possible. It keeps an even distance to the car so that the chemicals can reach all parts of the vehicle in the same concentration. The combination of different chemicals will soften up even persistent dirt and the contouring high pressure system will clean it off easily.

Leisuwash SG Contour-following Pre-soak Application and Super High pressure Rinse

In several stages two presoak chemicals are applied to the vehicle to soften up any crusted dirt, with our contouring application system the chemicals will be evenly applied to all areas of the car. It will automatically detect and identify all types of vehicles, contour following the car body at accurately 35cm distance, water is alternately supplied from horizontal arm or from vertical arm, up to 100 bar high pressure water with 15 nozzles could easily flushing away the dirt. Horizontal arm could go to really bottom and makes perfect cleaning at vehicle head and tail.

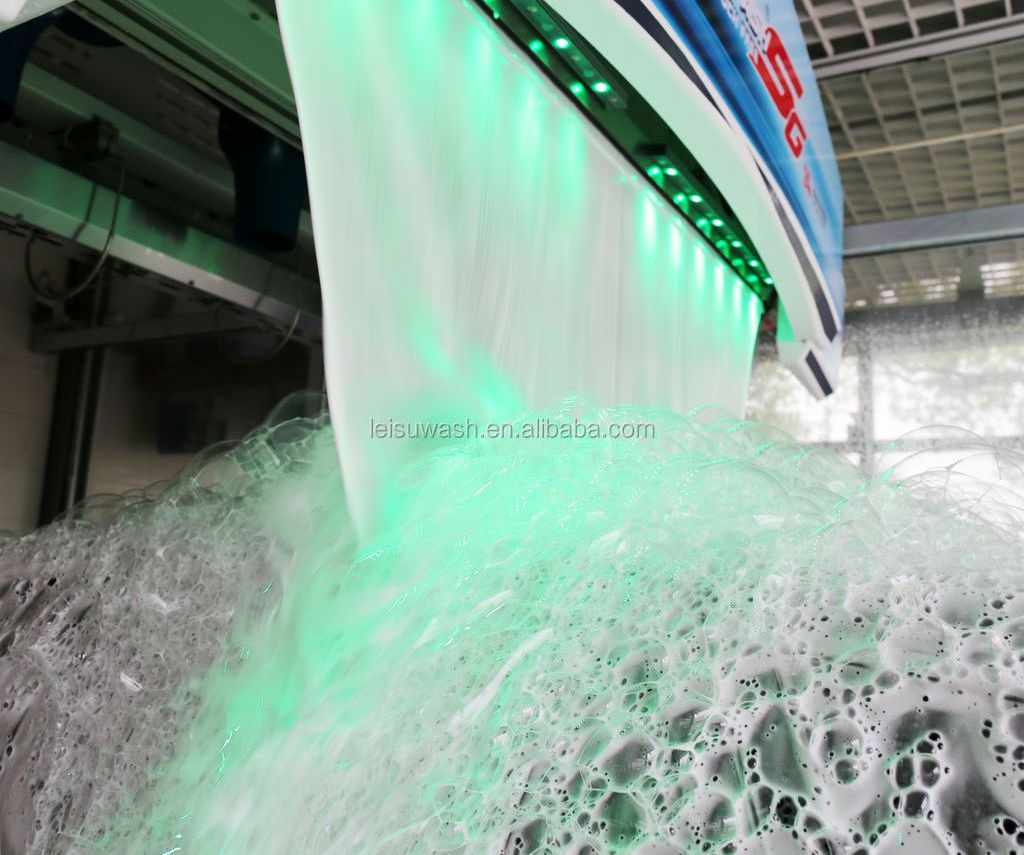

Leisuwash SG OverGlow Hi-Gloss Lava Foam System

Bright active agent Biodegradation and can improve the decontamination effect, making the paint surface more beautiful and brighter. Fantastic colorful LED light will attract drivers off steet and onto your wash bay.

Leisuwash SG High Pressure Side Wash with Duel Arm

German P+F ultrasonic sensor detection system ensure 35 cm  precision washing distance on both sides, water is alternately supplied from horizontal arm or from vertical arm, up to 100bar flushing pressure with 9 powerful USA made jets at both sides, can effectively cleans the sides and sill areas of the vehicle.

Leisuwash SG Spot Free Reverse Osmosis Water Rinse

Final rinse with reverse osmosis water can perform a spot free car wash, the crystal coating wax can be completely absorbed on the surface of the car body, with superior protection of car paint, and features anti-acid rain, pollution, UV erosion.

Leisuwash SG Intergrated Air Drying System

Following the Leisuwash philosophy there is no great car wash without a great drying system. Leisuwash SG configuring three 5.5kw and one 4kw Siemens motors embedded in the washing machine, control the airflow by four cylindrical outlet, the first task is to split a bunch of wind air, reducing wind drag subsequent to follow airflow to dry the surface of the car body, complete drying the car within 50 seconds.

Leisuwash SG 24 hours Self-Service Online Paying

Through the online payment with voice guidance system can achieve 24-hours self service car wash. In China people use WeChat or Alipay online paying, overseas customers can adpot local payment system work together with Leisuwash systems.

Leisuwash SG Car Wash Equipment 3D Drawing

Leisuwash SG Automatic Car Wash System parameters

Leisuwash SG Car Wash System Configuration

Shipment

FAQ:

1. What's the wash bay land dimensions required for Leisuwash installation ? ( Length×width×height )

Leibao 360: 7500×3800×3350mm

Leibao 350: 7000×3300×3000mm

Sword X1: 6500×3300×3000mm

2. What's time cost for complete fine wash of Leibao 360 ?

Leibao 360 running one circle spend 28 seconds, complete fine wash with high pressure water spray, wax, foam and air drying totally cost about 5 mins.

3. How about the air drying result ?

Uses design of air fluid mechanics principle to achieve long-distance high-pressure air cylinder, can reach 90% drying result, the stability with safety are much more better than the profiling air drying in brush wash machine.

4. What's the cost for wash one car ?

For example in our city Hangzhou, water with electricity cost for one car is about 1.5 RMB, chemicals cost about 1 RMB, total 2.5 RMB equals USD0.45

5. What's the difference between Leibao 350 and 360 and Sowrd X1 ?

Leibao 350 is idea for fast car washing, the standard 350 machine doesn't have polish shampoo, water wax and air dry functions which available for 360, only high pressure water with pre-soak chemicals, meanwhile, the machine size is bit smaller than 360, Leibao 360 can wash some big size car which 350 may can not wash it. Sword X1 have similar functions with Leibao 350, but with different structure with more competitive price to provide customer a lower operating cost.

6. What size cars the Leisuwash can apply for ? ( Length×width×height )

Leibao 360 maximum car wash size: 5900×2900×2050mm

Leibao 350 maximum car wash size: 5600×2600×2050mm

Sword X1 maximum car wash size: 5500×2600×2000mm

7. What's power supply required for running Leisuwash ?

Leisuwash car wash machines require 3 phase industry power supply, in China the standard is 380V/50Hz, if customer require different voltage or frequency, we have to customize motors from Siemens company, and change accordingly fans, low-voltage electrical cables, control units, etc.

8. How to make installation and after sale service for Leisuwash?

* If there’s an exclusive distributor available in your region, you need to buy from distributor and distributor will support your installation, training and after sale service.

* If a distributor can’t be found in your region, we can dispatch technician to support your installation and training, but the traveling expense should be on customer’s account, this will include visa cost, air tickets cost, hotel with restaurant cost, and customer need to pay for technician salary USD100/day.

* Customer is possible to install the machine by themselves, we will have detailed installation and maintenance manual send together with machine.

9. How to become a distributor ?

Leisuwash marketing strategy is establish distributors at each country. ( some big countries will established by regions )

* We don't have special condition for a conventional distributor without exclusive right.

* If you want to apply for exclusive dealership in your country or region, the first step you need to purchase a demo machine to show customers there, and we need to make an agreement with a yearly MOQ.

10. What need to be prepared before machine installation ?

* 3 phase industry power supply, 25Kw.

* Water supply, with a water tank. ( 2000 liters )

* Air compressor with air volume more than 0.67m³/min, could provide stable air pressure more than 0.8Mpa.

* Floor cement thickness need to be more than 20cm, if not enough then need to make six concrete columns for mounting support frames, floor horizontal error less than 3cm.

* Scaffold 2 pcs.

* Electric Hammer 1 pc, configurated 10, 14, 16 drill each one piece.

* Electric Welder 1 pc.

* Polisher 1 pc.

* Infrared Level 1 pc.

* Rough twine 10 meters.

* Hand Electric Drill 1 pc.

11. What's the warranty of Leisuwash ?

We offer 3 years extended warranty for complete machine, all spare parts included, within warranty period, if any parts break down, we will compensate new parts at free charge, but warranty doesn’t cover courier expense. Normally we will ask customers keep some spare parts in stock for machine maintenance, and the compensation spare parts will be sent together with next shipment or through a cheaper way but not by DHL.

Meanwhile, warranty is not valid in any of below situation:

* Human damage or operate the machine not follow instruction or under abnormal circumstance.

* Damage due to force majeure, such as wars, floods, earthquakes, lightning, abnormal voltage.

12. What's shipping volume of Leisuwash ?

* Leibao 360: Polywood case for main machine: 3660×1410×1255mm, Polywood case for water pump system: 1350×890×640mm, Polywood case for mixing system: 920×545×610mm, Rails: 2pcs ( 7.5 meters ), Frames: 13pcs, total shipping weight about 2600kgs, total shipping volume about 11 CBM.

* Leibao 350: Polywood case for main machine: 3160×1265×1255mm, Polywood case for water pump system: 1330×775×590mm, Rails: 2pcs ( 7.0 meters ), Frames: 13pcs, total shipping weight about 1500kgs, total shipping volume about 9 CBM.

Because of the 7.5 meters rail is longer than 20'Ft container, so our machine need to be shipped by 40'Ft container.

13. How to make transportation and how much of it ?

We will deliver containers to destination port by boat, the shipping terms can be EXW, FOB or CIF, the average shipping cost for one machine around USD500~1000 depends on how far the destination port from us. ( dispatching port Ningbo or Shanghai )

14. What is leading time of Leisuwash ?

If customer require same as China standard three phase industry voltage 380V/50Hz, we can provide fast delivery within 7~10 days, if different with China standard, the delivery schudule will prolong 30 days.

15. What's the harmonization system code of the car wash system ?

HS code: 8424899990

Leisuwash Service and Maintenance

1. The service and maintenance of Leisuwash system should be done by specialist technician, Cut off power supply when machine under service. Factory setting management code is 8888, it has permissions to modify the parameters, view vehicle wash quantities and change the password. Default password is 0 for operating the wash system, it can be changed to others like 12345, then the operator need enter into management center firstly, type in password 12345 then can start the operation.

2. Keep the main control box and touch screen in drying circumstance, it’s not allowed to touch these devices with wet hands, keep chemical mixing box with water pump box at drying circumstance as well. Before turn on the power supply, make sure the main control box voltage display stability and consistency.

3. Service and maintain wash system regularly, regularly cleaning machine surface, remove dirt on sensors, remove water in drive control box. Cleaning water tank when it becoming dirty, especially inlet filter of water pipe. It’s strictly prohibited to start rinse when water tank lack of water, use chassis to exhaust air firstly, never exhaust air with “ L “ arm rinse.

4. Exhaust water in pipes and tank during car wash equipment idle time, and when temperature under zero degree, must close inlet valve of chemical mixing system before shutdown the machine, use one key drain function to exhaust liquid in machine pipes, and open the discharge valve, exhaust water to prevent freezing. Don’t start machine once freezing, otherwise will break the water pump and motor.

5. Add wash chemicals in-time, it will can not spray out the chemicals if air go inside the hose, prevent impurities fall into washing liquid bucket and water tank, otherwise may cause stuck inside the chemical mixing box.

6. Air compressor need to install oil-water separator, exhaust water in compressor every 15 days, the air supply for wash system can not contain a lot of water and oil, otherwise will cause lack of air during chemical spraying, It is strictly forbidden to directly use heavy alkaline water (PH value> 8) or high salty water.

7. Inspect water pump and pump motor belt every 30 days, tension belt if belt fluctuate too large, ensure parallelism during belt tensioning. Cleaning water pump filter regularly. Replace oil in water pump regularly( every 5000 cars ), or when the oil is dirty . Oil volume more than half but not full, Taiwan Wuli WH-10120 pump use No 30, 40 or 68 engine oil( 2.36L ), German Pinfl pump use 220 Shell gear oil ( 3.3 L )

8. Check synchronous belts every 30 days, immediately tighten it if happened deviation and loose phenomenon, otherwise machine will jump with grinding noise.

9. Check terminals inside Electrical cabinet every 30 days, especially terminals for water pump and air fan power line, and terminals in drive control box ( because it walking every day ), tighten it if any loose. This can ensure a stable performance of electricity system.

10. Inspect frame screws and rail fixing screws every 90 days, Check the walking wheels every half year.
