Quick Details
-
Weight:
-
50KG
-
Year:
-
2024
-
Refrigerant:
-
R404a
-
Product name:
-
HQHD-16K
-
Name:
-
chiller unit
-
Application:
-
Refrigeration Parts
-
Compressor:
-
Electric Compressor
-
Compressor brand:
-
BOYARD
-
Compressor type:
-
Hermetic Rotary Compressor
-
Product Type:
-
refrigerated standby electric unit truck
-
Function:
-
Frozen Refrigeration Unit
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
HQHD-16K
-
Voltage:
-
220-240V, 220V/50Hz
-
Weight:
-
50KG
-
Year:
-
2024
-
Refrigerant:
-
R404a
-
Product name:
-
HQHD-16K
-
Name:
-
chiller unit
-
Application:
-
Refrigeration Parts
-
Compressor:
-
Electric Compressor
-
Compressor brand:
-
BOYARD
-
Compressor type:
-
Hermetic Rotary Compressor
-
Product Type:
-
refrigerated standby electric unit truck
-
Function:
-
Frozen Refrigeration Unit
Product Description

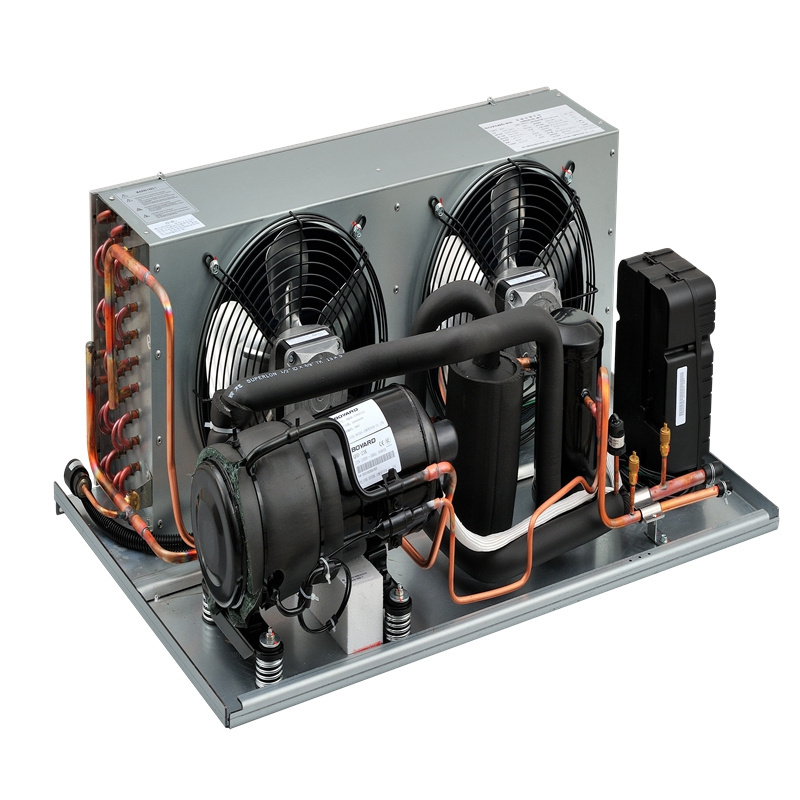

Horizontal Condensing unit
Refrigerant: R404A
Power: 220V~240V/50HZ
Capacity: 0.75 HP~3 HP
Evaporating temperature: from -5 degree C to -40 degree C
Models:
HQHD-13K 0.75 HP
HQHD-16K 1.00 HP
HQHD-23K 1.50 HP
HQHD-30K 2.00 HP
HQHD-36K 2.50 HP
HQSD-456K 3.00 HP
Refrigerant: R404A
Power: 220V~240V/50HZ
Capacity: 0.75 HP~3 HP
Evaporating temperature: from -5 degree C to -40 degree C
Models:
HQHD-13K 0.75 HP
HQHD-16K 1.00 HP
HQHD-23K 1.50 HP
HQHD-30K 2.00 HP
HQHD-36K 2.50 HP
HQSD-456K 3.00 HP
Detailed Images
Size Information
|
HP
|
|
|
0.5
|
0.75
|
1
|
1.5
|
2
|
2.5
|
3
|
||||||||
|
MODEL
|
|
|
HDHL-047KA
|
HQHD-13K
|
HQHD-16K
|
HQHD-23K
|
HQHD-30K
|
HQHD-36K
|
HQSD-456K
|
||||||||
|
NOMINAL INPUT(W)①
|
|
|
470
|
720
|
900
|
1260
|
1470
|
1700
|
2150
|
||||||||
|
POWER SUPPLY
|
|
|
1PH 220V-240V/50Hz
|
|
|
|
|
|
|
||||||||
|
REFRIGERANT
|
|
|
R404A
|
|
|
|
|
|
|
||||||||
|
REFRIGERANT MAX.(KG)
|
|
|
0.8
|
1.2
|
1.5
|
2.0
|
2.5
|
2.5
|
3.5
|
||||||||
|
START-UP CURRENT (A)
|
|
|
16
|
20
|
27
|
38
|
42
|
50
|
65
|
||||||||
|
MAX. RUNNING CURRENT (A)②
|
|
|
3.5
|
4.5
|
6.0
|
8.2
|
10.0
|
11.0
|
13.5
|
||||||||
|
EVAP. TEMP. RANGE (°C)
|
|
|
-40 ~ -5
|
|
|
|
|
|
|
||||||||
|
AMBIENT TEMP. (°C)
|
|
|
0 ~ 43
|
|
|
|
|
|
|
||||||||
|
COMPRESSOR (MODEL)
|
|
|
JHD092KS
|
QHD-13K
|
QHD-16K
|
QHD-23K
|
QHD-30K
|
QHD-36K
|
THSD-456K
|
||||||||
|
CONDENSER
|
STYLE
|
|
4Row 5Ring
|
3Row 3Ring
|
4Row 4Ring
|
5Row 5Ring
|
5Row 5Ring
|
5Row 5Ring
|
5Row 5Ring
|
||||||||
|
|
FAN MOTOR
|
DIA.QTY
(mm)
|
Φ230*2
10W*2 |
Φ230*2
10W*2
|
Φ230*2
10W*2
|
Φ230*2
10W*2 |
Φ230*3
16W*3 |
Φ230*3
16W*3 |
Φ230*4
16W*4 |
||||||||
|
|
|
AIR FLOW (m3/hr)
|
680*2
|
680*2
|
820*2
|
820*2
|
820*3
|
820*3
|
820*4
|
||||||||
|
PIPE (mm)
|
GAS INLET DIAM
|
|
Φ12.7(1/2")
|
|
|
|
Φ15.88(5/8")
|
|
|
||||||||
|
|
LIQUID OUTLET
|
|
Φ15.88
(5/8")
|
Φ9.53(3/8″)
|
|
|
|
|
|
||||||||
|
OUT DIMENSION
|
LENGTH (mm)
|
|
580
|
640
|
680
|
790
|
940
|
1145
|
1180
|
||||||||
|
|
WIDTH (mm)
|
|
480
|
485
|
485
|
520
|
520
|
520
|
520
|
||||||||
|
|
HEIGHT (mm)
|
|
245
|
275
|
275
|
275
|
275
|
275
|
275
|
||||||||
|
WEIGHT(Kg)
|
|
|
28
|
34
|
35
|
41.3
|
50
|
53
|
59
|
||||||||
|
REFRIGERATION CAPACITY
|
EVAP. TEMP.(°C)
|
|
REFRIGERATION CAPACITY: W
CONDENSING TEMP.: 45°C AMBIENT TEMP.: 32°C
|
|
|
|
|
|
|
||||||||
|
|
-40
|
|
293
|
390
|
515
|
658
|
929
|
968
|
1102
|
||||||||
|
|
-35
|
|
353
|
506
|
670
|
854
|
1166
|
1241
|
1415
|
||||||||
|
|
-30
|
|
478
|
625
|
776
|
959
|
1396
|
1571
|
1791
|
||||||||
|
|
-25
|
|
569
|
755
|
983
|
1211
|
1703
|
1982
|
2258
|
||||||||
|
|
-20
|
|
673
|
921
|
1169
|
1463
|
1925
|
2361
|
2694
|
||||||||
|
|
-15
|
|
783
|
1107
|
1393
|
1739
|
2283
|
2709
|
3088
|
||||||||
|
|
-10
|
|
933
|
1385
|
1675
|
2214
|
2711
|
3274
|
3732
|
||||||||
|
|
-5
|
|
1135
|
1647
|
1911
|
2585
|
3027
|
3870
|
4427
|
||||||||
|
WIRING CAPACITY
|
LEAKAGE PROTECTOR
|
RATED CURRENT(A)
|
10
|
10
|
15
|
20
|
20
|
20
|
20
|
||||||||
|
|
|
LEAK CURRENT (MA)
|
30
|
30
|
30
|
30
|
30
|
30
|
30
|
||||||||
|
|
DIAMETER (mm²)
|
IN 10m
|
2.0
|
2.0
|
2.0
|
2.0
|
4.0
|
4.0
|
4.0
|
||||||||
|
|
|
IN 20m
|
2.0
|
2.0
|
2.5
|
2.5
|
6.0
|
6.0
|
6.0
|
||||||||
|
|
|
IN 30m
|
2.0
|
2.0
|
2.5
|
2.5
|
6.0
|
6.0
|
6.0
|
||||||||
Packing&Shipping
Company Introduction
Head office & plant
New plant
Be launched in 2018, floor space of 110 bhou, building area of 40000m², more than 100 employees. With modern standard workshop, advanced intelligent equipment and mature production process, with capable of producing 250,000 condensing units annually. Complete quality and environmental management system has been established.
Compressor extension product design, manufacturing, sales, services, products are widely used in the supermarket refrigerator, logistics cold chain, cold storage, liquid cooling, battery heat management and other different application areas, to provide customers with fixed refrigeration field solutions suppliers.
FAQ
Q: Why choose Horizontal condensing unit?
Horizontal condensing unit is more compact, providing more effective volume in the showcase.
Q: What’s type of compressor of the condensing unit?
Q: Can we use this condensing unit frozen room -22°C?
Yes. The evaporating temperature of condensing unit is from -5 degree to -40 degrees. It can use in frozen room also cold storage room.
Q: Are you manufacturer?
Yes. We are professional manufacturer of rotary compressor and condensing units for more than 12 years.
Q: Do you have the warranty?
We have one year warranty for manufacturers.
Q: Which customers do you cooperated with?
We have cooperated with many domestic and international manufacturers, like PREAIR, KINGTEC, HAIER, SANYO, and DAYRELAX and so on.
Q: What are your payment terms?
T/T and L/C are both OK.
Horizontal condensing unit is more compact, providing more effective volume in the showcase.
Q: What’s type of compressor of the condensing unit?
What’s the advantage compared to reciprocating compressors?
It's rotary compressor. The rotary type, noise and vibration is largely reduced compared with the reciprocating compressor. Therefore noise generated by the unit can be reduced. Horizontal design makes the condensing unit more compact.
It's rotary compressor. The rotary type, noise and vibration is largely reduced compared with the reciprocating compressor. Therefore noise generated by the unit can be reduced. Horizontal design makes the condensing unit more compact.
Q: Can we use this condensing unit frozen room -22°C?
Yes. The evaporating temperature of condensing unit is from -5 degree to -40 degrees. It can use in frozen room also cold storage room.
Q: Are you manufacturer?
Yes. We are professional manufacturer of rotary compressor and condensing units for more than 12 years.
Q: Do you have the warranty?
We have one year warranty for manufacturers.
Q: Which customers do you cooperated with?
We have cooperated with many domestic and international manufacturers, like PREAIR, KINGTEC, HAIER, SANYO, and DAYRELAX and so on.
Q: What are your payment terms?
T/T and L/C are both OK.
