Wrench
Wheel dresser
Taper sleeve
Washer
Wheel
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
BETA
-
Voltage:
-
400 V
-
Dimension(L*W*H):
-
1200x800x1750 mm
-
Weight (KG):
-
750
-
Power (kW):
-
3.5
-
Name:
-
High accuracy popular repair product Flywheel grinding machine sales
-
Machine Type:
-
Flywheel grinding machine
-
Color:
-
Customers' Request
-
Spindle speed:
-
2800 rpm
-
Max.working length:
-
500 mm
-
The motor of Grinding Wheel:
-
3kW/400V/50Hz
-
The Max. Distance from spindle to table:
-
200 mm
-
Dimension:
-
1200x800x1750 mm
-
G.W/N.W:
-
750 kg
-
Model:
-
FG500
Quick Details
-
Grinding Length(mm):
-
500
-
Surface Roughness(μm):
-
0.32 μm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
BETA
-
Voltage:
-
400 V
-
Dimension(L*W*H):
-
1200x800x1750 mm
-
Weight (KG):
-
750
-
Power (kW):
-
3.5
-
Name:
-
High accuracy popular repair product Flywheel grinding machine sales
-
Machine Type:
-
Flywheel grinding machine
-
Color:
-
Customers' Request
-
Spindle speed:
-
2800 rpm
-
Max.working length:
-
500 mm
-
The motor of Grinding Wheel:
-
3kW/400V/50Hz
-
The Max. Distance from spindle to table:
-
200 mm
-
Dimension:
-
1200x800x1750 mm
-
G.W/N.W:
-
750 kg
-
Model:
-
FG500
Products Description

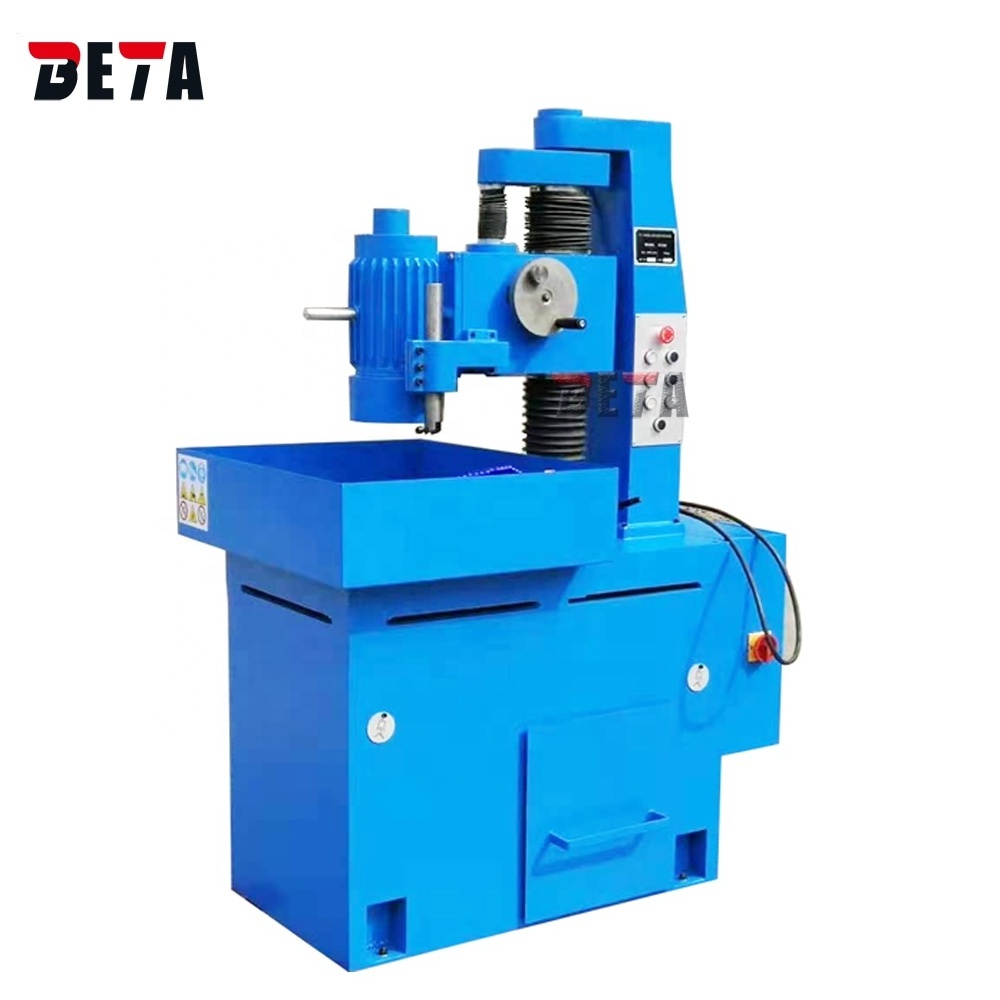

FG500 High accuracy popular repair product Flywheel grinding machine sales
Product Parameters
|
Model
|
FG500
|
|
Table Diameter
|
450 mm
|
|
The Max. Diameter of Repairing Flywheel
|
500 mm
|
|
The Max. Distance from spindle to table
|
200 mm
|
|
Rotational Speed of Grinding Wheel
|
2800 r/min
|
|
The Rotational Speed of Table
|
17/34 r/min
|
|
The motor of Grinding Wheel
|
3 kW/400 V/50 Hz
|
|
The motor of table
|
1400/700 r/min 0.4/0.22 kW
|
|
Cooling Pump
|
0.12 kW
|
|
Overall Dimensions
|
1200x800x1750 mm
|
Details Images
Standard accessories:
