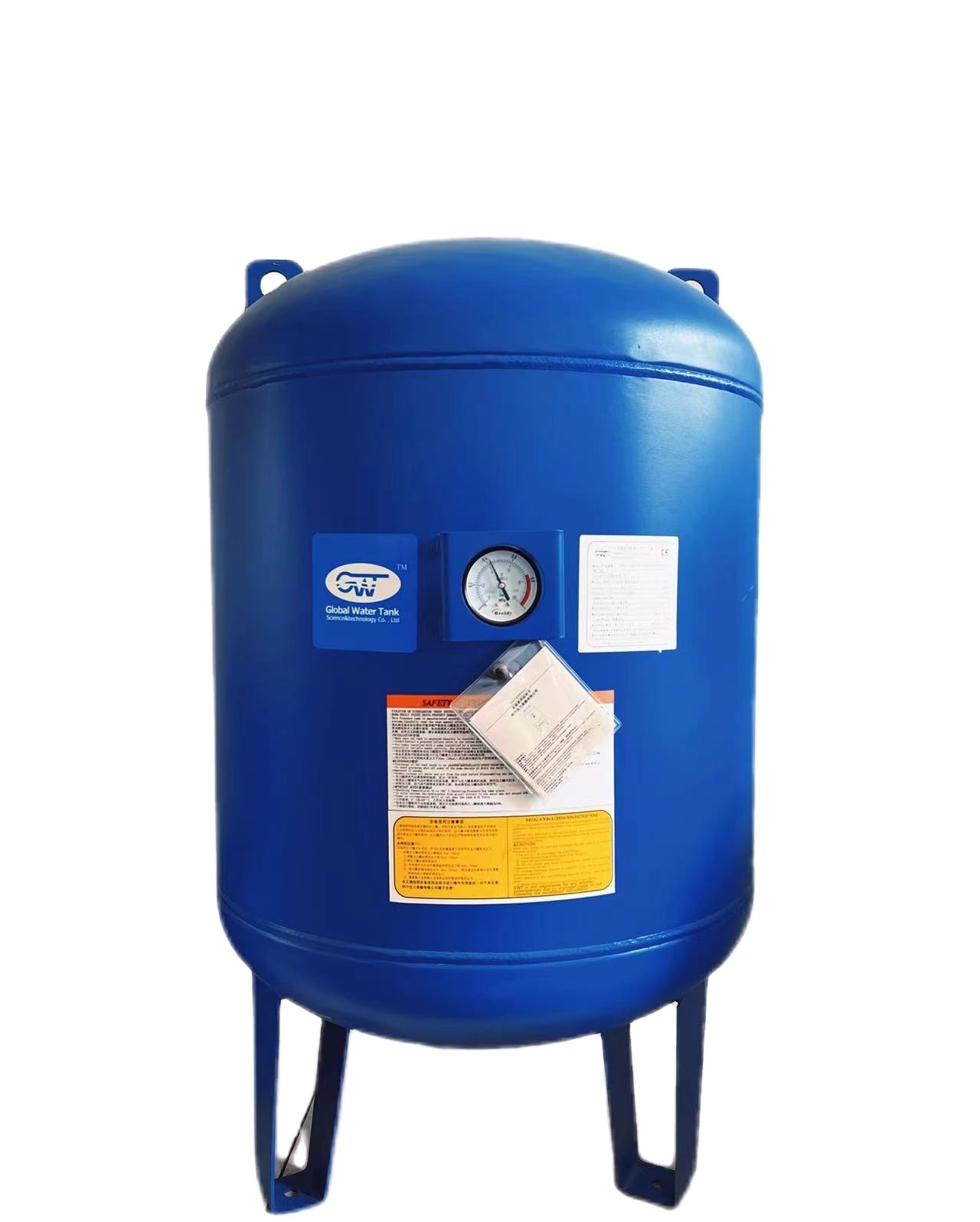

Efficient Cooling System Expansion Tank Carbon Steel Pressure Vessels Designed for Home Use and Manufacturing Plants
Efficient Cooling System Expansion Tank Carbon Steel Pressure Vessels Designed for Home Use and Manufacturing Plants
Efficient Cooling System Expansion Tank Carbon Steel Pressure Vessels Designed for Home Use and Manufacturing Plants
Efficient Cooling System Expansion Tank Carbon Steel Pressure Vessels Designed for Home Use and Manufacturing Plants
Efficient Cooling System Expansion Tank Carbon Steel Pressure Vessels Designed for Home Use and Manufacturing Plants
Efficient Cooling System Expansion Tank Carbon Steel Pressure Vessels Designed for Home Use and Manufacturing Plants
Efficient Cooling System Expansion Tank Carbon Steel Pressure Vessels Designed for Home Use and Manufacturing Plants
Efficient Cooling System Expansion Tank Carbon Steel Pressure Vessels Designed for Home Use and Manufacturing Plants

Efficient Cooling System Expansion Tank Carbon Steel Pressure Vessels Designed for Home Use and Manufacturing Plants

FOB Reference Price: Get Latest Price
≥1 Sets
US $76
≥10 Sets
US $67
≥50 Sets
US $60
≥500 Sets
US $55
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Brand Name:
CWT
Marketing Type:
To be Popular in 2024
Core Components:
Shell, Bladder, Membrane
Dimension(L*W*H):
750(Height)mm * 380(diameter)mm
Capacity:
15 gallon
Weight:
11.5
Inner Material:
EPDM
Outer Material:
Carbon Steel
Design Pressure(MPa):
1
Design Standard:
ASME /PED/ EU/ GB
Working Temperature(℃):
0 - 99 ℃
Gallon Volume:
Available
Wall Thickness:
4mm
Certification:
ASME Stamped Available

Quick Details

Volume (m³):
0.05
Max Working Pressure(MPa):
2.5
Place of Origin:
Shandong, China
Brand Name:
CWT
Marketing Type:
To be Popular in 2024
Core Components:
Shell, Bladder, Membrane
Dimension(L*W*H):
750(Height)mm * 380(diameter)mm
Capacity:
15 gallon
Weight:
11.5
Inner Material:
EPDM
Outer Material:
Carbon Steel
Design Pressure(MPa):
1
Design Standard:
ASME /PED/ EU/ GB
Working Temperature(℃):
0 - 99 ℃
Gallon Volume:
Available
Wall Thickness:
4mm
Certification:
ASME Stamped Available
Products Description
Features: (Top Ten Advantages)
1. Carbon Steel Sheel of Strong Pressure Resistance. 2. Replaceable Bladder made of EPDM is easy to operate and cost-saving, more anti-fatigue, anti-aging, and has lifespan up to 50 years. 3. Professional welding technology comes from Germany, more beautiful, stronger. 4. Traceable raw material guarantee the tank shell quality. 5. . Water-based paint is more environmental friendly and anti-corrosion. 6. Novel Appearance with Patented Design.
7. Design can be customized 8. PEB, CE, ASME certification are available 9. 3L-20000L volume for your options 10. Quality Guarantee of 1-3 Years.

Details Images
1. Strict anti-corrosion treatment is carried out on the interface part before leaving the factory. 2. Advanced welding technology not only guarantees high quality, but also provides the most beautiful appearance. 3. Multiple patented technologies such as legs, lifting lugs, and shells lead the market trend. 4. High-quality spray painting technology and multiple color options not only meet customer needs, but also ensure product quality. 5. High-quality steel is the guarantee of shell quality.
Tank Structure and Operating Principle

Tank Structure

1. Shell including the legs, lifting lugs, flange for fixing the membrane, is usually made carbon steel or stainless steel.

2. Bladder made of EPDM or heavy butyle.

3. The cavity between the shell and the bladder is pre-charged with 20-40PSI gas, air or nitrogen for your options.

4. Embedded pressure gauge.

Operating Principle of the Tank

When the pump starts or the pipeline pressure suddenly increases significantly, the air cushion in the cavity is compressed, the volume becomes smaller, and the pressure in the pipeline is absorbed, so that the pressure in the system reaches a balanced state. When the pump stops running and the pipeline pressure is released smoothly, the air pressure in the pressure tank is gradually released to ensure that the pressure in the system is in a balanced state until the pressure is released and the pump is restarted or the pressure in the pipeline surges again, forming a cycle. .
Parameters of CWT Series Bladder Tank
Type
Volume
(litre)
Volume
(gallon)
Height（mm）
Diameter（mm）
Weight（kg）
Interface Size
CWT-3-10
3
1
195
150
1.2
3/4"
CWT-5-10
5
1
235
200
1.9
3/4"
CWT-8-10
8
2
280
200
2.2
3/4"
CWT-14-10
14
4
350
280
4
3/4"
CWT-19-10
19
5
450
280
5.6
3/4"
CWT-24-10
24
6
480
280
6.2
1”
CWT-30-10
30
8
550
380
10.5
1”
CWT-50-10
50
13
750
380
11.5
1”
CWT-80-10
80
21
950
380
13.3
1”
CWT-100-10
100
27
1000
380
15.8
1”
CWT-150-10
150
40
1110
461
30
1”
CWT-200-10
200
53
1110
613
60
1.25”
CWT-300-10
300
80
1250
662
72
1.25”
CWT-500-10
500
133
1540
762
110
1.25”
CWT-750-10
750
200
1800
762
130
1.25”
CWT-850-10
850
226
1935
812
145
1.25”
CWT-1000-10
1000
266
2340
812
183
2”
CWT-1500-10
1500
400
2400
966
272
2”
CWT-2000-10
2000
533
2480
1116
347
2”
CWT-3000-10
3000
799
2810
1220
488
2.5”
CWT-4000-10
4000
1066
3100
1520
800
2.5”
CWT-5000-10
5000
1332
3550
1520
900
2.5”
Application Scenarios
Hydropower ↑↑↑
Expansion tanks are used in hydropower systems to stabilise the pipelines’ water pressure and flow rate. They help prevent water hammer, a sudden pressure surge that can damage pipelines and equipment.
Irrigation ↑↑↑
Expansion tanks can be used in irrigation systems to regulate water flow to crops. They also provide a reserve of water that can be used during periods of high demand.
Potable Water Supply System↑↑↑
ExpansionTanks are used in water supply systems to regulate water pressure and prevent water hammer. They also provide a reserve of water that can be used during periods of high demand or when the supply is interrupted.
Fire protection ↑↑↑
Expansion tanks can be used in fire protection systems to provide a reserve of water that can be used in case of a fire. They also help regulate water flow to prevent water hammer and ensure a consistent water supply to the fire sprinkler system.
Expansion Tank for Hydronic Heating System↑↑↑

Industrial processes ↑↑↑
Expansion tanks can be used in industrial processes that require a constant flow of water or other fluids. They help regulate the flow and pressure of fluids and prevent damage to equipment from the water hammer.
Certifications

The company has passed ISO9001 quality management system certification, ISO14001 environmental management system certification, ISO45001 occupational health and safety management system certification, D1/D2(<10MPa) Pressure vessel special equipment manufacturing license, simple pressure vessel special equipment type test certificate, domestic hygiene approval for drinking water safety products, PED H model 2014/68/EU (EU certification) and other certificates, is a national science and technology innovation cultivation enterprise.
About Us

SGCWT (SHOUGUANG Clean Water Tank Science & Technology Co., Ltd.) is the introduction of Germany Barnova technology, specializing in pressure expansion tanks, air/water storage tanks, air energy storage tanks, water hammer tanks, heat/cold energy storage tanks, no negative pressure water supply equipment steady flow tank, coupled tank research and development, manufacturing, processing, sales, maintenance; Operating the import and export business of goods and technology within the scope permitted by the state. Material carbon steel, stainless steel, duplex steel, and so on. Products are mainly used for constant pressure frequency conversion water supply equipment, no-negative pressure water supply equipment, heating systems, solar energy, floor heating, fire fighting, air energy, air conditioning, and large water supply systems (waterproof hammer). Play the role of energy saving, pressure stabilizing, waterproof hammer, energy storage, environmental protection, and prolong the service life of the pump and pipeline system, to ensure the stable operation of the water supply system.
