Quick Details
-
Brand Name:
-
LANDTOP
-
Model Number:
-
Y2 Series AC Motor
-
Frequency:
-
50HZ/60HZ
-
Housing:
-
Cast Iron
-
Mounting:
-
B3/B35/B5
-
Stator n Rotor:
-
Silicon steel sheet
-
Insulation class:
-
Class B, Class F
-
Protection class:
-
IP44, IP54, IP55
-
Cooling method:
-
IC0141
-
Certification:
-
ISO9001
Quick Details
-
AC Voltage:
-
208-230 / 240 V
-
Warranty:
-
1year
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
LANDTOP
-
Model Number:
-
Y2 Series AC Motor
-
Frequency:
-
50HZ/60HZ
-
Housing:
-
Cast Iron
-
Mounting:
-
B3/B35/B5
-
Stator n Rotor:
-
Silicon steel sheet
-
Insulation class:
-
Class B, Class F
-
Protection class:
-
IP44, IP54, IP55
-
Cooling method:
-
IC0141
-
Certification:
-
ISO9001

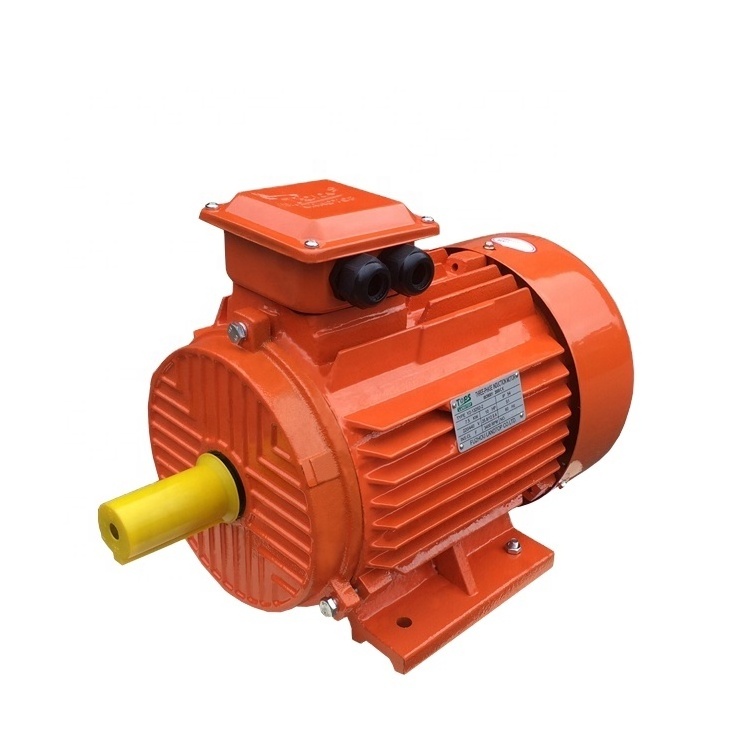

Y2 Fuan 380v 50hz three phase asynchronous ac electric motor 3000rpm 1500rpm
Operating conditions:
- Ambient temperature: -15℃≤θ≤40℃
- Altitude: ≤1000m
- Protection class: IP44
- Insulation class: B/F
- Rated voltage: 380V, other voltage on request
- Cooling type: IC 0141
- Duty: Continuous(S1)
- Rated frequency: 50HZ, other frequency on request.
Technical data
| TECHNICAL DATA | Output | Full load | ||||
| kW | HP | Current | Speed | Eff | Power | |
| Model | (A) | (r/min) | (%) | Factor | ||
| 380V 50Hz Synchronous Speed 3000 r/min (2 poles) | ||||||
| Y2-631-2 | 0.18 | 0.25 | 0.53 | 2720 | 65 | 0.8 |
| Y2-632-2 | 0.25 | 0.34 | 0.69 | 2720 | 68 | 0.81 |
| Y2-711-2 | 0.37 | 0.5 | 0.99 | 2740 | 70 | 0.81 |
| Y2-712-2 | 0.55 | 0.75 | 1.4 | 2740 | 73 | 0.82 |
| Y2-801-2 | 0.75 | 1 | 1.83 | 2830 | 75 | 0.83 |
| Y2-802-2 | 1.1 | 1.5 | 2.58 | 2830 | 77 | 0.84 |
| Y2-90S-2 | 1.5 | 2 | 3.43 | 2840 | 79 | 0.84 |
| Y2-90L-2 | 2.2 | 3 | 4.85 | 2840 | 81 | 0.85 |
| Y2-100L-2 | 3 | 4 | 6.31 | 2870 | 83 | 0.87 |
| Y2-112M-2 | 4 | 5.5 | 7.1 | 2890 | 85 | 0.88 |
| Y2-132S1-2 | 5.5 | 7.5 | 11 | 2900 | 86 | 0.88 |
| Y2-132S2-2 | 7.5 | 10 | 14.9 | 2900 | 87 | 0.88 |
| Y2-160M1-2 | 11 | 15 | 28.8 | 2930 | 88 | 0.89 |
| Y2-160M2-2 | 15 | 20 | 34.7 | 2930 | 89 | 0.89 |
| Y2-160L-2 | 18.5 | 25 | 34.7 | 2930 | 90 | 0.9 |
| Y2-180M-2 | 22 | 30 | 41 | 2940 | 90 | 0.9 |
| Y2-200L1-2 | 30 | 40 | 55.5 | 2950 | 91.2 | 0.9 |
| Y2-200L2-2 | 37 | 50 | 67.9 | 2950 | 92 | 0.9 |
| Y2-225M-2 | 45 | 60 | 82.3 | 2970 | 92.3 | 0.9 |
| Y2-250M-2 | 55 | 75 | 101 | 2970 | 92.5 | 0.9 |
| Y2-280S-2 | 77 | 100 | 134 | 2970 | 93 | 0.9 |
| Y2-280M-2 | 90 | 125 | 160 | 2970 | 93.8 | 0.91 |
| 380V 50Hz Synchronous Speed 1500 r/min (4 poles) | ||||||
| Y2-631-4 | 0.12 | 0.16 | 0.42 | 1310 | 57 | 0.72 |
| Y2-632-4 | 0.18 | 0.25 | 0.63 | 1310 | 60 | 0.73 |
| Y2-711-4 | 0.25 | 0.34 | 0.79 | 1330 | 65 | 0.74 |
| Y2-712-4 | 0.37 | 0.5 | 1.12 | 1330 | 67 | 0.75 |
| Y2-801-4 | 0.55 | 0.75 | 1.57 | 1390 | 71 | 0.75 |
| Y2-802-4 | 0.75 | 1 | 2.03 | 1390 | 73 | 0.76 |
| Y2-90S-4 | 1.1 | 1.5 | 2.89 | 1400 | 75 | 0.77 |
| Y2-90L-4 | 1.5 | 2 | 3.7 | 1400 | 78 | 0.79 |
| Y2-100L1-4 | 2.2 | 3 | 5.16 | 1430 | 80 | 0.81 |
| Y2-100L2-4 | 3 | 4 | 6.78 | 1430 | 82 | 0.82 |
| Y2-112M-4 | 4 | 5.5 | 8.8 | 1440 | 84 | 0.82 |
| Y2-132S-4 | 5.5 | 7.5 | 11.7 | 1440 | 85 | 0.83 |
| Y2-132M-4 | 7.5 | 10 | 15.6 | 1440 | 87 | 0.84 |
| Y2-160M-4 | 11 | 15 | 22.3 | 1460 | 88 | 0.84 |
| Y2-160L-4 | 15 | 20 | 30.1 | 1460 | 89 | 0.85 |
| Y2-180M-4 | 18.5 | 25 | 36.5 | 1470 | 90.5 | 0.86 |
| Y2-180L-4 | 22 | 30 | 43.2 | 1470 | 91 | 0.86 |
| Y2-200L-4 | 30 | 40 | 57.6 | 1470 | 92 | 0.86 |
| Y2-225S-4 | 37 | 50 | 69.3 | 1480 | 92.5 | 0.87 |
| Y2-225M-4 | 45 | 60 | 84.7 | 1480 | 92.8 | 0.87 |
| Y2-250M-4 | 55 | 75 | 103 | 1480 | 93 | 0.87 |
| Y2-280S-4 | 75 | 100 | 140 | 1480 | 93.8 | 0.87 |
| Y2-280M-4 | 90 | 125 | 167 | 1490 | 94.2 | 0.87 |
