Independent wall-type jumbo roll stand, stucture is simpler and stronger, easy to clean. It is controled by the independent frequency motor, and the tension is tracked by the encoder.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Guangxi, China
-
Voltage:
-
380V 50HZ
-
Power:
-
16kw
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Online support
-
Processing type:
-
laminating machine, embossing machine, winding machine
-
Jumbo roll stand:
-
1-4 sets
-
Laminating device:
-
Glue laminating device, steel to rubber roller
-
Embossing device:
-
steel to rubber roller, steel to steel roller
-
Winding device:
-
Cylinder controled
-
Perforation distance:
-
90-160mm; 180-320mm
-
Diameter of finished products:
-
100-300 mm
-
Packing specifications:
-
toilet tissue roll:2-48rolls kitchen towel roll:2-16rolls
-
Set packing speed:
-
25bags/min
-
Warranty:
-
1 Year
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
South Africa
-
Showroom Location:
-
South Africa
-
Video outgoing-inspection:
-
Provided
-
Machinery Test Report:
-
Provided
-
Marketing Type:
-
New Product 2020
-
Warranty of core components:
-
1 Year
-
Core Components:
-
PLC, Gear
-
Application:
-
Machinery & Hardware, Tissue paper packing machine
-
Packaging Type:
-
Bags, Film, Tissue paper packing machine
-
Driven Type:
-
Electric
-
Key Selling Points:
-
Automatic
-
Applicable Industries:
-
Manufacturing Plant, Tissue paper packing machine
-
Certification:
-
CE, ISO9001
-
Type:
-
Other
Quick Details
-
Brand Name:
-
ZODE
-
Dimension(L*W*H):
-
L3900*W1600*H2200(mm)
-
Weight:
-
3500KG
-
Place of Origin:
-
Guangxi, China
-
Voltage:
-
380V 50HZ
-
Power:
-
16kw
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Online support
-
Processing type:
-
laminating machine, embossing machine, winding machine
-
Jumbo roll stand:
-
1-4 sets
-
Laminating device:
-
Glue laminating device, steel to rubber roller
-
Embossing device:
-
steel to rubber roller, steel to steel roller
-
Winding device:
-
Cylinder controled
-
Perforation distance:
-
90-160mm; 180-320mm
-
Diameter of finished products:
-
100-300 mm
-
Packing specifications:
-
toilet tissue roll:2-48rolls kitchen towel roll:2-16rolls
-
Set packing speed:
-
25bags/min
-
Warranty:
-
1 Year
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
South Africa
-
Showroom Location:
-
South Africa
-
Video outgoing-inspection:
-
Provided
-
Machinery Test Report:
-
Provided
-
Marketing Type:
-
New Product 2020
-
Warranty of core components:
-
1 Year
-
Core Components:
-
PLC, Gear
-
Application:
-
Machinery & Hardware, Tissue paper packing machine
-
Packaging Type:
-
Bags, Film, Tissue paper packing machine
-
Driven Type:
-
Electric
-
Key Selling Points:
-
Automatic
-
Applicable Industries:
-
Manufacturing Plant, Tissue paper packing machine
-
Certification:
-
CE, ISO9001
-
Type:
-
Other
Product Description

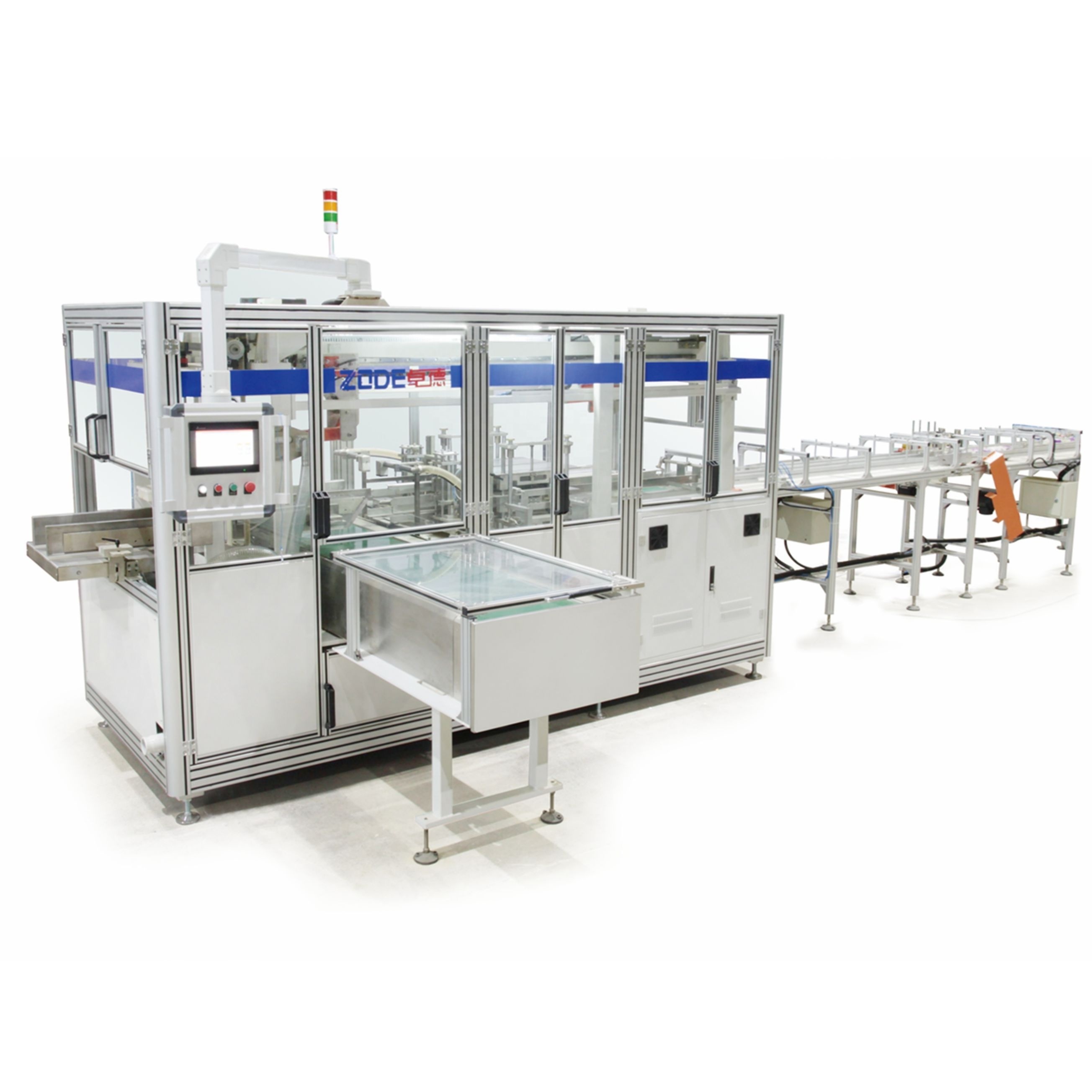

Good Quality Toilet Tissue Paper Production Line Kitchen Towel Making Packing Machine
1. Using advanced servo drive, touch screen and PLC control system, convenient and quick parameter setting for easy operation. Full automatic design including the bag opening and feeding, inserting angle and sealing.
2. Adjustable packing dimensions and fast changeover.
3. The machine is designed to have various specifications format changeover between toilet roll and kitchen towel , it thanks to the advanced double layer arrangement system.
4. Using European style Prefabricated bags, the package is without portable.
2. Adjustable packing dimensions and fast changeover.
3. The machine is designed to have various specifications format changeover between toilet roll and kitchen towel , it thanks to the advanced double layer arrangement system.
4. Using European style Prefabricated bags, the package is without portable.
|
Items
|
Technical parameters
|
|
Size range bag
|
Max.L720*W480*H300mm
|
|
Packing specifications
|
toilet tissue roll:2-48rolls
kitchen towel roll:2-16rolls |
|
Packing arrangement
|
Horizontal packing
|
|
Set packing speed
|
25bags/min
|
|
Stable packaging speed
|
15bags/min(steady speed)
18bags/min(max) |
|
Packing film
|
PE precast bag
|
|
Total power supply
|
14KW
|
|
Mini air pressure requirement
|
0.5Mpa
|
|
Power supply
|
380V 50HZ
|
|
Weight
|
3500KG
|
|
Outline dimension
|
L3900*W1600*H2200mm
|
Performance upgrade
:
1. Advanced Three layers arranging system achieve the three layers kitchen paper: 2-24 rolls, toilet roll paper:10-48 rolls of mutual convert packaging requirements
2. The 32 rolls and 48 rolls of large capacity packaging meet the rapid development of the e-commerce online sales of packaging needs
3. From bagging to seal forming, the whole process are protected by side guard, effectively avoid the phenomenon of broken bags
Rewinding machine:
Finished products:
Real machine model:
1 rewinding unit + 1 glue lamination unit + 2 full embosing units + 2 junbo roll stands
Toilet paper production line:
Related products
Our company
Zhuode Machinery
had passed international certification I S O 9 0 0 1 and several national invention patents, with full independent intellectual property rights. Our strengt
h is our powerful research and development team that can rapidly customize unique solutions to meet the every changing market dem
ands and individual customer needs.
Serve the facial tissue converting and packing production line,
toilet paper production line
and kitchen towel rewinding and packing production line, napkin tissue folding and packing production line, diaper packing machine, jumbo toilet roll band saw cutting machine and other household tissue paper processing machine around the world. Our main market is Middle East, Southeast Asia, Africa, South America, Europe and America.
Factory:
Exhibition:
Certifications:
We can provide the
toilet paper production line
electronic edition certificates if asked, or you can see the original documents in our factory. We can ensure the truth of our certificates. The following are the certifications for
ISO 9001,
Patent certificate, Utility model patent certificate and Business license.
Our Service
Packing & Delivery
1) Inside package is plastic film, outside is wooden or plywood case
2) Full automatic instant porridge machine packaging is based on the customers' need).
3) Only plastic film nude packing with wooden pallet.
4) We can supply fumigation package and certificate.
5) Shipping, train, express or upon clients' demands.
Customers
FAQ
1: Are you trading company or manufacturer ?
A: We are factory.
2: How long is your delivery time?
A:30-60 days after received a deposit, it is according to quantity.
3: Do you provide design ?
A:we can provide solutions to customers from products choosing, designing, installing and training.
4: What is your terms of payment ?
A: 30% T/T in advance , balance before shippment.
5. How much area the whole production line needs?
A: The best way is telling us your workshop area, then we will draw a draft for you to ensure the rational use of your space.
6. If the power supply is not 3ph 380V 50HZ, could you offer the suitable machine?
A:
Yes, we can offer the suitable machine according to your power supply, for example 3ph 380V 60HZ, 3ph 415V 60 HZ, 3ph 220V 60HZ and so on.
If you have any other questions, just feel free to contact us!
