Quick Details
-
Accuracy:
-
0.5%
-
Display accuracy:
-
0.1%FS
-
Output:
-
2 relays
-
Connection:
-
M20*1.5 G1/2 G1/2 NPT
-
Swithc type:
-
PNP/NPN
Quick Details
-
Max. Voltage:
-
30V
-
Name:
-
water Pressure switch
-
Pressure range:
-
-0.1~0~100Mpa
-
Accuracy:
-
0.5%
-
Display accuracy:
-
0.1%FS
-
Output:
-
2 relays
-
Connection:
-
M20*1.5 G1/2 G1/2 NPT
-
Swithc type:
-
PNP/NPN
Hot sale High Quality Industrial Oil Air Compressor Digital Low Cost Pressure Switch
Overview

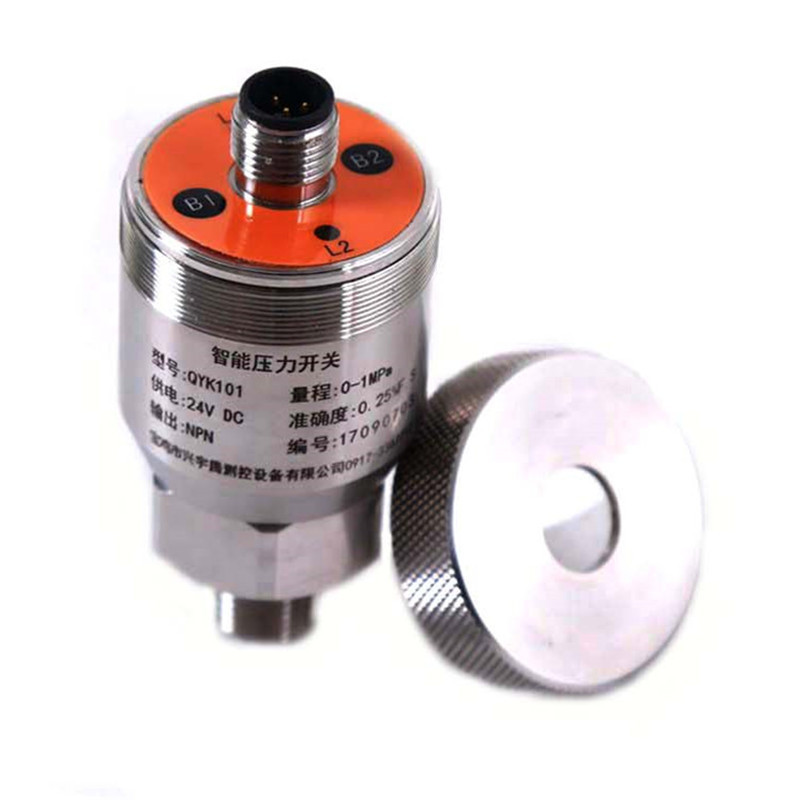

QYK101 intelligent pressure transmitter with switch is easy to operate and adjust, which is also safe and reliable. It is used in fluid pressure monitoring and controlling in water supply, electric industry, petroleum, chemical engineering, mechanical engineering and hydraulic engineering.
Main Features
1.All digital, adjustable switch value during full span
2.Fast switch speed, 630 times/s
3.Resistance to wave current, sharp pulse and radio frequency interference
4.Switch value and back difference setting via software and communication interface
5.Set switch value via button
6.High Protection grade
7.Fully stainless steel case suitable for various medium
|
SELECTIONS FOR QYK101 Intelligent Pressure Transmitter with Switch
|
|
|
|
|||
|
Display
|
G12
|
G1/2
|
|
|||
|
|
G14
|
G1/4
|
|
|||
|
|
M20
|
M20*1.5
|
|
|||
|
|
P
|
PNP
|
|
|||
|
|
N
|
NPN
|
|
|||
|
Measuring Range
|
|
According to customer's request
|
|
|||
|
SELECTIONS FOR QYK101 Intelligent Pressure Transmitter with Switch
|
|
|
|
|||
|
PRESSURE RANGE
|
-O.1~0...100MPa
|
|
|
|||
|
ACCURACY
|
≤0.5%F.S
|
|
|
|||
|
STABILITY
|
≤0.1%/year
|
|
|
|||
|
POWER SUPPLY
|
24±20%VDC
|
|
|
|||
|
Contact dielectric material
|
stainless steel
|
|
|
|||
|
maximum power consumption
|
1W
|
|
|
|||
|
TEPY
|
NPN/PNP
|
|
|
|||
|
MEDIUM
|
Liquid/Oil /water etc
|
|
|
|||
|
Load
|
24VDC 1.2A
|
|
|
|||
Baoji XingYuTeng Measure and Control Instruments Co., Ltd
was founded in 2007, is located in Baoji, Shaanxi Province,China.
As a well-known
m
anufacturer,
XingYuTeng specializes in High-tech R&D, focuses on self-developing, manufacturing and selling of measurement and control products for pressure, temperature, liquid level and flow.
XingYuTeng can offer an extensive variety of the highest quality pressure transmitter as well as digital pressure gauge and level transmitter and temperature transmitter. Recognized for their accuracy and long-term reliability, our products are the sensor of choice for diverse markets such as hydroelectricity, public waterworks, chemical engineering,mechanical engineering, petroleum industry, Industrial Controls, Medical industry and Food Handling.
With the implementation of ISO9001, CMC (China Metrology Certification), EX(Explosion-proof certification),our company has adopted programs to ensure compliance with the necessary directives for quality control and product safety.
At present, our products have been accepted and exported to Europe, America, Southeast Asia, Africa and other regions all over the world. Based on the purpose of satisfying customers, we keep improving our product development capability and processing technic to offer a better product.
Exhibition
Oil pumping/Oil drilling
Automobile
HVAC
Natural gas
CNG/LNG Gas station
Pump&water treatment
Hydraulic control system
Chemical industry
Food industry
1.If the quantity of order is not very big, we could deliver them to you by express, such as TNT,DHL,UPS,FEDEX or EMS.
2.If order is big , we will advise you use Air shipping or Sea shipping through your nominated forwarder agent,our long-term cooperated agent is also available.
3.Freight collect if bulk shipment.
1. How long will you reply me?
Within 1 hour, no longer than 12 hours.
2. How can I get the quotation?
Please advise the required specification including measuring range, electronic connection, output signal, thread
connection, medium, shell material, operating temperaturer, etc, then we can recommend the suitable model for you.
3. Can I get sample?
Pls contact with us online directly and then we can discuss case by case.
4. Can I visit your factory?
Sure, you are always welcome, we are
ORIGINAL MANUFACTURER
.
Our factory is located at Baoji city, Shaanxi province, China.
5. Can we use our logo on the products?
Yes, we can offer the OEM/ODM service.
6. How long is your warranty period?
Within 12 months from the receipt of goods
7. What is your terms of payment?
T/T, L/C, Western union, PayPal, credit Assurance
