Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Yunnan, China
-
Brand Name:
-
Innova
-
Model Number:
-
VA-3090-6
-
Weight:
-
2kg, 2KG
-
Effective Visual Distance:
-
900-3200m
-
Product name:
-

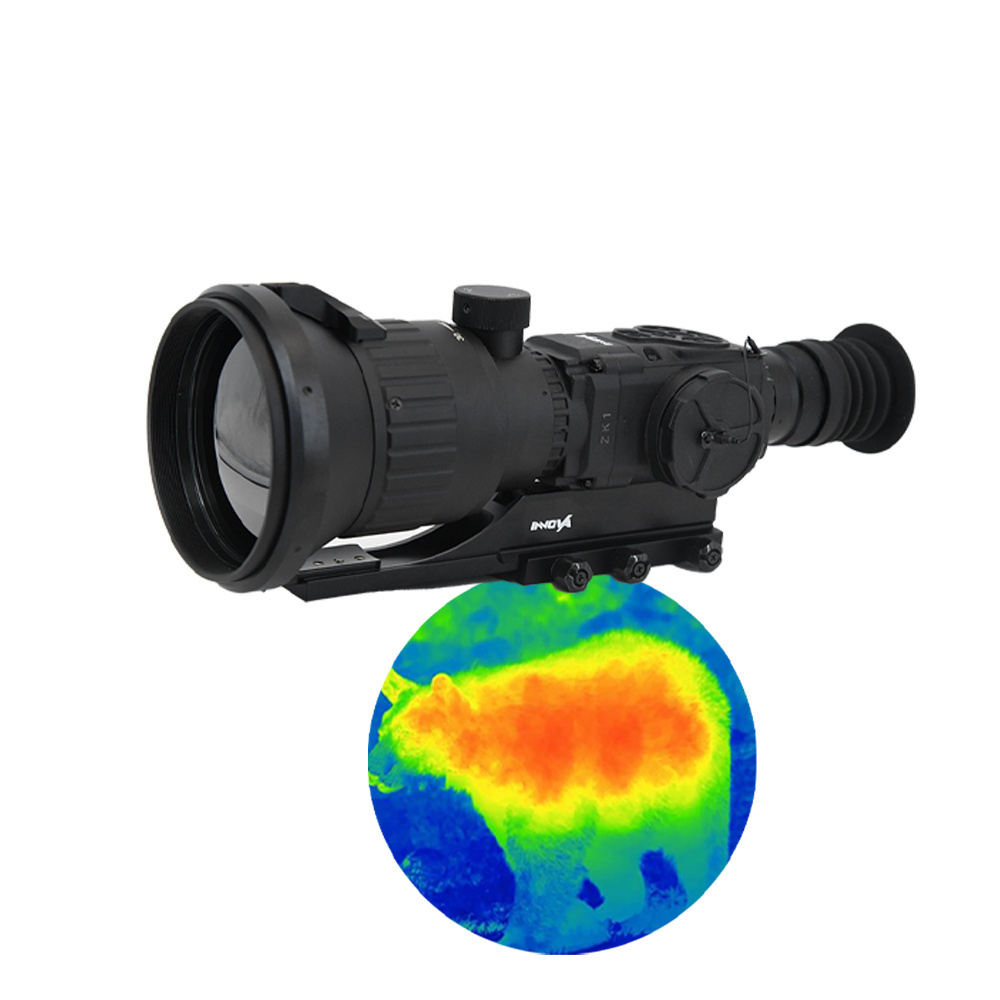

Uncooled Thermal Dual FOV Scope
-
Battery supply:
-
4X CR123
-
FOV:
-
30°/90°
-
Electronic zoom:
-
1X 2X 4X 8X
-
Resolution:
-
640*480px
-
Spectral range:
-
8-12μm
-
Pixel pitch:
-
17μm
-
NETD:
-
≤50mk
-
Anti-shock:
-
1200G
Quick Details
-
Size:
-
310x110x120mm
-
Type:
-
Monocular
-
Magnification:
-
1x 2X 4X
-
Warranty:
-
1 year
-
Place of Origin:
-
Yunnan, China
-
Brand Name:
-
Innova
-
Model Number:
-
VA-3090-6
-
Weight:
-
2kg, 2KG
-
Effective Visual Distance:
-
900-3200m
-
Product name:
-
Uncooled Thermal Dual FOV Scope
-
Battery supply:
-
4X CR123
-
FOV:
-
30°/90°
-
Electronic zoom:
-
1X 2X 4X 8X
-
Resolution:
-
640*480px
-
Spectral range:
-
8-12μm
-
Pixel pitch:
-
17μm
-
NETD:
-
≤50mk
-
Anti-shock:
-
1200G
Contact US
Engineer Manager :
Tiffany
Whatsapp/Wechat : +86 199 8835 6976
E-mail : Tiffany@innovatek.ltd
Whatsapp/Wechat : +86 199 8835 6976
E-mail : Tiffany@innovatek.ltd
Products Overview
Overview:
The product belongs to an
uncooled infrared thermal imaging night-vision sight
.
384*288/640*480
two resolution infrared detector optional and intelligent filtering algorithm enhances the details of specific targets in complex environment to create a high-definition imaging experience for every user.
Multi-scene modes
switch freely and
low NETD peremeter
present more details in specific temperature areas by adjusting different presentation modes.
Double field of view
(30°/90°
)
provides Wider vision than traditional single field of view.
Rugged
Aluminum
Alloy Housing
provide high-level protection due to high water and dust ingress protection ability.
Advantages
Advantages:
(1) To detect and identify long distance(3200m)
(2) Zoom lens, dual field of view(30/90)
(3) Various pseudo color image pattern
(4) Compact fuselage and light weight
(5) Strong anti-shock(1200G)
(6) Waterproof, anticorrosiuon, dustproof(IP67)
(3) Various pseudo color image pattern
(4) Compact fuselage and light weight
(5) Strong anti-shock(1200G)
(6) Waterproof, anticorrosiuon, dustproof(IP67)
Specification
|
Detector type
|
Uncooled Thermal scope
|
|
Customized support
|
OEM, ODM, OBM
|
|
Resolution
|
384*288px
|
|
Spectral range
|
8~12μm
|
|
Pixel pitch
|
17μm
|
|
NETD
|
≤50mk
|
|
FOV ( Focus length: 30mm）
|
12.4°*9.0°
|
|
FOV ( Focus length: 90mm ）
|
4.2°*3.1°
|
|
Electronic zoom
|
1X 2X 4X 8X
|
|
Micro Display
|
Color OLED, 800*600
|
|
Battery Life
|
>8 hours
|
|
Low Battery Indicator
|
Yes
|
|
External video
|
Yes
|
|
External power supplies
|
Yes
|
|
Protection level
|
IP65 (IP67 can be selected)
|
Packing & Delivery
We use professional cartons and safety boxes for packaging.
