- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
OEM
-
Weight (KG):
-
800
-
Power (kW):
-
4
-
Name:
-

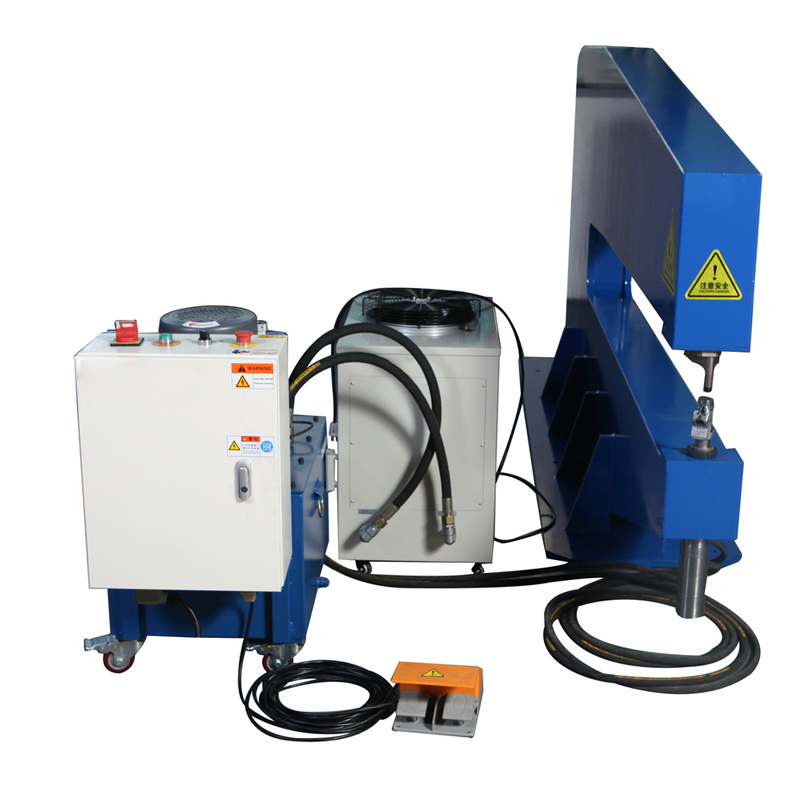

Self Piercing Riveting Machine
-
Model:
-
TCEB05-800
-
Deep Throat:
-
800mm
-
Pressure:
-
50kn
-
Motor Power:
-
4
-
Type:
-
Vertical
-
Number of Head:
-
1
-
Work Pressure(Mpa):
-
31.5
-
Electronic Control System:
-
Yes
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Marketing Type:
-
Hot Product
-
Warranty of core components:
-
2 Year
-
Brand Name:
-
OEM
-
Weight (KG):
-
800
-
Power (kW):
-
4
-
Name:
-
Self Piercing Riveting Machine
-
Model:
-
TCEB05-800
-
Deep Throat:
-
800mm
-
Pressure:
-
50kn
-
Motor Power:
-
4
-
Type:
-
Vertical
-
Number of Head:
-
1
-
Work Pressure(Mpa):
-
31.5
-
Electronic Control System:
-
Yes
Main Features
1. No predrilling or punching hole
2. The riveting point strength is higher than welding
3. Joining multilayer and multi-type of materials
4. Good waterproof and air tightness
5. High precision repeated riveting
6. Rapid completion of proces and low energy consumption
2. The riveting point strength is higher than welding
3. Joining multilayer and multi-type of materials
4. Good waterproof and air tightness
5. High precision repeated riveting
6. Rapid completion of proces and low energy consumption
|
Model
|
TCEB05-80
|
TCEB05-500
|
TCEB05-1000
|
TCEB05-1500
|
TCEB05-1800
|
TCEB05-2000
|
TCEB05-2400
|
||||||
|
Type
|
Handheld
|
Vertical
|
|
|
|
|
|
||||||
|
Control Method
|
Handle Switch
|
Foot Switch
|
|
|
|
|
|
||||||
|
Force
|
50KN
|
|
|
|
|
|
|
||||||
|
Work Pressure(Mpa
|
31.5
|
|
|
|
|
|
|
||||||
|
Throat Depth(mm)
|
80
|
500
|
1000
|
1500
|
1800
|
2000
|
2400
|
||||||
|
Size(mm)
|
180*65*510
|
680*958*1210
|
680*1800*1510
|
700*2250*1580
|
730*2480*1650
|
750*2680*1780
|
780*2980*1840
|
||||||
|
Balance Device
|
Spring Balancer
|
/
|
|
|
|
|
|
||||||
|
Motor(KW)
|
4
|
|
|
|
|
|
|
||||||
|
Electronic Control System
|
Yes
|
|
|
|
|
|
|
||||||
FAQ
1.Why choose SPR connection?
The process of SPR connection is different with that of welding. It includes positioning, clamping and automatic feeding of
rivet.Then the rivet will pierce through the upper material and form plastic deformation in the bottom material, and finish
shaping.This is an easy and rapid process.
2.Do you provide custom service?
Yes.According to the throat size you need.
3.What is this drive method?
This is pneumatic SPR machine, we also supply hydraulic SPR machine.
4.How can I improve the productivity of this machine?
You can choose 2 riveting heads SPR machine.
5.What materials can be connected？
Aluminum,Deep drawing steels,High strength steels and so on.
The process of SPR connection is different with that of welding. It includes positioning, clamping and automatic feeding of
rivet.Then the rivet will pierce through the upper material and form plastic deformation in the bottom material, and finish
shaping.This is an easy and rapid process.
2.Do you provide custom service?
Yes.According to the throat size you need.
3.What is this drive method?
This is pneumatic SPR machine, we also supply hydraulic SPR machine.
4.How can I improve the productivity of this machine?
You can choose 2 riveting heads SPR machine.
5.What materials can be connected？
Aluminum,Deep drawing steels,High strength steels and so on.
