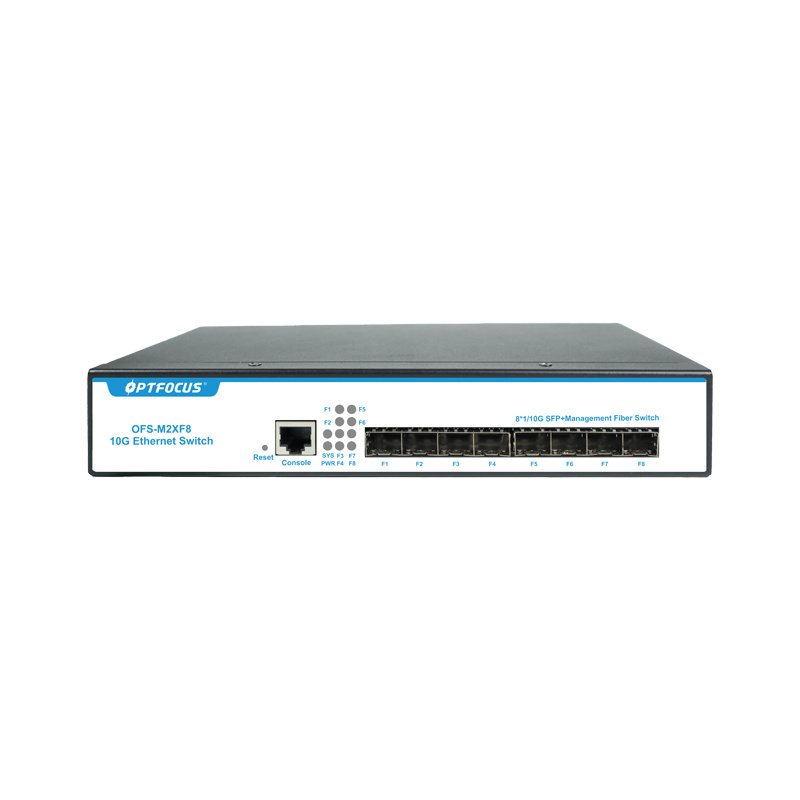

Quick Details
-
Brand Name:
-
OPTFOCUS
-
Model Number:
-
OFS-M2XF8
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
8 Port Fiber Switch
-
Connector Type:
-
8 10G SFP
-
10G 1G/SFP+:
-
8
-
Fan Quantity:
-
2 removable fan module
-
Console Port:
-
SFP
-
Management:
-
WEB, CLI
-
Bandwidth:
-
20G
-
Dimensions (W x D x H):
-
250 * 150 * 44mm
-
net weight:
-
1.1KG
-
Warranty:
-
2 Years
Quick Details
-
Transmission Rate:
-
20G
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
128MB
-
Brand Name:
-
OPTFOCUS
-
Model Number:
-
OFS-M2XF8
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
8 Port Fiber Switch
-
Connector Type:
-
8 10G SFP
-
10G 1G/SFP+:
-
8
-
Fan Quantity:
-
2 removable fan module
-
Console Port:
-
SFP
-
Management:
-
WEB, CLI
-
Bandwidth:
-
20G
-
Dimensions (W x D x H):
-
250 * 150 * 44mm
-
net weight:
-
1.1KG
-
Warranty:
-
2 Years
Features
●
8x 10/100/1000Mbps auto-sensing Ports, 2x1000Mbps SFP Ports, 1x Console Port;
● Support IEEE802.3/IEEE802.3u/IEEE802.3ab/IEEE802.3z, store-and-forward;
● Flow control mode: full-duplex adopts IEEE 802.3x standard, half-duplex adopts Back pressure standard:
● Support port auto flip (Auto MDI/MDIX):
● Panel indicator monitoring the status and help failure analysis;
● Support 802.1x port authentication, support AAA authentication, support TACACS+ authentication;
● Support WEB, TELNET, CLI, SSH, SNMP, RMON management
● Lightning Protection Surge: General Mode 4KV, Differential Mode 2KV ;ESD contact 6KV, air 8KV
● Metro Optical Broadband Network: Data network operators such as telecommunications, cable TV, and network system integration,etc.
● Support IEEE802.3/IEEE802.3u/IEEE802.3ab/IEEE802.3z, store-and-forward;
● Flow control mode: full-duplex adopts IEEE 802.3x standard, half-duplex adopts Back pressure standard:
● Support port auto flip (Auto MDI/MDIX):
● Panel indicator monitoring the status and help failure analysis;
● Support 802.1x port authentication, support AAA authentication, support TACACS+ authentication;
● Support WEB, TELNET, CLI, SSH, SNMP, RMON management
● Lightning Protection Surge: General Mode 4KV, Differential Mode 2KV ;ESD contact 6KV, air 8KV
● Metro Optical Broadband Network: Data network operators such as telecommunications, cable TV, and network system integration,etc.
Hot Sale Products
Specification
|
Category
|
Ten Gigabit Network Switch
|
|
Specification
|
8 10G SFP
|
|
Ethernet
|
8*10/100/1000Mbps Ethernet Port
|
|
|
2*1000Mbps SFP Port
|
|
|
1*Console Port
|
|
Network
Medium
|
10Base-T: Cat3、4、5 or above UTP(s100m)
|
|
|
100Base-TX: Cat5 or above UTP(s100m)
|
|
|
1000Base-TX: Cat5 or above UTP(s100m)
|
|
Bandwidth
|
20Gbps
|
|
Packet Forwarding rate
|
14.88Mpps
|
|
Packet Buffer
|
4M
|
|
Memory Capacity
|
128MB
|
|
Flash Capacity
|
16MB
|
|
MAC Address
|
8K
|
|
VLANs
|
4096
|
|
Structure Size
|
Product Size: 268*181*44mm
|
|
|
Package Size: 312*262*84mm
|
|
|
Product Net-Weight: 1.01KG
|
|
|
Product Gross-Weight: 1.54KG
|
