- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
HD
-
Dimension(L*W*H):
-
875*745*935mm
-
Weight:
-
1160 KG
-
Marketing Type:
-
New Product 2023
-
Product name:
-
Jaw crusher
-
Color:
-
Customizable
-
The Machines classification:
-
Building Stone Production Line
-
Installation:
-
Under Engineer's Guide
-
Spare parts supply:
-
Lifelong Time
-
Price:
-
Negotiatable
-
Test&Installation:
-
Senior Professional Engineers Assigned
Quick Details
-
Application:
-
Energy & Mining
-
Capacity(t/h):
-
Max.1-3t/h
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
HD
-
Dimension(L*W*H):
-
875*745*935mm
-
Weight:
-
1160 KG
-
Marketing Type:
-
New Product 2023
-
Product name:
-
Jaw crusher
-
Color:
-
Customizable
-
The Machines classification:
-
Building Stone Production Line
-
Installation:
-
Under Engineer's Guide
-
Spare parts supply:
-
Lifelong Time
-
Price:
-
Negotiatable
-
Test&Installation:
-
Senior Professional Engineers Assigned

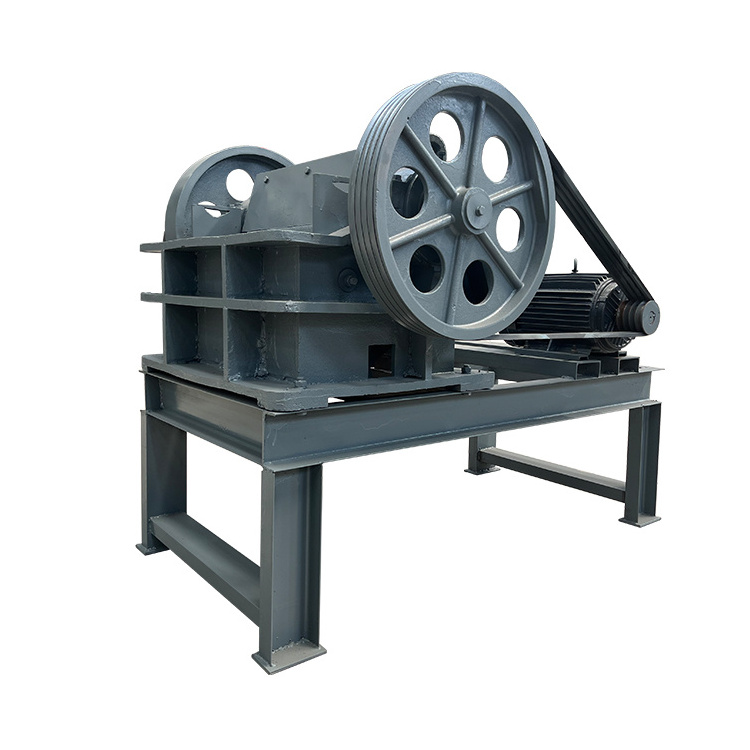

Rock Crusher Mini Stone Crushing Machine Stone Crusher Pe 150X250 Jaw Crusher
Guarantee that we are a factory, we will guarantee video conferences with you at any time, and provide you with factory prices on the premise of ensuring product quality, so that you can buy with confidence and use with more confidence.
We look for good overseas distributors, establish good international relations, do a good job in product after-sales service is our purpose, win-win cooperation is our expectation structure, looking forward to happy cooperation with you.
Specification
Compared with the simple pendulum type, the compound pendulum jaw crusher has the following advantages: lighter weight, fewer components, more compact structure, better filling degree in the crushing cavity, and uniform crushing of the loaded material blocks. Mandatory discharge of finished products, so the productivity is higher, which is 20-30% higher than that of the simple pendulum jaw crusher of the same specification; the material block has a large up and down movement at the lower part of the movable jaw, and it is easy to be in the shape of a cube unload.
Product specifications and technical parameters
|
Model number
|
Feed size (mm)
|
Discharge range (mm)
|
Maximum feed size (mm)
|
Capacity (t/h)
|
Power (kw)
|
Size (mm)
|
Weight (t)
|
|
PE-150*250
|
150*250
|
10-40
|
125
|
2-6
|
5.5
|
875*745*935
|
1
|
|
PE-200*350
|
200*350
|
10-50
|
160
|
6-10
|
7.5
|
1080*1060*1088
|
1.6
|
|
PE-250*400
|
250*400
|
20-60
|
210
|
8-16
|
15
|
1108*1090*1392
|
3
|
|
PE-400*600
|
400*600
|
40-100
|
350
|
14-36
|
30
|
1650*1748*1520
|
7.2
|
|
PE-500*750
|
500*750
|
50-125
|
400
|
30-80
|
45
|
1900*1876*1821
|
11.3
|
|
PE-600*900
|
600*900
|
75-200
|
480
|
56-192
|
75
|
2280*2245*2395
|
17.5
|
|
PE-750*1060
|
750*1060
|
80-235
|
630
|
108-256
|
90
|
2380*2550*2800
|
30.5
|
|
PE-900*1200
|
900*1200
|
95-265
|
750
|
186-398
|
110
|
2960*2930*3265
|
50
|
Working Principle
In the process of breaking large rocks into smaller ones, the first crusher is usually the "main" crusher. The longest and strongest crusher in history is the jaw crusher. When feeding the jaw crusher, the material is poured from the top inlet into the crushing chamber containing the teeth, and the molars force the material to the wall of the chamber with great force, breaking it into smaller stones.
Customer usage
Jaw Crusher
is widely used
in the fine crushing of ores and rocks with medium hardness or less in industrial sectors such as river pebbles, small stones, mineral processing, cement, metallurgy, chemical industry, and building materials.
Our Advantages
Packing & Delivery
We usually use wooden boxes for packaging and shipping. If you have special needs, you can negotiate with us for customization,
but our packaging will not damage the product. You can use it with confidence.
Houde machinery equipment company serves over 20 overseas manufacturers and exports to 100 countries, with an annual transaction volume of over 800 orders.
