Quick Details
-
Weight:
-
12 KG
-
Material:
-
Mag. Plastic, Alu.
-
Parts name:
-
coil, carburettor, fan, cylinder etc
-
Model Number:
-
423 sprayer machine
-
Use for:
-
423 sprayer
-
Color:
-
Red/white
-
After Warranty Service:
-
Spare parts
-
After-sales Service Provided:
-
Online support
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
NEWTOP/OEM, NEWTOP
-
Diameter:
-
1 inch
-
Weight:
-
12 KG
-
Material:
-
Mag. Plastic, Alu.
-
Parts name:
-
coil, carburettor, fan, cylinder etc
-
Model Number:
-
423 sprayer machine
-
Use for:
-
423 sprayer
-
Color:
-
Red/white
-
After Warranty Service:
-
Spare parts
-
After-sales Service Provided:
-
Online support

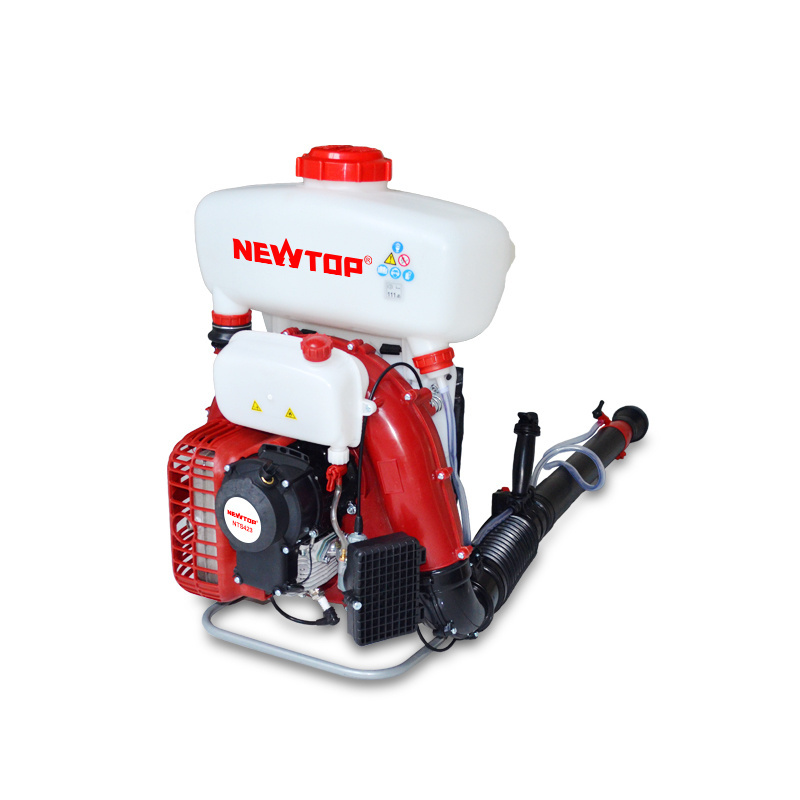

| Model NO. | NTS423 |
| Engine stroke type | 2 stroke Single Cylinder, Two-stroke, Air-cooling |
| Engine | motor 2 tiempos |
| Cylinder displacement (cc) | 72.3cc |
| Power output (kW/hp/rpm) | 3.0kW/4.0hp/5700rpm |
| Max engine speed (rpm) | 6000rpm |
| Carburetor type | Float |
| Air filter (paper/plastic/foam) | Foam |
| Fuel tank capacity (L) | 1.4L (0.37 us gal) |
| Fuel mixture ratio | 25:1(Gasoline 25 : Two-cycle Oil 1) |
| Chemist tank capacity (L) | 12L (3.2 us gal) |
| Sprayer capacity (only liquid/ liquid+powder) | Liquid+powder |
| Max air flow (m³/h) | 1300m³/h |
| Spraying horizontal range (m) | 15m |
| Dry weight (excl. cutting equipment) | 11kg (24 lbs.) |
| Gross weight | 12kg (26 lbs.) |
|
|
|
|
|
|
Q1:Where is your factory located?How can I visit your company?
A1:Our factory is located in Zhejinag,Jiaxing.Obout 2 hours driving from Shanghai.
All our clients from home or abroad,are warmly welcome to take a visit here!
Q2:If we are in Zhejiang,can you pick us to your factory?
A2:Yes ,of course,just tell us your address and phone number.
Q3:Can you offer samples?
A3:Yes,we can.
Q4:What’s your method of sample transporation?
A4:We delivery goods via international express like Fedex,UPS,DHL,TNT,EMS etc.
Q5:What’s your payment method supported?
A5:We accept T/T,L/C,Paypal,Western Union,MoneyGram etc.
Q6:What’s your delivery?
A6:3-7days for sample order,and 3-4weeks for FCL or LCL order.
Q7:How does your factory do regarding quality control?
A7:Quality is very important and always be put at the first place.
We have our own test-room,and every product must be tested before leaving our factory.
