Quick Details
-
Warranty(Year):
-
5-Year
-
Input Voltage(V):
-
AC 100-277V, 50Hz~60Hz
-
Lamp Luminous Flux(lm):
-
13200
-
Working Temperature(℃):
-
-35 - 55
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Rayborn
-
Model Number:
-
RB-LHB-120W
-
Lamp Luminous Efficiency:
-
135 lm/W high lumens light
-
Power Driver:
-
Meanwell high power light
-
Power Factor:
-
>0.98 factory lighting
-
Power Efficiency:
-
>92% led industrial light
-
LED QTY:
-
180 PCS LED Chips
-
Viewing Angle:
-
120 degree high bay reflector
-
Working Life-span:
-
50000 H led high bay
-
Color Temperature:
-
3000K/4000K/5000K/6000K
-
Cover:
-
PC cover high bay spot light
-
Size:
-
900*150*67mm reflector led high bay light
Quick Details
-
Lamp Luminous Efficiency(lm/w):
-
130
-
Lamp Body Material:
-
Aluminum
-
Application:
-
Warehouse
-
Warranty(Year):
-
5-Year
-
Input Voltage(V):
-
AC 100-277V, 50Hz~60Hz
-
Lamp Luminous Flux(lm):
-
13200
-
Working Temperature(℃):
-
-35 - 55
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Rayborn
-
Model Number:
-
RB-LHB-120W
-
Lamp Luminous Efficiency:
-
135 lm/W high lumens light
-
Power Driver:
-
Meanwell high power light
-
Power Factor:
-
>0.98 factory lighting
-
Power Efficiency:
-
>92% led industrial light
-
LED QTY:
-
180 PCS LED Chips
-
Viewing Angle:
-
120 degree high bay reflector
-
Working Life-span:
-
50000 H led high bay
-
Color Temperature:
-
3000K/4000K/5000K/6000K
-
Cover:
-
PC cover high bay spot light
-
Size:
-
900*150*67mm reflector led high bay light

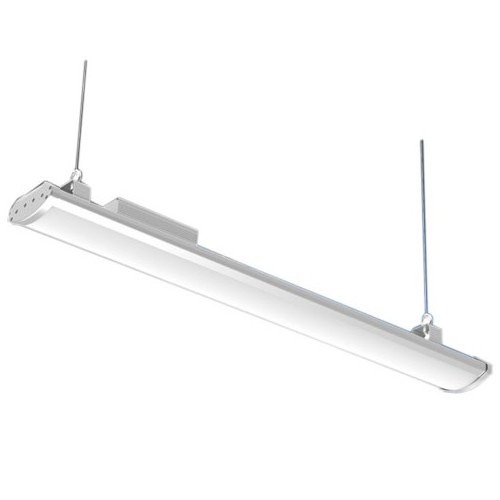

120W LED Industrial Factory Lighting Ip65 Waterproof and Dustproof LED Linear High Bay
S pecifications of 12 0W LED high bay Linear Light :
| 120W Linear LED High Bay Light Main Technical Parameters | |||
| Item No.: | RB-LHB-120W | ||
| Input Voltage: | AC100-277V | ||
| Freqency Range: | 50Hz~60Hz | ||
| Led Chip: | SMD 3030 LED | ||
| Power Factor: | >0.98 | ||
| Power Efficiency: | >92% | ||
| LED Power | 120W | ||
| LED QTY: | 180 PCS | ||
| LED Working Voltage: | DC 30~36V | ||
| System Consumption: | 122 W | ||
| LED Luminous Flux | Warm White | 15800LM | |
| Pure White | 15800LM | ||
| Cool White | 15800LM | ||
| Viewing Angle: | 120 degree | ||
| Center Illuminance | Height 3M | 422LUX | |
| Height 4M | 237LUX | ||
| Height 5M | 152LUX | ||
| Illuminance Area | Height 3M | Dia.9.6 M points visible | |
| Height 4M | Dia.12.8M points visible | ||
| Height 5M | Dia.16.1 M points visible | ||
| Illuminance Uniformity: | >0.6 | ||
| Color Temperature | Warm White | 2700K~3500K | |
| Pure White | 4000K~5500K | ||
| Cool White | 6000K~7000K | ||
| Color Rendering Index | Ra>80 | ||
| Light Distribution: | LED points visible | ||
| Light Design: | LED+Reflectors secondary light distribution | ||
| LED Junction Temperature: | ≤115ºC | ||
| Working Temperature: | -40ºC~50ºC | ||
| IP Grade: | IP65 | ||
| Working Life-span: | 50000 H | ||
| Power Line: | 1.0 m three line | ||
| Connect Wire | Brown | L | |
| Blue | N | ||
| Yellow / Green | G | ||
| Driver | Meanwell | ||
| Materials | Aluminum+PC Cover | ||
| Size | 900*150*67mm | ||
The whole series Linear LED High Bay Lights are adopted Meanwell drivers, SMD 3030 LED chips and excellent heatsinks , very bright and good heat dissipation and high-quality.
1. Rayborn Linear LED High Bay Lights are adopted SMD 3030 LED chips, which is Pure Copper LED Bracket and Gold Wires.
2. Rayborn Linear LED High Bay Lights are adopted 5 years warranty Meanwell constant current waterproof drivers.
3. As you know the good heat dissipation is important for the lifespan,so we use the best aluminum heat sink to reduce the decay. So our Linear LED High Bay Lights decay rate is just 1% using 10000HRS;
4. Linear LED High Bay Light, we have 80W, 120W, 150W, 200W, customized power also available.
Primary Competitive Advantages of industrial Linear high bay LED Light:
1. Using high chrome plating fins aluminum as heat sinks.
2. Using SMD 3030 LED chips.
3. Using Meanwell power drivers.
4. IP level is IP65,Can be used in factories, workshops, super markets, warehouses etc.
5. Base: Hook with safety rope.
6. Beam angle: 120 degree.
7. With two pieces safety cable.
8. Energy saving than traditional lamp about 70%~80%.
9. Main part of heat dissipation is under the protection of several patents.
10.Compliance with CE&RoHS&FCC&PSE standard regulations.
11.Meeting the specifications of the traditional lamp can directly replace the traditional mercury lamp, No additional construction.
Installation Information of 12 0W LED High Bay Linear Light :
1.Check all the parts and accessories of
Linear LED High Bay Light
;
2.Must cut off the power supply before installation;
3.Make sure the linear High Bay Light is fixed tightly to the surface of place for installation ;
4.Connect the power line of
linear hugh bay
light with power supply, then switch on the power.
5.When the
Linear
highbay light is working, it must be kept vertical downward.
Applications of Linear H igh Bay LED light :
1. Workshop and factory lighting.
2. Shopping mall lighting.
3. Museum and stadium lighting.
4. Highway toll station and gas station lighting.
5. Warehouse and smeltery lighting.
Strict Tests of industrial LED Linear High Bay Lighting :
Before shipping, all the Linear LED High Bay Lights will be over 24 hours aging tested, inspection department will test 100% products including light up test , power wattage test , high-Voltage test , waterproof test , ground connection test and so on, d efective rate is controlled less than 0.1% . Quality is ensured, you can be assured.
We have CE,RoHS,SAA certifications and so on.So you can rest assured to use our products.
Packaging of 120W linear LED High Bay Lighting :
Our individual package maximize protecting the linear
high bay
lights from transfer damage in transit.
1.Label on backside of each linear
High Bay Lights and your required label is available.
2.One piece linear LED High Bay Light per carton.
3.This is our regular packing of the Linear LED High Bay Light, if you need,we can also custom color packing and put your logo on it.
S hipping of Linear High Bay Light LED : By sea / air / express (DHL,FedEX,UPS,TNT etc.)
Big quantity advised to be shipped by sea.
Samples advised to be shipped by express.
Small quantity advised to be shipped by air.
