Quick Details
-
Product name:
-
conveyor belt tunnel excavation machine
-
Brand:
-
Kuangan
-
Loading capacity m³/h:
-
60
-
Maximum unloading height mm:
-
≥1360
-
Ground clearance mm:
-
≥180
-
Climbing ability°:
-
16
-
Walking speed m/s:
-
≥0.29
-
Whole machine quality kg:
-
6300±300
-
Digging distance mm:
-
≥1620
-
Digging height mm:
-
≥2600
Quick Details
-
Weight (KG):
-
6300
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Kuangan
-
Product name:
-
conveyor belt tunnel excavation machine
-
Brand:
-
Kuangan
-
Loading capacity m³/h:
-
60
-
Maximum unloading height mm:
-
≥1360
-
Ground clearance mm:
-
≥180
-
Climbing ability°:
-
16
-
Walking speed m/s:
-
≥0.29
-
Whole machine quality kg:
-
6300±300
-
Digging distance mm:
-
≥1620
-
Digging height mm:
-
≥2600
Product Description
Multifunction Factory Price coal mine Backhoe excavator Loader

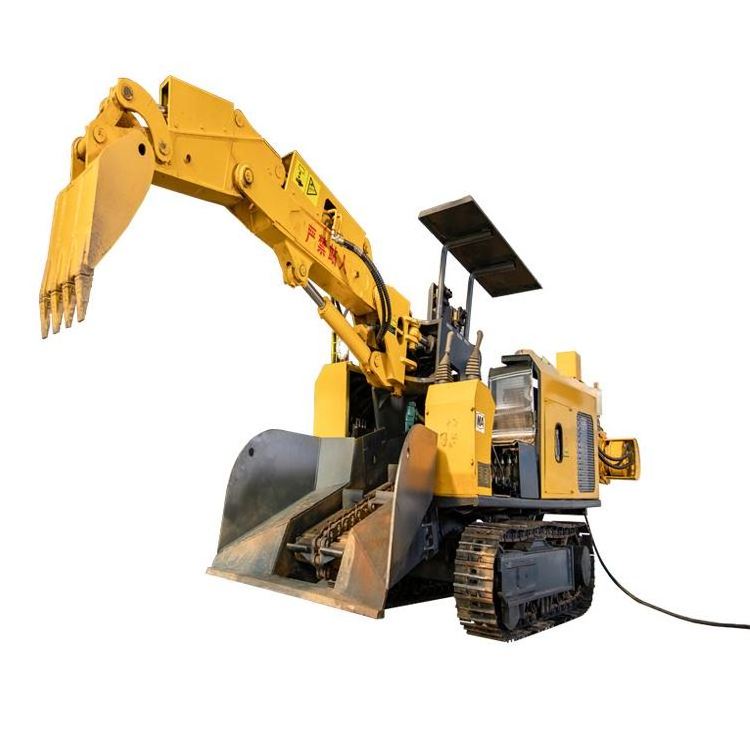

ZWY series crawler conveyor Crawler Loader is a continuous working high-efficiency mining equipment, mainly used for mining operations in narrow spaces, such as metal mines, non-metal mines, drinking water ports, etc., which main role is to collect various project gravel and soil materials and transported and loaded into trucks.
Composition and working principle
The excavating loader for coal mines is composed of seven parts: arm mechanism, scraper conveyor mechanism, crawler walking assembly, frame assembly, hydraulic operating system, driving shed, and electrical system.
Propelled by the crawler first, letting the front part of the scraper filled with stones, and then using a bucket to scrabble the stones into the scraper conveyor, which transports the stone to the back, unloads them into a dump truck, shuttle car or other transfer device. You can also use a bucket to clean the working surface or pick up the distant stone material into the inlet.
Features
a. The sturdy structure (scraper mechanism, frame, bucket, boom) is specially designed and manufactured to cope with the most demanding excavation conditions
In order to extend the service life and ensure continuous production, buckets, booms, and arms are made of high-strength steel and solid castings that eliminate thermal stress.
To create reliable abrasion resistance, stable and durable. The key joints adopt full penetration, special-shape, grounded welds. Perform UT inspection on important welds to ensure first-class welding quality.
With the strongest protection capability, extremely heavy-duty bucket can be used in high-density stone and strong excavation applications. The bucket surface is made of hardened and wear-resistant Material.
The booms and arms are made of high-strength steel and solid castings, which are firmly connected together and eliminate thermal stress
.
Specification
|
Model
|
|
ZWY-60/22L
|
ZWY-30/18.5L
|
|
|
Loading capacity m³/h
|
|
60
|
30
|
|
|
Digging distance mm
|
|
≥1620
|
≥1350
|
|
|
Digging width mm
|
|
≥3680
|
≥3050
|
|
|
Loading width mm
|
|
≥3680
|
≥3050
|
|
|
Digging height mm
|
|
≥2600
|
≥2200
|
|
|
Digging depth mm
|
|
≥500
|
≥400
|
|
|
Maximum unloading height mm
|
|
≥1360
|
≥1200
|
|
|
Ground clearance mm
|
|
≥180
|
≥160
|
|
|
Track average ground pressure MPa
|
|
≤0.1
|
≤0.1
|
|
|
Minimum turning radius of crawler m
|
|
≤3
|
≤2.5
|
|
|
Climbing ability°
|
|
16
|
16
|
|
|
Walking speed m/s
|
|
≥0.29
|
≥0.15
|
|
|
Rated working pressure MPa
|
|
15
|
15
|
|
|
Main motor power kW
|
|
twenty two
|
18.5
|
|
|
Whole machine quality kg
|
|
6300±300
|
3800±200
|
|
|
Electrical insulation
|
Three-phase
|
＞1.5
|
＞1.5
|
|
|
|
MΩ
|
|
|
|
|
|
Alternate
|
＞1.5
|
＞1.5
|
|
|
|
MΩ
|
|
|
|
|
Dimensions in transport state
|
Length mm
|
6130±50
|
4820±50
|
|
|
|
Width mm
|
1575±50
|
1250±50
|
|
|
|
Height mm
|
2100±50
|
1720±
|
|
