HDPE double wall corrugated drainage pipe making machine Large diameter double wall drainage pipe production line

HDPE double wall corrugated drainage pipe making machine Large diameter double wall drainage pipe production line

FOB Reference Price: Get Latest Price

≥1 Sets

US $198000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Screw Speed (rpm):: 90 rpm

Place of Origin:: Shandong, China

Brand Name:: WELL

Voltage:: Customized

Dimension(L*W*H):: Customized

Power (kW):: 38

Weight:: 20000 KG

Name:: PE Krah Pipe Production Line

Raw material:: PE PVC

Keywords:: PVC PE Pipe Extruder Line

Usage:: Plastic Extrusion

Final product:: PE PPR HDPE Pipe

After Warranty Service:: Video technical support, Online support, Spare parts

Inverter:: ABB

Automatic Grade:: High Automation

Motor:: SIEMENS Brand

Quick Details

Screw Design:: Single-screw

Screw L/D Ratio:: 33:1

Screw diameter (mm):: 150

Screw Speed (rpm):: 90 rpm

Place of Origin:: Shandong, China

Brand Name:: WELL

Voltage:: Customized

Dimension(L*W*H):: Customized

Power (kW):: 38

Weight:: 20000 KG

Name:: PE Krah Pipe Production Line

Raw material:: PE PVC

Keywords:: PVC PE Pipe Extruder Line

Usage:: Plastic Extrusion

Final product:: PE PPR HDPE Pipe

After Warranty Service:: Video technical support, Online support, Spare parts

Inverter:: ABB

Automatic Grade:: High Automation

Motor:: SIEMENS Brand

1. The extrusion line is equipped with two extruders, double-layer coextrusion, stable extruded materials and excellent
plasticization.

2. The imported proportional control valve regulates the forming air pressure, which is stable and reliable.

3.Double channel spiral composite extrusion die, and the die surface is nitrided and polished.

4. Double layer wall thickness adjusting device.

5. The pipe is online double-layer socket flared.

6. The horizontal, horizontal and vertical directions of the workbench are three-dimensional adjustable.

7. When the workbench is powered off, it will automatically exit the protection system.

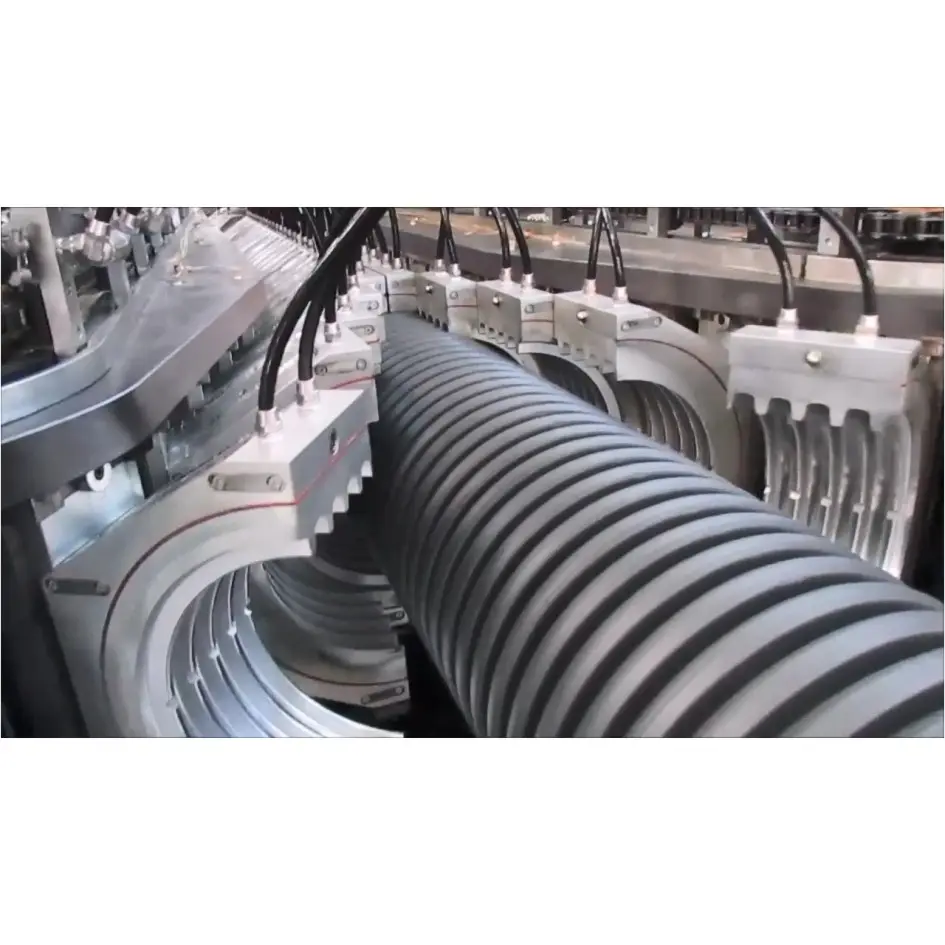

8. The module is made of special aluminum alloy, which has the characteristics of light weight, high strength, good wear

resistance and small coefficient of thermal expansion.

9. The molding module is air-cooled and water-cooled, with good cooling effect and fast molding speed.

10. The whole production line adopts PLC microcomputer control system to visually display melt temperature, pressure, forming speed, fault alarm, etc.

11. High efficiency single screw extruder (using pellets) and energy-saving twin screw extruder (using powder or pellets) are available.

1. Underground drainage, sewage and ventilation pipeline system of municipal buildings
2. Industrial drainage and sewage pipeline system

3. Drainage and irrigation pipeline system of farmland, orchard, vegetable garden and forest belt

4. Rainwater collection, comprehensive utilization, pipeline system

5. Urban pipe gallery, road, bridge,
mineral, airport, station and other public facilities pipeline system

6. Drainage pipeline system of other non load bearing places
7. Power pipeline protection

Model	Pipe Range(mm)	Extruder Model	Main Motor	Max Capacity(pcs)
WR-63	16-63	SJ-60/38	110KW	400
WR-110	20-110	SJ-60/38	110KW	400
WR-160	40-160	SJ-60/38	110KW	400
WR-250	50-250	SJ-75/38	160KW	600
WR-400	160-450	SJ-90/38	220KW	1000
WR-630	250-630	SJ-120/38	280KW	1000
WR-800	315-800	SJ-120/38	315KW	1200
WR-1200	500-1200	SJ-120/38	355KW	1200
WR-1600	1000-1600	SJ-90/38+SJ-90/38	250KW+250KW	2000
