Quick Details
-
Application:
-
Construction
-
Rated Lifting Moment:
-
9500 kN.m
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Evangel
-
Weight (KG):
-
800000 kg
-
Dimensions:
-
18210*3980*4000 mm
-
Engine Model:
-
OM460LA.E3A/5
-
Engine Rated Power:
-
194 kw
-
Max.travel speed:
-
75 km/h
Quick Details
-
Rated Loading Capacity:
-
650 ton
-
Max. Lifting Height:
-
82 m
-
Engine Brand:
-
IMPORTED
-
Application:
-
Construction
-
Rated Lifting Moment:
-
9500 kN.m
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Evangel
-
Weight (KG):
-
800000 kg
-
Dimensions:
-
18210*3980*4000 mm
-
Engine Model:
-
OM460LA.E3A/5
-
Engine Rated Power:
-
194 kw
-
Max.travel speed:
-
75 km/h
Products Description

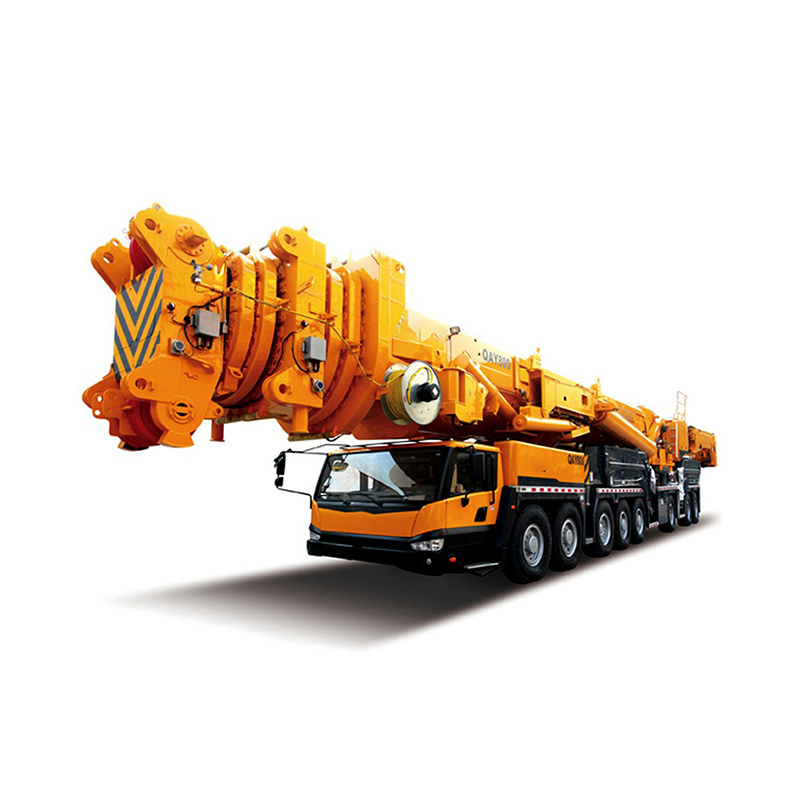

All Terrain Crane QAY800
1.
QAY800 adopts 7-segment oval boom, the length is 84m. The boom can be separated into two parts. After dismantling the 5th-7th segments and installing a 2.5m independent boom head, the length of the boom is 52m, forming a 4-segment short-boom product; on that basis, installing the tower boom will improve the performance of the super-lift, which is specially designed for lifting the 2MW wind power.
2. QAY800 adopts 8-axle chassis, full-wheel steering, and X outrigger structure. The front and back swing can be realized by the cylinder. The lateral outrigger span is 13m.
3. To transfer the machine flexibly and facilitate the assembling and disassembling of the boom, the boom is added a
self-assembling and self-disassembling device which is controlled by the independent power producer. The weight of QAY800 in travel is 96t, carrying all the outriggers and the whole turntable. The boom is transported independently.
2. QAY800 adopts 8-axle chassis, full-wheel steering, and X outrigger structure. The front and back swing can be realized by the cylinder. The lateral outrigger span is 13m.
3. To transfer the machine flexibly and facilitate the assembling and disassembling of the boom, the boom is added a
self-assembling and self-disassembling device which is controlled by the independent power producer. The weight of QAY800 in travel is 96t, carrying all the outriggers and the whole turntable. The boom is transported independently.
Specification
|
Parameter Item
|
|
Scale
|
Unit
|
|
|
Dimensions
|
Overall length
|
18210
|
mm
|
|
|
|
Overall width
|
3980
|
mm
|
|
|
|
Overall height
|
4000
|
mm
|
|
|
Weight
|
Dead weight in travel state
|
79680
|
kg
|
|
|
|
1st axle
|
11625
|
kg
|
|
|
|
2nd axle
|
11201
|
kg
|
|
|
Power
|
engine model
|
OM460LA.E3A/5
|
|
|
|
|
engine rated output
|
194/2100
|
KW/(r/min)
|
|
|
|
engine rated torque
|
2700/1080
|
N.m/(r/min)
|
|
|
Travel
|
Max.travel speed
|
75
|
|
|
|
|
Min.turning diameter
|
24
|
m
|
|
|
|
Min.ground clearance
|
460
|
mm
|
|
|
Lifting Performance
|
Max.total rated lifting load
|
800
|
t
|
|
|
|
Min.rated working radius
|
3
|
m
|
|
|
|
Turning radius at swing table tail
|
4090
|
mm
|
|
|
|
Base boom amx.load moment
|
1690
|
kn.m
|
|
|
|
Base boom
|
10.3
|
m
|
|
|
|
Full-extended boom
|
38.2
|
m
|
|
|
|
Full-extended boom+Jib
|
55
|
m
|
|
|
|
Outrigger longitudinal distance span
|
8.7
|
m
|
|
|
|
Outrigger lateral distance span
|
9.2
|
m
|
|
