RS Radio 1500W FM transmitter complete equipments of radio station package

RS Radio 1500W FM transmitter complete equipments of radio station package

FOB Reference Price: Get Latest Price

≥2 Sets

US $3230

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Product name:: RS FM transmitter

Frequency Range:: 87.0MHz~108 MHz

Frequency Setting step:: 10KHz

Carrier Frequency precision:: ±200Hz

Residual Wave Radiation:: ≥65dBc

Audio Input Impedance:: 600Ω,Balance

Separation:: 60dB Pilot Signal Modulation:8%~10%

Audio Input Level:: ±10dBm,step 0.01dB

S/N:: ≥75dB(30H~15kHz,100%)

Certification:: FCC

Quick Details

Place of Origin:: China

Brand Name:: RS RADIO

Model Number:: RS-1500W-P

Product name:: RS FM transmitter

Frequency Range:: 87.0MHz~108 MHz

Frequency Setting step:: 10KHz

Carrier Frequency precision:: ±200Hz

Residual Wave Radiation:: ≥65dBc

Audio Input Impedance:: 600Ω,Balance

Separation:: 60dB Pilot Signal Modulation:8%~10%

Audio Input Level:: ±10dBm,step 0.01dB

S/N:: ≥75dB(30H~15kHz,100%)

Certification:: FCC

Professional Touch screen FM Transmitter Complete Package

Thank you for your interest in RS RADIO FM transmitter equipment Package! Our FM transmitters are able to fulfill many of your audio transmission needs and provide you with a complete solution.

Whether you need to set up a wireless transmission system for events such as concerts, conferences, sports competitions, etc., or to distribute voice or music in schools, companies, churches, etc., our FM transmitters can provide you with high-quality, stable and reliable signal transmission.
If you are interested in our FM transmitters or have any questions, please feel free to contact our RS RADIO team, we will be happy to provide you with support and assistance!

Products Description

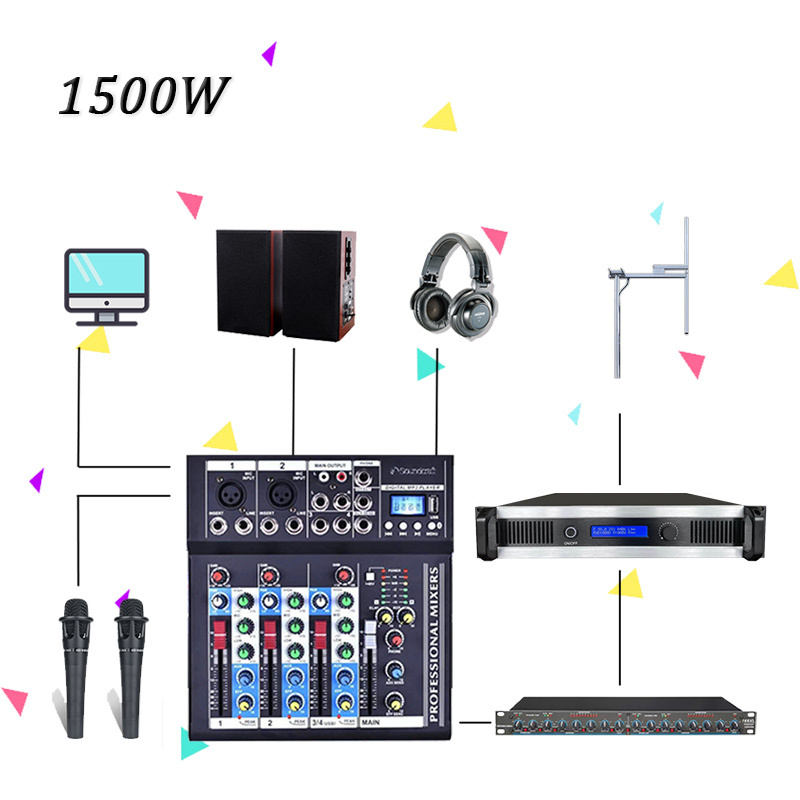

Package Include

Technical Specifications

The DSP(Digital Sound Processing) technology makes the RS FM transmitter an enjoyable sound broadcasting device for all music lovers, you’ll no longer be bothered by the noises or distortions.

As quality assurance, RS RADIO Provides 5 YEAR warranty for this professional broadcast transmitter, you’ll have no worries to use it for the radio station .

1. Frequency Range：	87.50MHz～108MHz
2. Frequency Setting step:	10KHz
3. Carrier Frequency precision：	±200Hz
4.Residual Wave Radiation:	≥65dBc
5.Audio Input Impedance:	600Ω,Balance
6.Separation：60dB Pilot Signal,Modulation:	8%~10%
7. Sub-carrier Suppression:	≥65dB
8. Audio Input Level:	±10dBm,step 0.01dB
9.S/N:	≥75dB(30H~15kHz,100%)
10.Audio Harmonic Distortion:	<0.05%
11.Audio response:	±0.05dB(30Hz~15KHz)
12.Output Load Impedance:	50Ω
13.Output Power:	0~1500W
14.Deviation: ±75kHz	≤0.01% (30Hz ~ 15000Hz, 100% modulation)
15.Size:	460mm480mm88mm
16.Weight:	15KG

1 -bay Dipole Antenna

Certification:CNAS
Place of Origin:China
Brand Name:RS RADIO
Frequency Range:87.5Mhz-108Mhz
Impedance:50ohm
Connector:NK
VSWR:<1.35:1 MAX
Polarization:Vertical
Dimensions:1400*900*50mm
Weight:4kg with hardware mounting
Gain:2.0dB
Max handle power:2KW

Feeder Cable

30meters 1/2" feeder cable

Audio Processor

Very large signal processing of program signals is possible; classic compression plus the latest AUTODYNAMIC automatic change and recovery control optimizes each channel or program signal; the latest noise gate circuitry automatically calculates the smoothest recovery characteristics. Independent LED display for more intuitive operation. Stereo two-way mono; balanced inputs; chain side by side plug-in contacts

4 Channel Mixer

1. 3-band equalization, independent processing Each mono channel comes with 3-band equalization with independent adjustment of high school and bass, which can be used for delicate processing of vocals and music at any time. 2. Intelligent compatibility with various devices The tuner can be connected to a variety of types of audio equipment, convenient for use in a variety of occasions

Monitor Speakers

1. Distortion-limited output power:R/L:21W+21W 2.Rated sound frequency response range:55HZ-17KHz 3.Noise sound level:≤25dB(A) 4.Input sensitivity: Line In 1(high) Line In 1(high): 550±50mV Line In 2(low): 750±50mV Bluetooth input: 450±50mFFS 5. Signal-to-noise ratio dB(A): ≥85dB(A)

Microphone Stand

Microphone

Studio Headphone

Features

* PRIMARY APPLICATION: high quality at a very attractive price.Ideal for use as transmitters in stand-alone applications.Adjustable power output from 10 to 100%.
* RELIABILITY/CONTINUITY: APC (Automatic Power Control) and Foldback protection ensure reliable operation under any operating conditions.
* AUDIO PERFORMANCE: low distortion and intermodulation values and a high noise/signal ratio.
* OPERATING EFFICIENCY: incorporate a PFC (Power Factor Corrector) power supply, that provides the utmost efficiency for enhanced energy saving and environmental protection, which added to LD-MOSFET technology ensure high efficiency, better than 70% across the bandwidth.
* EASE OF MAINTENANCE: advanced module engineering ensures extreme of access and simple maintenance. Includes an high performance air filter. The power supply is plug-in type, easily removable.
* INTERFACE CONTROL: t otal control thanks to microprocessor easily programmed from menu with all key parameters displayed on LCD.
* INPUT/OUTPUT INTERFACE: b uilt-in high-performance stereo coder, L&R analogue audio inputs, Mono inputs, MPX composite signal and auxiliary inputs for SCA / RDS signals. TOSLINK, AES/ EBU digital audio inputs are available as an option.
* REMOTE CONTROL: built-in telemetry system via GSM modem or via WEB/SNMP (option).
* REGULATORY COMPLIANCE: state-of-the-art technology in full compliance with EC, FCC and CCIR standards.

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------
