Quick Details
-
Grade:
-
TP304 / 304L
-
Surface Finish:
-
BA
-
Invoicing:
-
by actual weight
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
MTSCO
-
Model Number:
-
ASTM A269 / ASTM A213 Etc
-
Application:
-
structure
-
Outer Diameter:
-
50mm
-
Hardness::
-
150HV-200HV
-
Tensile strength::
-
Greater than 700MPa
-
Single length::
-
100Meter-800Meter
-
Pressure::
-
50MPa-300MPa
-
Product name:
-
Stainless Steel Tube
-
Surface:
-
Bright Finish
-
MOQ:
-
1 Ton
-
Sample:
-
Avaliable
-
Material Grade:
-
304 306
Quick Details
-
Type:
-
Welded
-
Steel Grade:
-
316L, 316, 304, 304L
-
Tolerance:
-
According customer requirement
-
Grade:
-
TP304 / 304L
-
Surface Finish:
-
BA
-
Invoicing:
-
by actual weight
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
MTSCO
-
Model Number:
-
ASTM A269 / ASTM A213 Etc
-
Application:
-
structure
-
Outer Diameter:
-
50mm
-
Hardness::
-
150HV-200HV
-
Tensile strength::
-
Greater than 700MPa
-
Single length::
-
100Meter-800Meter
-
Pressure::
-
50MPa-300MPa
-
Product name:
-
Stainless Steel Tube
-
Surface:
-
Bright Finish
-
MOQ:
-
1 Ton
-
Sample:
-
Avaliable
-
Material Grade:
-
304 306

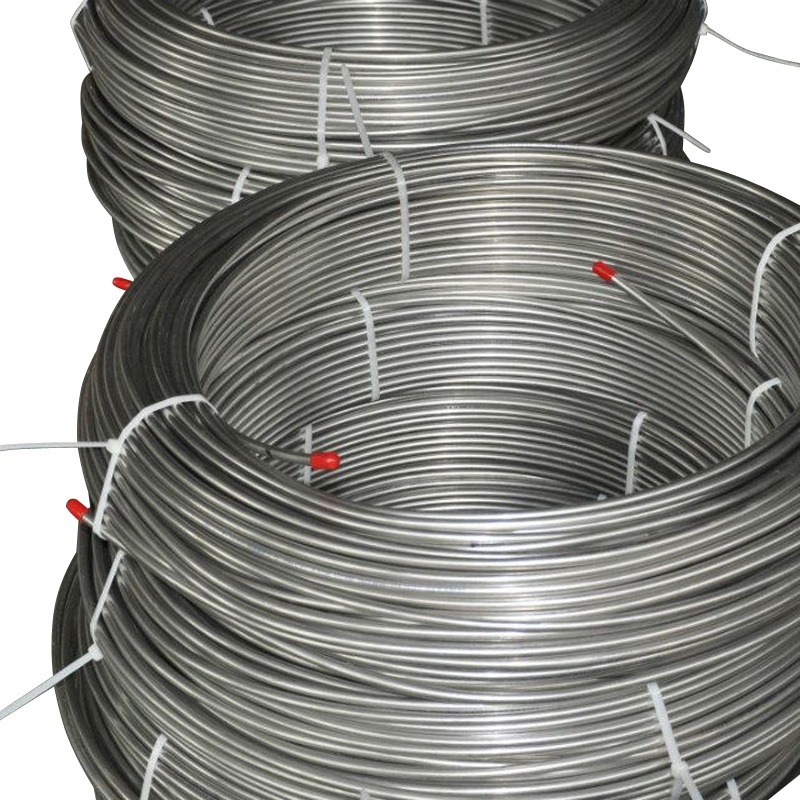

Wholesale TP304 / 304L Bright Finish surface Welded Stainless Steel Coiled Tubing/chemical injection line/control line for sale
| Material: | S30400 / S31600 | Standard: | ASTM A269 / ASTM A213 Etc |
|---|---|---|---|
| Delivery Condition: | Soft / Hard | Every Coil: | About 30Kgs Per / Coil |
| Type: | Seamless | Surface: | Bright Annealed / Pickled |
Material Grade :
| American Standard | TP304 , TP304L , TP310S , TP316 , TP316L , TP316Ti , TP321 , TP347 , 904L Etc |
| European Standard | 1.4301 , 1.4306 , 1.4845 , 1.4401 , 1.4404 , 1.4571 , 1.4541 , 1.4550 , 1.4539 Etc |
| German Standard |
X5CrNi18-10 , X2CrNi19-11 , X12CrNi25-21 , X5CrNi17-12-2 , X5CrNi17-12-3 , X2CrNiMo18-14-3 , X6CrNiTi18-10 , X6CrNiTb18-10 Etc |
Application
a) For fluid & gas transport
b) Structure & machining
c) Petrochemical
d) Environmental protection
e) Electricity
f) Instrument industry etc
Advantages
a) Superior surface finish
b) Better mechanical property
c) More precise dimension
d) Perfect inspection method and inspection equipment
ASTM A213 / A213M Chemical Composition :
| Elements | 304L(wt%) S30403 | 304(wt%) S30400 | 316L (wt%) S31603 | 316 (wt%) S31600 |
| (C) Carbon, max | 0.035 | 0.08 | 0.035 | 0.08 |
| (Mn) Manganese, max | 2 | 2 | 2 | 2 |
| (P) Phosphorus, max | 0.045 | 0.045 | 0.045 | 0.045 |
| (S) Sulfur, max | 0.03 | 0.03 | 0.03 | 0.03 |
| (Si) Silicon, max | 1 | 1 | 1 | 1 |
| (Ni) Nickel | 8.0 - 12.0 | 8.0 - 11.0 | 10.0 - 14.0 | 10.0 - 14.0 |
| (Cr) Chromium | 18.0 - 20.0 | 18.0 - 20.0 | 16.0 - 18.0 | 16.0 - 18.0 |
| (Mo) Molybdenum | N/A | N/A | 2.0 - 3.0 | 2.0 - 3.0 |
| (Fe) Iron | Bal. | Bal. | Bal. | Bal. |
| (Cu) Copper | N/A | N/A | N/A | N/A |
| (N) Nitrogen | N/A | N/A | N/A | N/A |
Chemical Composition :
| Material | ASTM A269 Chemical Composition % Max | ||||||||||
| C | Mn | P | S | Si | Cr | Ni | Mo | N B | Nb | Ti | |
| TP304 | 0.08 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-11.0 | ^ | ^ | ^. | ^ |
| TP304L | 0.035 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-12.0 | ^ | ^ | ^ | ^ |
| TP316 | 0.08 | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 10.0-14.0 | 2.00-3.00 | ^ | ^ | ^ |
| TP316L | 0.035 D | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 10.0-15.0 | 2.00-3.00 | ^ | ^ | ^ |
| TP321 | 0.08 | 2 | 0.045 | 0.03 | 1 | 17.0-19.0 | 9.0-12.0 | ^ | ^ | ^ | 5C -0.70 |
| TP347 | 0.08 | 2 | 0.045 | 0.03 | 1 | 17.0-19.0 | 9.0-12.0 | 10C -1.10 | ^ | ||
| Size | OD : 4.76 - 25.4mm |
| WT : 0.71 - 2.11mm | |
| Length : >1000Meters | |
| 4.76 * 0.71mm / 4.76 * 0.89mm / 4.76 * 1.24mm | |
| 6 * 1mm / 6 * 1.5mm | |
| 6.35 * 0.71mm / 6.35 * 0.89mm / 6.35 * 1.24mm / 6.35 * 1.65mm | |
| 7.94 * 0.71mm / 7.94 * 0.89mm / 7.94 * 1.24mm / 7.94 * 1.65mm | |
| 9.53 * 0.71mm / 9.53 * 0.89mm / 9.53 * 1.24mm / 9.43 * 1.65mm | |
| 10 * 1mm / 10 * 1.5mm | |
| 12 * 1mm / 12 * 1.5mm / 12 * 2mm | |
| 12.7 * 0.71mm / 12.7 * 0.89mm / 12.7 * 1.24mm / 12.7 * 1.65mm / 12.7 * 2.11mm | |
| 14 * 1mm / 14 * 1.5mm / 14 * 2mm | |
| 15.88 * 0.89mm / 15.88 * 1.24mm / 15.88 * 1.65mm / 15.88 * 2.11mm | |
| 16 * 1mm / 16 * 1.5mm / 16 * 2mm | |
| 19.05 * 0.89mm / 19.05 * 1.24mm / 19.05 * 1.65mm / 19.05 * 2.11mm | |
|
25.4 * 0.89mm / 25.4 * 1.24mm / 25.4 * 1.65mm / 25.4 * 2.11mm |
