Quick Details
-
Brand Name:
-
BEIERMAN
-
Voltage:
-
220/380/400/415/440/480V
-
Power:
-
52KW
-
Dimension(L*W*H):
-
10000*2500*2400mm
-
Weight:
-
3500 kg
-
Extruder design:
-
Single screw extruder
-
Extruder style:
-
SJ45 or SJ50,or SJ65
-
Suitable for:
-
PP or PE or PVC raw material
-
pipe corrugated type:
-
single wall
-
for pipe diameter:
-
12mm,16mm,20mm,25mm,32mm
-
Temperature controller:
-
OMRON/FUJI/RKC
-
Contactor,button switch:
-
SIEMENS/Schneider
-
Inverter:
-
ABB/DELTA/LS
-
After Warranty Service:
-
Video technical support
-
Certification:
-
CE Certificate
Quick Details
-
Pipe Material:
-
PE
-
Production Capacity:
-
8-12meter/min
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
BEIERMAN
-
Voltage:
-
220/380/400/415/440/480V
-
Power:
-
52KW
-
Dimension(L*W*H):
-
10000*2500*2400mm
-
Weight:
-
3500 kg
-
Extruder design:
-
Single screw extruder
-
Extruder style:
-
SJ45 or SJ50,or SJ65
-
Suitable for:
-
PP or PE or PVC raw material
-
pipe corrugated type:
-
single wall
-
for pipe diameter:
-
12mm,16mm,20mm,25mm,32mm
-
Temperature controller:
-
OMRON/FUJI/RKC
-
Contactor,button switch:
-
SIEMENS/Schneider
-
Inverter:
-
ABB/DELTA/LS
-
After Warranty Service:
-
Video technical support
-
Certification:
-
CE Certificate

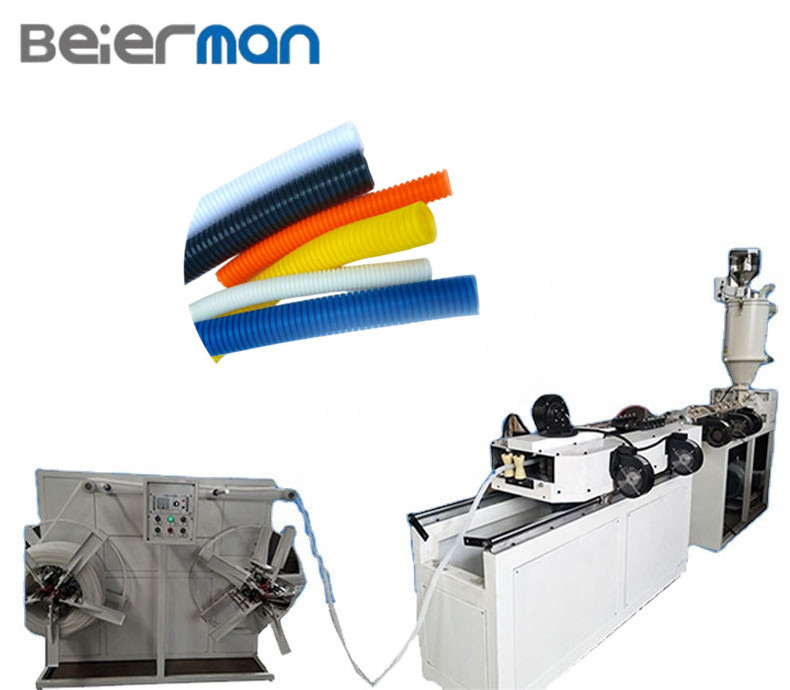

Zhangjiagang city Beierman Machinery single wall corrugated pipe making machines , specially designed for PE single wall corrugated pipes making, we also supply PP, PVC single wall corrugated pipe making machines.
there are 8-50mm corrugated pipe line , there are 63-75-110mm corrugated pipe line.
Pipe Diameter range: 8mm,12mm,16mm, 20mm, 25mm, 32mm,40mm,50mm. single wall corrugated Pipe Outlets.
Major parts of PP PE single wall corrugated pipe making line :
|
No.
|
Major parts
|
Detail information
|
|
1
|
Vacuum loader+hopper dryer
|
loader pump:0.75KW;
hopper heater:6KW;blower:0.25KW;hopper volume:50L. |
|
2
|
SJ50/30 Single screw extruder
|
Driving motor:11KW,heating:4KW*3;cooling:0.18KW*3
|
|
3
|
Die head with forming mould
|
8-50mm:8mm,12mm,16mm,20mm,25mm,32mm,40mm,50mm;
material:40Cr, 54pairs forming module per set. |
|
4
|
Forming machine
|
Driving motor:2.2KW,Cooling:0.18KW*3,material:40Cr
|
|
5
|
Double station winder
|
16NM,winding release:air cylinder.
|
Advantages
- world famous brands major parts:
|
Motor
|
SIEMENS
|
|
Inverters
|
ABB/DELTA/LS
|
|
Contactors
|
Schneider/SIEMENS
|
|
Temperature controllers
|
OMRON/RKC/FUJI
|
|
PLC system
|
SIEMENS/DELTA
|
- Skilled workers for machines producing
- Experience engineers all with passports ready for customers services
- Good Prices get from square quantity major parts purchase with lower cost
- Full line running test for customer checking before delivery
- Zhangjiagang Beierman Machinery Co.,Ltd. is a modern factory, which engaged in the plastic extrusion machines and recycling machines' researching,manufacturing and sales.
-Our professional research teams,sales teams,rich experience and processing equipment will offer customers high quality machines and perfect after sales services.
-High quality,Quick services,Mutually beneficial principle will be our promise to customers around the world.
Ribbon mixer, low speed mixer~~~for PVC powder;
Hopper dryer mixer~~~for plastic granules;
Color mixer~~~for plastic granules.
2, PC/PMMA/ABS LED light diffuser,bottom tube making line.
3,PVC Supermarket Price tag profile production line; Soft seal production line; Rigid rod production line.
4,Single screw extruder;
5,Conical twin screw extruder;
6, 2layer; 3 layer;4 layer PPR pipe co-extrusion line; PPR, PE, HDPE, PE-RT pipe production line;
7, Corrugated pipe extrusion line (Single wall corrugated; Double wall corrugated);
8, 3 layer PVC pipe co-extrusion line; PVC pipe production line;
9, PVC 2 cavity pipe production line;
10, PVC 4 cavity pipe production line;
11,Pipe belling machine;
12, PVC rain gutter profile line; Trunking/panel profile line;WPC profile production line; and 2 layer PVC profile co-extrusion
line;
13, Granulating line-water ring granulating,or string granulating (PP PE );
14, Granulating line-hot die face granulating (PVC).
