Quick Details
-
Model Number:
-
M-CVDW
-
Customized support:
-
NO
Quick Details
-
Port Size:
-
DN50-DN600
-
Warranty:
-
2 years
-
Place of Origin:
-
United States
-
Model Number:
-
M-CVDW
-
Customized support:
-
NO
Products Description

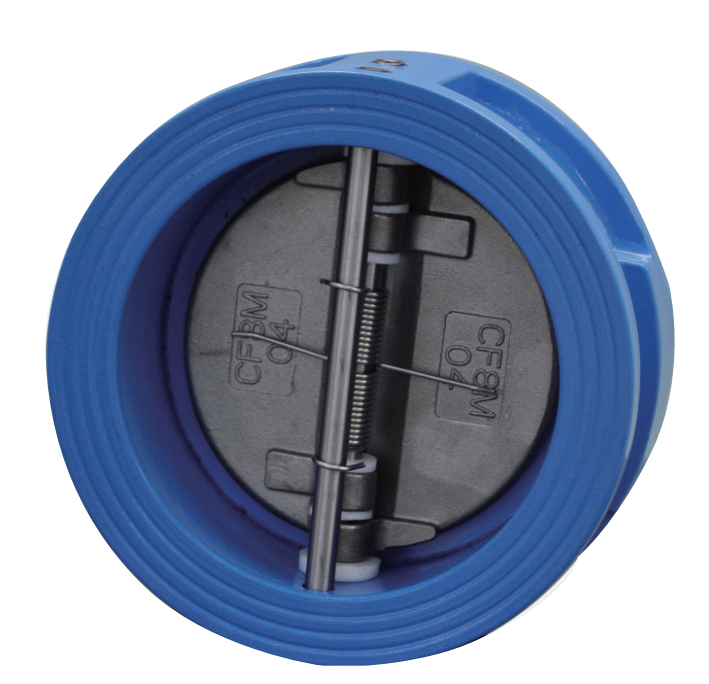

The M-CVDW series clamp type double plate check valve is mainly used for HVAC and water supply systems can effectively prevent medium backflow.
Technical parameter
Product model M-CVDW
Valve standard DIN 3202
Flange standard EN1092-2
Nominal pressure PN 16
Valve diameter DN 50 to DN 600
Test pressure
Shell test: 2.4 MPa
Sealing test: 1.76 MPa
Working temperature -20 ℃ to 110 ℃
Applicable medium water
Material
Valve body ductile iron
Valve plate stainless steel 304
Valve seat EPDM
Valve shaft stainless steel 316
Spring stainless steel 316
