- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
220V/380V, 220V/380V
-
Power:
-
6KW, 6KW
-
Dimension(L*W*H):
-
2350*1110*2000mm
-
Weight:
-
2000 kg
-
Product name:
-
Paper Cup Making Machine Automatic
-
Function:
-
Marking Paper Cup
-
Finished Products:
-
Disposable paper cup
-
size:
-
2350*1110*2000MM
-
weight:
-
2000KG
-
Output paper:
-
80-100PCS/MIN
Quick Details
-
Production Capacity:
-
80-100 pcs/min
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
SURE
-
Voltage:
-
220V/380V, 220V/380V
-
Power:
-
6KW, 6KW
-
Dimension(L*W*H):
-
2350*1110*2000mm
-
Weight:
-
2000 kg
-
Product name:
-
Paper Cup Making Machine Automatic
-
Function:
-
Marking Paper Cup
-
Finished Products:
-
Disposable paper cup
-
size:
-
2350*1110*2000MM
-
weight:
-
2000KG
-
Output paper:
-
80-100PCS/MIN
Product Description

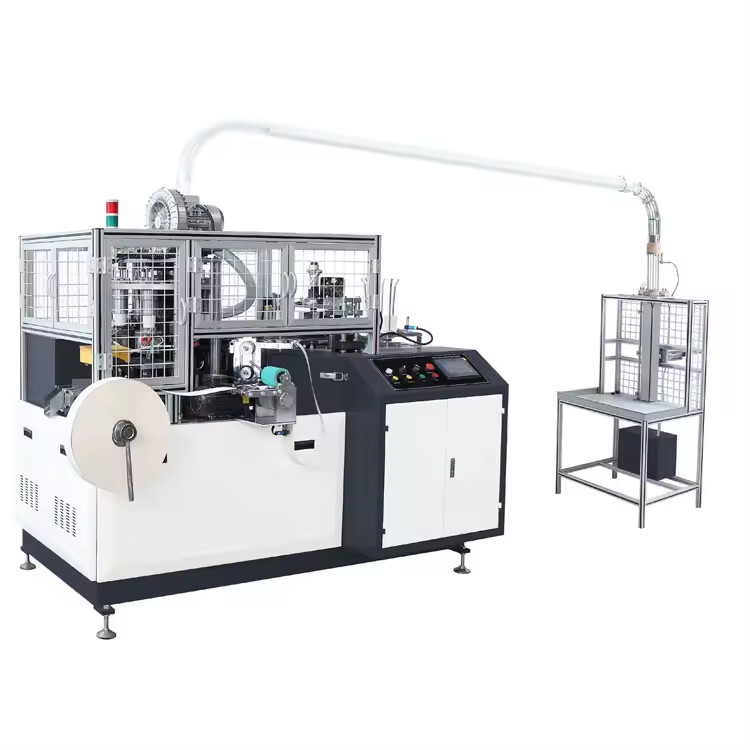

Disposable paper cup machine
Product description
The automatic high-speed ultrasonic paper cup forming machine uses a bench top, separating the mold system from the transmission system, and the transmission components are arranged inside the body below the countertop.
1. The overall structure under the automatic spray lubrication system;
2. Open CAM system;
3. Vertical shaft transmission system;
4. Gear system.
5.PLC touch screen system (optional)
Advantages
1. The flat fan sheet is fed multiple times and mediated multiple times to avoid the uneven sides of the fan paper and the problem of the fan sheet jamming.
2. The machine is equipped with 14 sensors to ensure the stable operation of each fan paper at each position, and if there is a position error or failure, the machine will activate the alarm system and automatically stop.
3. The machine and pulley and gear together, the parts are closely connected to each other, the machine runs without any loose, the machine runs more accurately.
4. The machine adopts direct paper feeding system for the bottom paper, servo motor for the bottom paper feeding, and automatic sensor for pre-feeding paper to avoid paper waste and reduce the problem of the bottom paper in the process of paper feeding.
5. The machine has a backing paper cutting system, which makes the discarded backing paper easier to recycle
6. The machine weighs 2 tons and can run stably at a speed of 100 machines per minute.
Sample Display
Specification
|
Power
|
6KW
|
|
Paper Requirement
|
150-400g/m²
|
|
Voltage
|
220V50HZ or 380V50HZ
|
|
Sizes Of Paper Cups That Can Be Made
|
1.5-16oz
|
|
Speed
|
80-100pcs/min
|
|
Weight
|
2000KG
|
|
Machine Size
|
2350*1110*2000
|
Packing & Delivery
