Quick Details
-
Material:
-
PU
-
Color:
-
Black
-
pneumatic lifting:
-
0-150mm
-
Seat backrest angle:
-
85 ° -150 °
-
Seat pedal range:
-
0-50mm
-
height adjustment:
-
60mm
-
seat inclination angle:
-
± 12 °
-
control:
-
4-point positioning
-
service:
-
last long
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
NM
-
Item:
-
Marine Bridge master chair Ship Helmsman PU adjustable seat
-
Material:
-
PU
-
Color:
-
Black
-
pneumatic lifting:
-
0-150mm
-
Seat backrest angle:
-
85 ° -150 °
-
Seat pedal range:
-
0-50mm
-
height adjustment:
-
60mm
-
seat inclination angle:
-
± 12 °
-
control:
-
4-point positioning
-
service:
-
last long

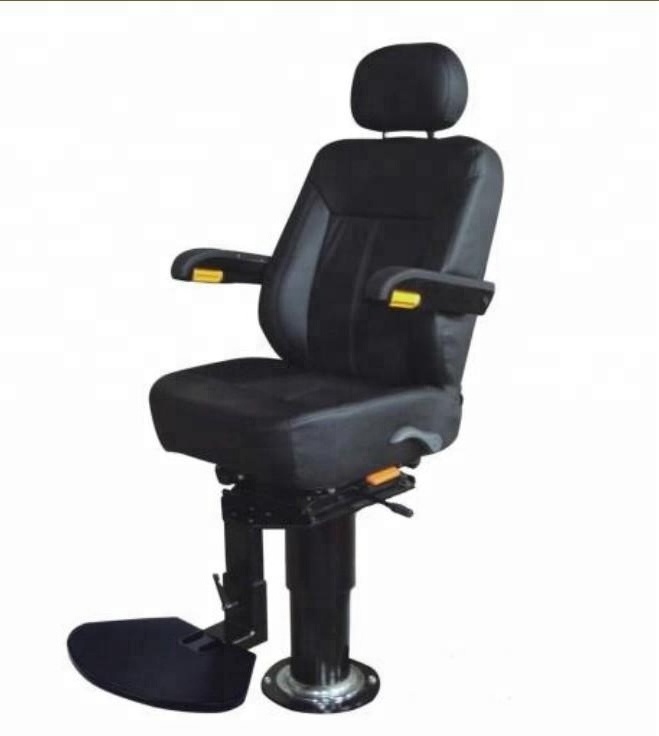

Marine Bridge master chair Ship Helmsman PU adjustable seat
Model: TR-001 without sliding rail.
Features of this pilot chair,/Helmsman seat/ferry seat
1.Ergonomic design;
2.Adjustable backrest and headrest;
3.chair height may be angle adjusted;
4.Marine chaircan be moved back and forth;
5.Folding / angle-adjustable comfortable chair armrest;
6.chaircan rotated 360 degrees, multi-point positioning;
7.Foot pedal height adjustable / folding;
8.Column can be vertically lifting;
Detailed description:
1.Lifting column with Aluminum alloy and stainless steel synthesis;
2.The chair lifting and tilting, move back and forth, back angle adjusting are used in steel structure ;
3. The chair back and the chair cushion adopts the steel inner core and PU cold foam forming disposable sponge synthesis, outsourcing leather or cloth ;
4. Pedal steel plate inner core and environmentally friendly rubber synthetic;
5. Pneumatic lifting core components pneumatic bar the use of German imports of Stabilus ;
Function data :
|
No. |
parameter |
details |
|
1 |
Upper part of the chair |
can be moved back and forth of 120mm,height adjustment 60mm, seat inclination angle range of ±12 ° |
|
2 |
chair backrest |
with adjustable angle of 85° -150° , the headrest adjusted up and down 50mm, hand rest multi-point positioning control |
|
3 |
Pneumatic lifting regulating range |
0-150mm |
|
4 |
positioning control |
can rotate 360° and locked ,4-point positioning control |
|
5 |
chair pedal |
Can rotate 90° and regression, upper and lower position adjusting range of 0-50mm; |
|
6 |
T orsion |
bear more than 150FT.LB torsion, reached AD grade standard |
production process
