Quick Details
-
Max. cutting force:
-
12 ton
-
Stroke adjustment:
-
5-65mm
-
Distance between upper and lower board:
-
50-120mm
-
Arm width:
-
350*450mm
-
Cutting table size:
-
400*800mm
-
Material:
-
Non-metal material
-
Voltage:
-
220V/380V, 50Hz/60Hz
-
Phase:
-
Single/3 phase
-
Key words:
-
shoemaking machine
-
Certification:
-
CE
Quick Details
-
Weight (KG):
-
380
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
XIANHE
-
Max. cutting force:
-
12 ton
-
Stroke adjustment:
-
5-65mm
-
Distance between upper and lower board:
-
50-120mm
-
Arm width:
-
350*450mm
-
Cutting table size:
-
400*800mm
-
Material:
-
Non-metal material
-
Voltage:
-
220V/380V, 50Hz/60Hz
-
Phase:
-
Single/3 phase
-
Key words:
-
shoemaking machine
-
Certification:
-
CE
Products Description

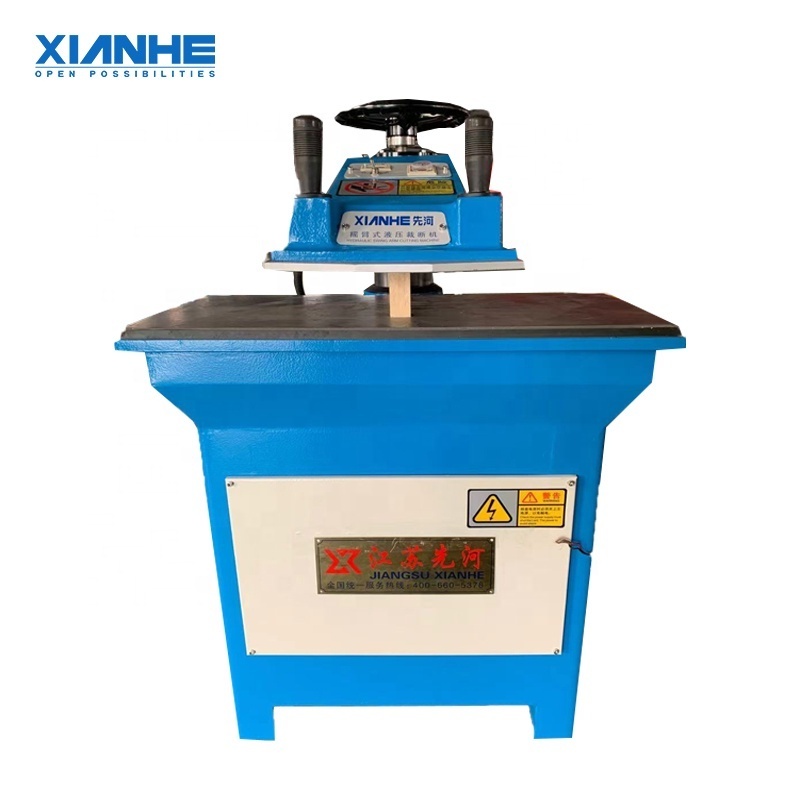

The starting point in our die cutting range with a huge range of uses and applications across manufacturing industry. Also known as clicking presses or clicker presses.
These machines are safe and simple to operate with the operator having only to place the material on the bed of the press,position the cutting tool on the material and press the twin, operating buttons. The beam descends under hydraulic power to cut the required cut shape from single or multiple layers of material.
To assure maximum access and visibility, the swing arm can be easily moved (or swung) to one side by the operator in order to gather cut pieces and re-position the tool for the next cut.
Product Parameters
| Model | SW/C-120 |
| Cutting force | 12Ton |
| Stroke range | 5-75mm |
| Distance between upper & lower board | 50-120mm |
| Arm width | 350*450mm |
| Working table size | 400*800mm |
| Power | 0.75kw |
| Gross weight | 380kg |
| Machine size | 800*650*1240mm |
