Comprehensive OEM solutions designed for every scenario of your fleet surveillance.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
EMV
-
Model Number:
-
EMV004AH
-
Style:
-
Rear View Camera
-
Video Compression Format:
-
H.264/H.265
-
Resolution:
-
720p/1080p
-
Lens:
-
2.8/3.6/6/8mm for optional
-
View angle:
-
120°
-
Audio:
-
Available
-
Night vision:
-
18pcs IR LED Lights
-
Waterproof:
-
IP 69
-
Size:
-
80mm(L)*51mm(W)*65mm(H)
-
Network:
-
Ip
-
Certification:
-
CE/FCC/Emarik
-
Power Supply:
-
POE/DC12V
Quick Details
-
Special Features:
-
NIGHT VISION
-
Function:
-
Waterproof / Weatherproof, Wide Angle, NIGHT VISION
-
Customized support:
-
Online technical support, Customized logo, OEM, ODM
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
EMV
-
Model Number:
-
EMV004AH
-
Style:
-
Rear View Camera
-
Video Compression Format:
-
H.264/H.265
-
Resolution:
-
720p/1080p
-
Lens:
-
2.8/3.6/6/8mm for optional
-
View angle:
-
120°
-
Audio:
-
Available
-
Night vision:
-
18pcs IR LED Lights
-
Waterproof:
-
IP 69
-
Size:
-
80mm(L)*51mm(W)*65mm(H)
-
Network:
-
Ip
-
Certification:
-
CE/FCC/Emarik
-
Power Supply:
-
POE/DC12V
|

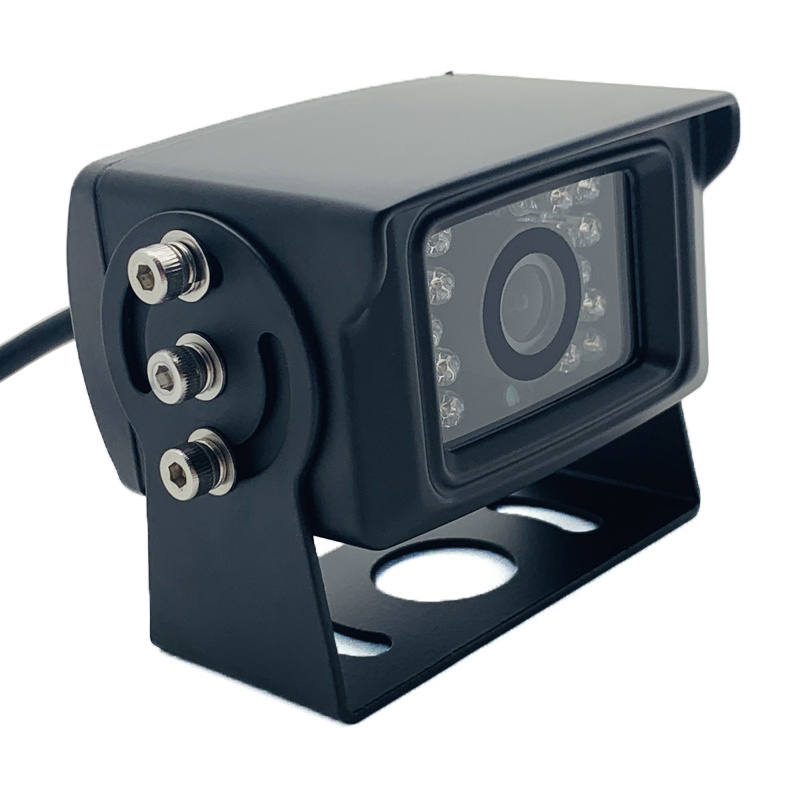

Product Name
|
EMV004AH
|
|
Parameters
|
2.0Mp,1280*720/1920*1080,18pcs IR LED,120 degree,2.8/3.6/6/8mm lens,audio available,waterproof ip69
|
|
Main Functions
|
Rear view/wide angle/night vision/waterproof ip69/audio optional
|
|
MOQ
|
1
|
|
Service
|
OEM/ODM Private Label LOGO or Packaging Customized
|
|
Certifications
|
EC-RED Certification/CE/FCC/E Mark/IP69K
|
|
Shipment
|
By Air,By Sea or Express
|
|
Payment Terms
|
Alibaba trade assurance,western union,T/T
|
Signal System:Progressive image scan
Scanning System:16:9 Progressive
Image Sensor:1/2.8",2.0 Megapixels Sony CMOS
View Angle:120°/100°
Sync.System:Internal
Effective Pixel:
1920(H)*1080(W),1280(H)*720(W)
Video Output Level:
1.0Vp-p (BNC 75Ω composite)
Lens:Megapixel fixed Lens 2.8mm/3.6mm/6mm/8mm
IR LED & Visible Range:
IR LED 18pcs Φ5mm (850nm/60°), Max.10-15m
Day & Night System:Mechanical ICR
Min.Illumination:0.5Lux(Color)/0 Lux IR On
Brightness:Auto/Manual
Contrast:Auto/Manual
Heatbeat Message:Yes
Compression:H.264/H.265/MJPEG
Frame Rate:1920*1080 1-25fps,1280*720 1-25fps
Resolution:1920*1080,1280*720
Code Stream:128Kbps~8Mbps,VBR/CBR
Audio:Optional
IP Rating:IP69
Protocol:HTTP,TCP/IP,UDP,SMTP,DDNS,DNS,SNTP,DHCP,FTP,RTP,RTSP,UPNP,ONVIF
DDNS:Yes
LAN Interface:Ethernet 10/100 base-T,RJ45*1
POE:Optional
User Access Setup:Yes
After Event Process:Upload JPEG via FTP,Email or specified alarm center
ONVIF Standard Access:ONVIF V2.0/V2.2/V2.3/V2.4/V2.5
Motion Detection:Yes,Support Multiple Setting Areas
Browser:Internet Explorer 6.0 or Above
System Upgrade:Yes,Firmware upgrade
PTZ Control:Not Applicable for Fixed Cameras
Working Temperature:-10℃~60℃
Power:DC12V/POE 48V,0.25A
Dimension:80mm*51mm*65mm
Weight:0.45kgs
Protocol:HTTP,TCP/IP,UDP,SMTP,DDNS,DNS,SNTP,DHCP,FTP,RTP,RTSP,UPNP,ONVIF
DDNS:Yes
LAN Interface:Ethernet 10/100 base-T,RJ45*1
POE:Optional
User Access Setup:Yes
After Event Process:Upload JPEG via FTP,Email or specified alarm center
ONVIF Standard Access:ONVIF V2.0/V2.2/V2.3/V2.4/V2.5
Motion Detection:Yes,Support Multiple Setting Areas
Browser:Internet Explorer 6.0 or Above
System Upgrade:Yes,Firmware upgrade
PTZ Control:Not Applicable for Fixed Cameras
Working Temperature:-10℃~60℃
Power:DC12V/POE 48V,0.25A
Dimension:80mm*51mm*65mm
Weight:0.45kgs
Product Application
1.Applicable for Bus/Truck/Train/Metro/Ship/Airplane,etc,use alone as an IP vehicle camera.
2.Connect to NVR system or car pc.
2.Connect to NVR system or car pc.
Welcome Brand Customization
OEM/ODM
Manufacturing orders welcome:
Features/View Angle/Connector/Color/Packing/Lable/Housing
... We support brand customization services based on your requirements, please Click
Here
for more information
Features Optional
Available in different features to reach your requirements, please
SEND INQUIRY
for more details.
View Angle Optional
Available in
different camera view angle
to meet your projects' requirements, please
SEND INQUIRY
for more details
Connector Optional
Standard connector is
M12 4PIN aviation female connector
. Available in other connectors to compatible with your device, please
SEND INQUIRY
for more details
Color Optional
Stardard hoursing color is black. Available in other coulors to match your vehicle color, please
SEND INQUIRY
for more details.
Brand Customization
EMV provides professional
OEM/ODM
service to build your own brand, please
SEND INQUIRY
for more details.
Founded in 2003, we have 16 years experience in developing and manufacturing MDVR, MDVR, HD Cameras, Car Monitor, rear view camera systems.
QUALITY CONTROL
All new products request a series of reliable performance tests from raw material to finished products before mass production, such as
vacuum seal test,
soaking test, salt spray test, drying box test, high and low teperature test,
cable bending test, ESD test, IP69K waterproof
,and etc.
Q:Do you support sample service?
A:Yes,we provide sample service,the sample quantity can be 1-5pcs.
Q:What is the delivery time?
A:15-30 days normally, detail delivery date should be decided according to production season and order quantity.
A:15-30 days normally, detail delivery date should be decided according to production season and order quantity.
Q:Do you test your goods before delivery?
A
:Yes,we will test all of the products before delivery
.
Q:Can you do OEM or ODM orders?
A:Yes, we support OEM or ODM services.
