Quick Details
-
Brand Name:
-
JDR
-
Model Number:
-
FY014 + FYK011 + FYH015
-
General Use:
-
Home Furniture
-
Color:
-
Black / Silvery White
-
Shape:
-
Linear
-
Speed:
-
Variable
-
Protect Class:
-
IP43, Waterproof
-
Stroke:
-
50-1000mm
-
Limit switch:
-
Inner
-
Certification:
-
CE,ROHS
-
Warranty:
-
2 years
Quick Details
-
Application:
-
Kitchen, Bathroom, Home Office, Living Room, Bedroom, Dining, Babies and kids, Outdoor, Hotel, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Warehouse, Workshop, Park, Farmhouse, Courtyard, Other, Storage & Closet, Exterior, Wine Cellar, Entry, Hall, Home Bar, Staircase, Basement, Garage & Shed, Gym, Laundry, Villa
-
Design Style:
-
Modern
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
JDR
-
Model Number:
-
FY014 + FYK011 + FYH015
-
General Use:
-
Home Furniture
-
Color:
-
Black / Silvery White
-
Shape:
-
Linear
-
Speed:
-
Variable
-
Protect Class:
-
IP43, Waterproof
-
Stroke:
-
50-1000mm
-
Limit switch:
-
Inner
-
Certification:
-
CE,ROHS
-
Warranty:
-
2 years
CE Linear Actuator , Furniture Linear Actuator :

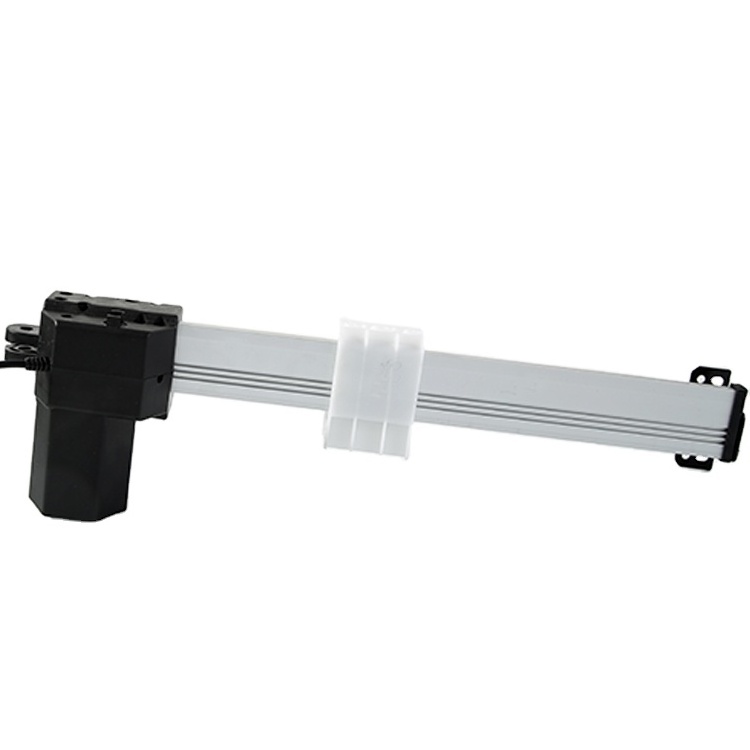

It can be used in sofa and chairs, Raising or falling of the back of electric sofa is based on the raise and falling of its white slider.
| The application | Recliner mechanism, electric sofa, electric bed, TV lifting system |
Specifications :
1) Thrust up to 4000N
2) 12V / 24V DC input voltage
3) Min Installation Dimension : S + 155mm
4) Standard protection class, IP20
5) High-strength plastic housing protecting motor and gears
6) Black plastic parts and anodized aluminium profile
7) Noise level, 48 dB, actuator not loaded.
8) Elegant and compact design with small installation dimensions
9) Colour, black plastic parts and natural anodiz ed Aluminium profile.
10) Duty cycle, Max 10% or 2 minutes continuous use followed by 18 minutes not in use
High quality of electric linear actuator to worldwide customers. We are professional mamnufacturer in linear actuator.
Item: Electric Linear Actuator, Electric Linear Motor
Series: FY series
Item Number:FY011, FY012, FY013 FY04, FY015, FY016, FY017
Delivery time: 3~7 days for samples
High quality of electric linear actuator to worldwide customers. We are professional amnufacturer in Electric Linear Actuator and Electric Linear Motor.
Electric linear actuator is widely used in Adjustable beds, Medical beds, Wheel chairs, Patient hoists, Table height adjustments, Industry mechanical instruments, furniture, home beds, office tables, massage equipment, sporting equipments and so on and so on.
Specification of Our Electric linear actuator :
Max. Thrust: 4000N, 6000N, 8000N
Voltage: 24VDC or 12VDC, Motor Drive
Standard stroke: 100 / 150 / 200 / 250 / 300 / 350 / 400 mm, special stroke are available according to customer' requirement.
Duty cycle: 10%
Ambient temperature -26°C to +65°C
Standard protection class: IP 43
Built-in integral limit switch , not adjustable after leaving factory
Low noise design , dB<48(A); The inspection method is in accordance with DS/EN ISO3746 while linear actuator is unloaded.
Overload protection
CE Certificated
Availability in Black, White and Gray housing
Quality Guarantee
We provide 1 year warranty for JDR Linear Actuators.
We provide spare parts free or replace a new one on condition that there is any breakdown with convincing evidence.
Maintenance service
No matter what brands of your linear actuators, no matter where your linear actuators are from, full way service and technical Support could be supplied by JDR.
JDR
QC Team
JDR QC team consists of more than 10 professional people to ensure 100% products high quality.
