Quick Details
-
Weight:
-
25000 kg
-
Dimension(L*W*H):
-
8240*2500*3740
-
Power:
-
136kw
-
Product name:
-
Concrete Mixing Truck Tank
-
Keywords:
-
Concrete Mixer Truck Price, Concrete Mixer Truck
-
Name:
-
Mixing tank truck, Concrete Mixer Truck
-
Chassis brand:
-
Optional, Concrete Mixer Truck
-
Brand:
-
ZLIN, Concrete Mixer Truck
-
After-sales Service Provided:
-
Online Support, Concrete Mixer Truck
-
MOQ:
-
1, Concrete Mixer Truck
-
Application:
-
Construction Industry, Concrete Mixer Truck
-
Color:
-
Customer's Requirement, Concrete Mixer Truck
-
Payment:
-
T/T, Concrete Mixer Truck
Quick Details
-
Marketing Type:
-
Hot Product 2022
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
ZLIN
-
Weight:
-
25000 kg
-
Dimension(L*W*H):
-
8240*2500*3740
-
Power:
-
136kw
-
Product name:
-
Concrete Mixing Truck Tank
-
Keywords:
-
Concrete Mixer Truck Price, Concrete Mixer Truck
-
Name:
-
Mixing tank truck, Concrete Mixer Truck
-
Chassis brand:
-
Optional, Concrete Mixer Truck
-
Brand:
-
ZLIN, Concrete Mixer Truck
-
After-sales Service Provided:
-
Online Support, Concrete Mixer Truck
-
MOQ:
-
1, Concrete Mixer Truck
-
Application:
-
Construction Industry, Concrete Mixer Truck
-
Color:
-
Customer's Requirement, Concrete Mixer Truck
-
Payment:
-
T/T, Concrete Mixer Truck

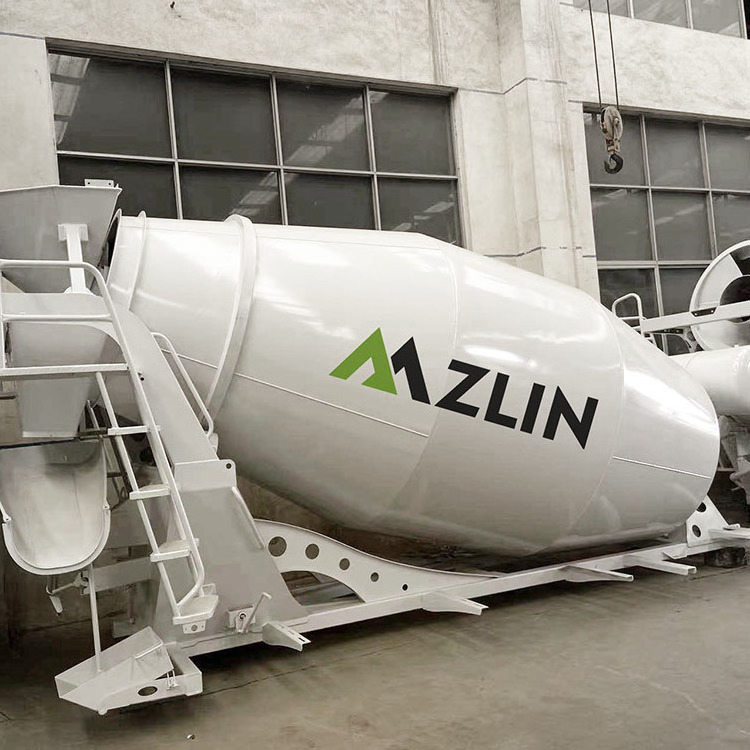

High Quality 8cbm Ready Mix Concrete Tank Concrete Mixer Drum Mixing Truck Tank
Technical advantages of ZLIN mixer :
1. Large-capacity design, unique capacity expansion technology, larger loading capacity, 10% higher than similar products.
2. High-strength wear-resistant steel, 520MPa high-strength wear-resistant steel is used for mixing drum body and blade material, and the service life of mixing drum reaches 5-8 years.
3. All three imported hydraulic components, the mixing drum is made of high-strength wear-resistant steel, especially the vulnerable parts, which greatly improves the service life of the mixing truck.
4. The mixing technology in China has better homogeneity: the more advanced double logarithmic spiral curve design in China and the excellent ratio of the diversion hole and the mixing plate make the mixing drum rotate more smoothly, the concrete homogeneity is better, and segregation is prevented;
5. Faster feeding and discharging speed: unique large pitch design, the feeding and discharging speed is 25% higher than that of similar products, the feeding speed is ≥ 4m3 per minute, and the discharging speed is ≥ 3m3 per minute.
6. The residual rate is lower: the rear cone adopts the edge pitch helix, the blade adopts the industry's concave three-stage design, and the residual rate is ≤ 0.8%.
7. The whole vehicle design is fully three-dimensional simulation. The mixing drum and feeding and discharging system are made of high-strength wear-resistant steel plate. Through finite element simulation analysis, the sub-frame structure is optimized. The overall weight of the upper part is reduced by 12%, which is more energy-saving.
8. Sedan ride experience, user-friendly operating system.
| Chassis performance parameters | Product model | ZL5220GJBGP5 | ZL5140GJBGP5 |
| Wheelbase | 3150+1300or3400+1300 | 3700 | |
| Wheelbase (front) | 1765 | 1765 | |
| Wheelbase (rear) | 1750 | 1750 | |
| Machine data | Equipment mass (kg) | 9600 | 7300 |
| Maximum loading mass (kg) | 12205 | 6105 | |
| Total mass (kg) | 22000 | 13600 | |
| Dimensions (mm) | 7950*2500*3850 | 7300*2500*3630 | |
| Mixing drum | Barrel Angle (°) | 13 | 13 |
| Mixing volume (m3) | 8/10 | 6 | |
| Feed rate (m3 /min) | ≥3 | ≥3 | |
| Discharge rate (m3 /min) | ≥2 | ≥2 | |
| Discharge residual rate (%) | <1% | <1% |
