Quick Details
-
Use:
-
Warehouse Rack
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HUAWU
-
Model Number:
-
LD-48
-
Depth:
-
0.6-1.5mm
-
Weight Capacity:
-
200-500kg/layer
-
Width:
-
600mm
-
Height:
-
2000mm
-
Color:
-
RAL System
-
Usage:
-
Warehouse Storage System
-
Surface treatment:
-
Electrostatic Powder Coating
-
Packing:
-
Bubble Film
-
Warranty:
-
3-year
-
Size:
-
2000*600*2000mm
-
Structure:
-
Welded Frame
-
Package:
-
Packaged Separately
Quick Details
-
Type:
-
Boltless / Rivet Shelving
-
Material:
-
Steel
-
Feature:
-
Corrosion Protection
-
Use:
-
Warehouse Rack
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HUAWU
-
Model Number:
-
LD-48
-
Depth:
-
0.6-1.5mm
-
Weight Capacity:
-
200-500kg/layer
-
Width:
-
600mm
-
Height:
-
2000mm
-
Color:
-
RAL System
-
Usage:
-
Warehouse Storage System
-
Surface treatment:
-
Electrostatic Powder Coating
-
Packing:
-
Bubble Film
-
Warranty:
-
3-year
-
Size:
-
2000*600*2000mm
-
Structure:
-
Welded Frame
-
Package:
-
Packaged Separately

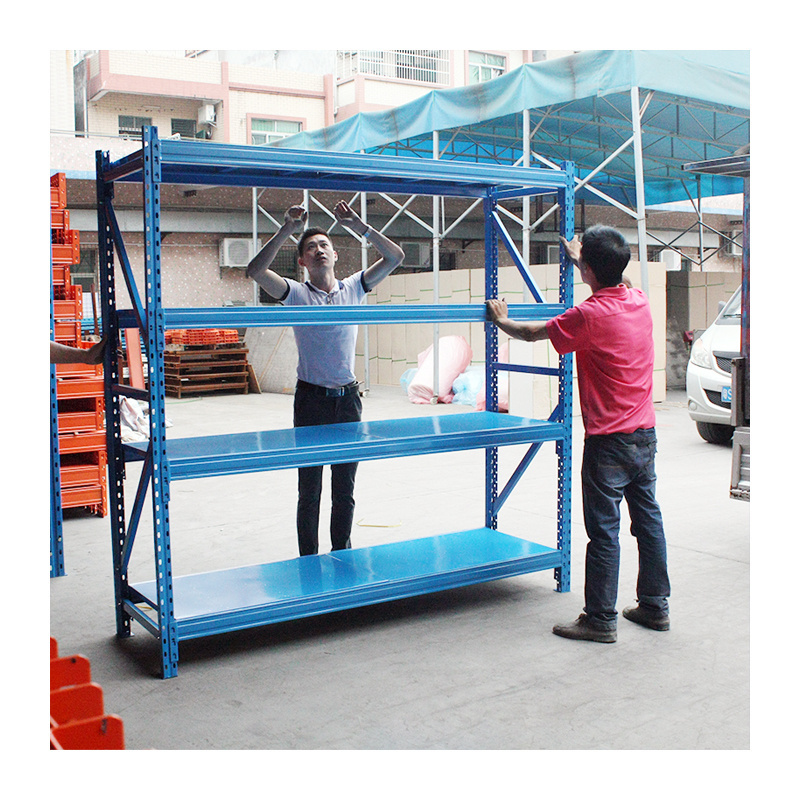

Medium duty rack/shelf belongs to warehouse storage racking systems.It can be adjusted by each 50mm,and the load capacity can be reach 200~500kg.The beam is "P" type beam,whose height mataches with that of the layer board.
|
Model
|
Capacity
(KG/Layer)
|
Size(L*W*H)
mm
|
Material Thickness
|
|||
|
HW-L1242
|
100KG
|
1200*400*2000
|
Column/Beam 0.6mm; Layer 0.3mm
|
|||
|
HW-L1252
|
|
1200*500*2000
|
|
|||
|
HW-L1542
|
|
1500*400*2000
|
|
|||
|
HW-L1552
|
|
1500*500*2000
|
|
|||
|
HW-M1062
|
200KG
|
1075*600*2000
|
Column/Beam 0.7mm; Layer 0.3mm
|
|||
|
HW-M1542
|
|
1500*400*2000
|
|
|||
|
HW-M1242
|
|
1200*400*2000
|
|
|||
|
HW-M1262
|
|
1200*600*2000
|
|
|||
|
HW-M1552
|
|
1500*500*2000
|
|
|||
|
HW-M2042
|
|
2000*400*2000
|
|
|||
|
HW-M1562
|
|
1500*600*2000
|
|
|||
|
HW-M2052
|
|
2000*500*2000
|
|
|||
|
HW-M2062
|
|
2000*600*2000
|
|
|||
|
HW-M1562L
|
300KG
|
1500*600*2000
|
Column/Beam 0.9mm; Layer 0.4mm
|
|||
|
HW-M2062L
|
|
2000*600*2000
|
|
|||
|
HW-H2062
|
500KG
|
2000*600*2000
|
Column/Beam 1.1mm; Layer 0.5mm
|
|||
|
Layers :
|
4
|
|
|
|||
|
Color :
|
Blue / Orange / Grey-white
|
|
|
|||
|
Other size and color can be customized based on the quantity of order.
|
|
|
|
|||
