Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
DABA
-
Voltage:
-
780V
-
Dimension(L*W*H):
-
2800mm*1600mm*1500mm
-
Weight:
-
1500 kg
-
Max. slitting width:
-
1300mm
-
Max. diameter of unwinding:
-
600mm (Depend on Customer)
-
Max. diameter of rewinding:
-
600mm
-
Max. machine speed:
-
200m/min
-
Air source:
-
0.6mpa
-
Cutter:
-
Circular/Razor
-
Slitting precision:
-
±0.15mm
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Japan, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea, Chile, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan
-
After-sales Service Provided:
-
Free spare parts, Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Online support
-
Certification:
-
ISO9001
Quick Details
-
Type:
-
Slitting Rewinder
-
Production Capacity:
-
200 m/min
-
Max. workable width:
-
1300mm
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
DABA
-
Voltage:
-
780V
-
Dimension(L*W*H):
-
2800mm*1600mm*1500mm
-
Weight:
-
1500 kg
-
Max. slitting width:
-
1300mm
-
Max. diameter of unwinding:
-
600mm (Depend on Customer)
-
Max. diameter of rewinding:
-
600mm
-
Max. machine speed:
-
200m/min
-
Air source:
-
0.6mpa
-
Cutter:
-
Circular/Razor
-
Slitting precision:
-
±0.15mm
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Japan, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea, Chile, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan
-
After-sales Service Provided:
-
Free spare parts, Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Online support
-
Certification:
-
ISO9001

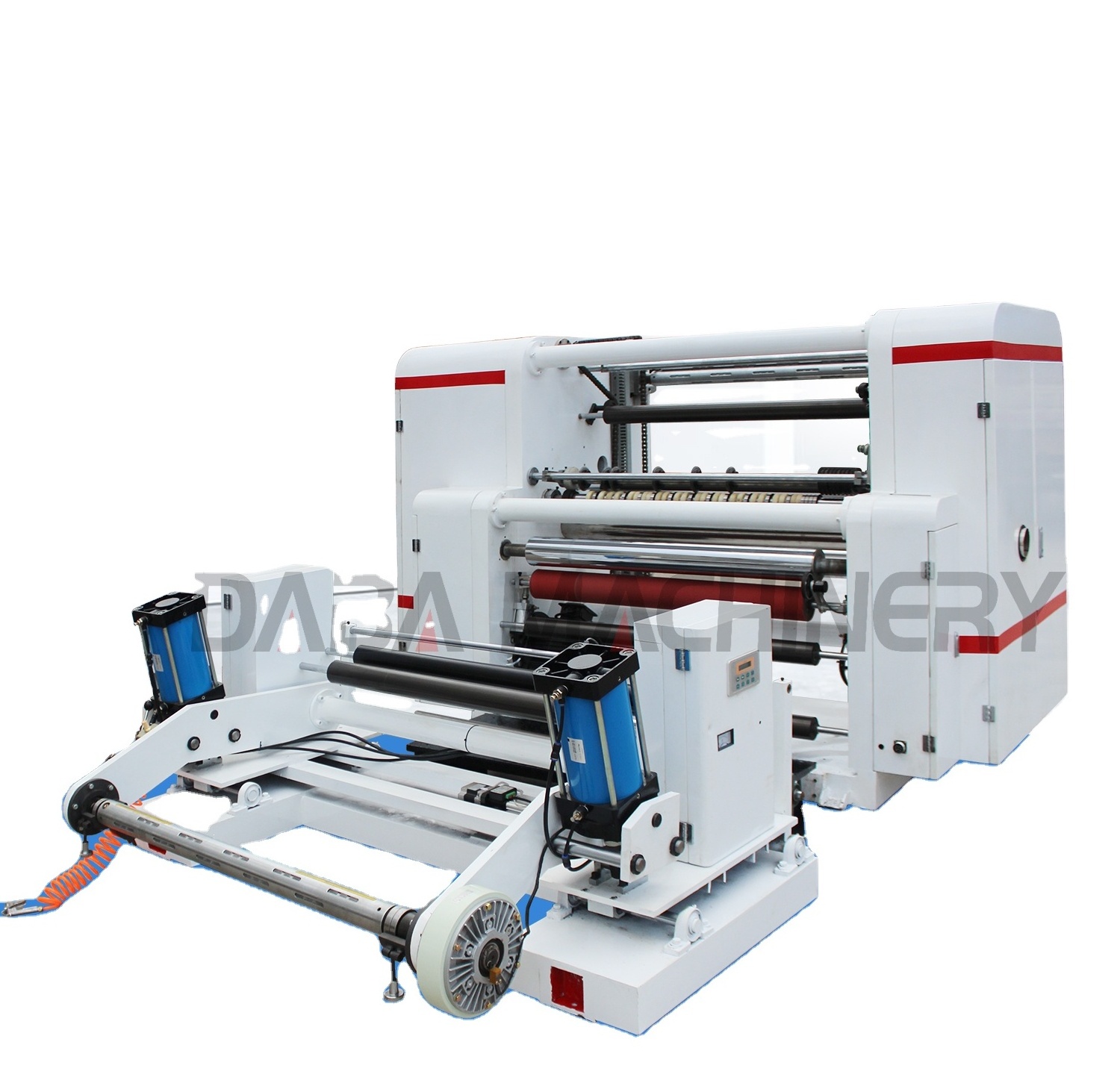

1.Application:
The machine is suitable for slitting all kinds of film ,PVC shrink film,adhesive labe l , foil, aluminum foil, paper, kraft paper etc.
2.Main Technical parameter:
1. W idth of material : 12 0 0mm
2. Max.diameter of un winding : 10 00mm
3. Max.diameter of re winding: 40 0mm * 2
4. Slitting width: 30mm-1200mm
5. Tension system adopt magnetic powder brake system and clutch .
6. Main power: 5.5 kw
7. P hotoelectric tracking system
8. U nwinding by manual .
9. W aste blowing system
10. M eter counting device
11. S litting knife : round knife or razor knives 6 sets
12. S litting precision: 0.15mm
13. S litting speed : 20 0 m/min
3.Main Spare parts:
1.Main motor: 5.5 kw (controlled by inverter 3.7 kw)
2.Edge position same step motor :Made in China
3. P hoto sensor Made in China
4.Air blower: 0.75kw Made in China.
5.Magnetic powder brake and clutch system (Made in China)
6.Air shaft (Made in China)
7.Alloy aluminum roller: Made in China
4.Features :
1.Unwind is controlled by pneumatic brake, comparing with normal magnetic powder brake, it can stand heavier roll and not easy to break down, also the controlling is more precise. Shaftless hydraulic loading which is convenient to load the roll, and hydraulic is easy to lift heavier roll.
2.Unwind cone can work with both 3 inch and 6 inch
3.Two rewinding shaft is pneumatic friction shaft which has best slitting accuracy.
4.Main motor and two rewind shaft is controlled by servo motor.
5.It is equipped with high precision EPC which can prevent the material moving left or right
6.The whole machine is equipped with PLC, tension is automatically control, you can input material diameter, thickness by touch screen which is convenient for operation.
7.It is equipped with flat blade for plastic film or rotary blade for paper, non woven.
8.It has Laser positioning device to locate the position of paper core
9.It is installed with static brush to remove static electric away during high speed slitting.
10.It is installed with a blower to blow the waste edge away.
11. Waste winding device is optional with extra cost.
