Quick Details
-
Model Number:
-
YJC-R-06
-
Name:
-

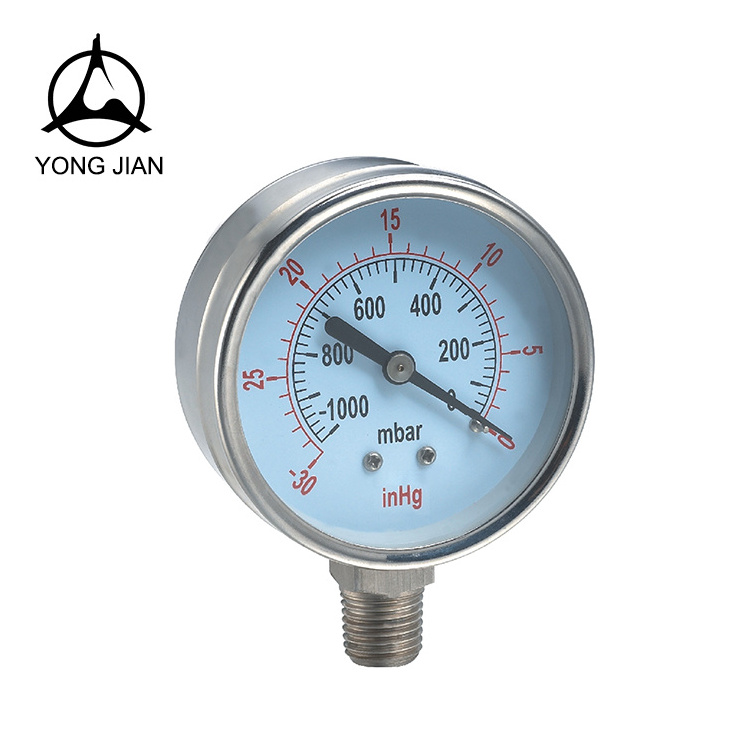

Common pressure gauge
-
Certificate:
-
CE
-
Material:
-
brass movement, brass or aluminum connector
-
Sample Leadtime:
-
10days
-
Production Leadtime:
-
35days
-
After Service:
-
Available
-
Feature:
-
stable
Quick Details
-
Warranty:
-
other, 6 months
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
YONGJIAN
-
Model Number:
-
YJC-R-06
-
Name:
-
Common pressure gauge
-
Certificate:
-
CE
-
Material:
-
brass movement, brass or aluminum connector
-
Sample Leadtime:
-
10days
-
Production Leadtime:
-
35days
-
After Service:
-
Available
-
Feature:
-
stable
Products Description
Factory direct sales, product quality is trustworthy.We have high-quality sources, contact us to provide you with an accurate quotation.
|
Name
|
Pressure gauge
|
|
Diameter
|
1.5”,2.0”,2.5”,3”,4”,6”
|
|
Dials Size
|
1.5"(40mm)2"(50mm), 2.5“(63mm)
|
|
Scale
|
psi, bar, Mpa, kg/cm2, kpa etc. optional
|
|
Ring
|
Non, black steel or chrome plated
|
|
Movement
|
Brass
|
|
Bourdon tube
|
Brass
|
|
Connector material
|
stainless or aluminum
|
|
Window
|
Plastic or Glass
|
|
Connection sizes
|
1/8 for 1.5" (40mm)case; 1/4 for 2"(50mm) or 2.5"(63mm) case.
|
|
Connection threads
|
1/8”,1/4”,3/8”,1/2”, NPT, BSP (G, PF), BSPT (ZG, PT)
|
|
Mounting
|
Bottom connector,back connector
|
|
Case Material
|
steel chrome plated case/black and case,steel chrome plated bezel,glass or plastic window,brass internal and connector
|
|
Oil-filled Gauge:
|
Glycerin or Silicon
|
|
Precision
|
2.5
|
|
|
2.0
|
|
Pressure limitation
|
Steady: 3/4x full scale value
|
|
|
Fluctuation:2/3x full sacle value
|
|
|
Short time:full scale value
|
|
connection
|
radial,bottom connection
|
|
|
axial,center back male connection
|
|
pressure range
|
0-50 psi......1-6000 psi
|
