Quick Details
-
Voltage:
-
220V 50HZ
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Chengxiang
-
Dimension(L*W*H):
-
2500(L)*1600(W)*1500(H) mm
-
Weight:
-
550 KG
-
Machinery Capacity:
-
3000BPH
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Price:
-
Competitive
-
Packing Details:
-
Exporting long distance Wooden Case
-
Labels:
-
Tax stamp label
-
Products:
-
Round bottles/jars/cans/cups...
-
Dater/printer on labels:
-
Optional
-
collection turntable:
-
Optional
-
Can be customized?:
-
Yes, can be customized based on your products
-
WhatsApp / Wechat /Mobile:
-
+0086 13795304292
-
Product name:
-
Tax stamp labeling machine
Quick Details
-
Application:
-
Beverage, Chemical, Commodity, Food, Machinery & Hardware
-
Packaging Type:
-
Bottles
-
Packaging Material:
-
Plastic, Paper, Metal, Glass, Wood
-
Voltage:
-
220V 50HZ
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Chengxiang
-
Dimension(L*W*H):
-
2500(L)*1600(W)*1500(H) mm
-
Weight:
-
550 KG
-
Machinery Capacity:
-
3000BPH
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Price:
-
Competitive
-
Packing Details:
-
Exporting long distance Wooden Case
-
Labels:
-
Tax stamp label
-
Products:
-
Round bottles/jars/cans/cups...
-
Dater/printer on labels:
-
Optional
-
collection turntable:
-
Optional
-
Can be customized?:
-
Yes, can be customized based on your products
-
WhatsApp / Wechat /Mobile:
-
+0086 13795304292
-
Product name:
-
Tax stamp labeling machine
Model No:CX-RT

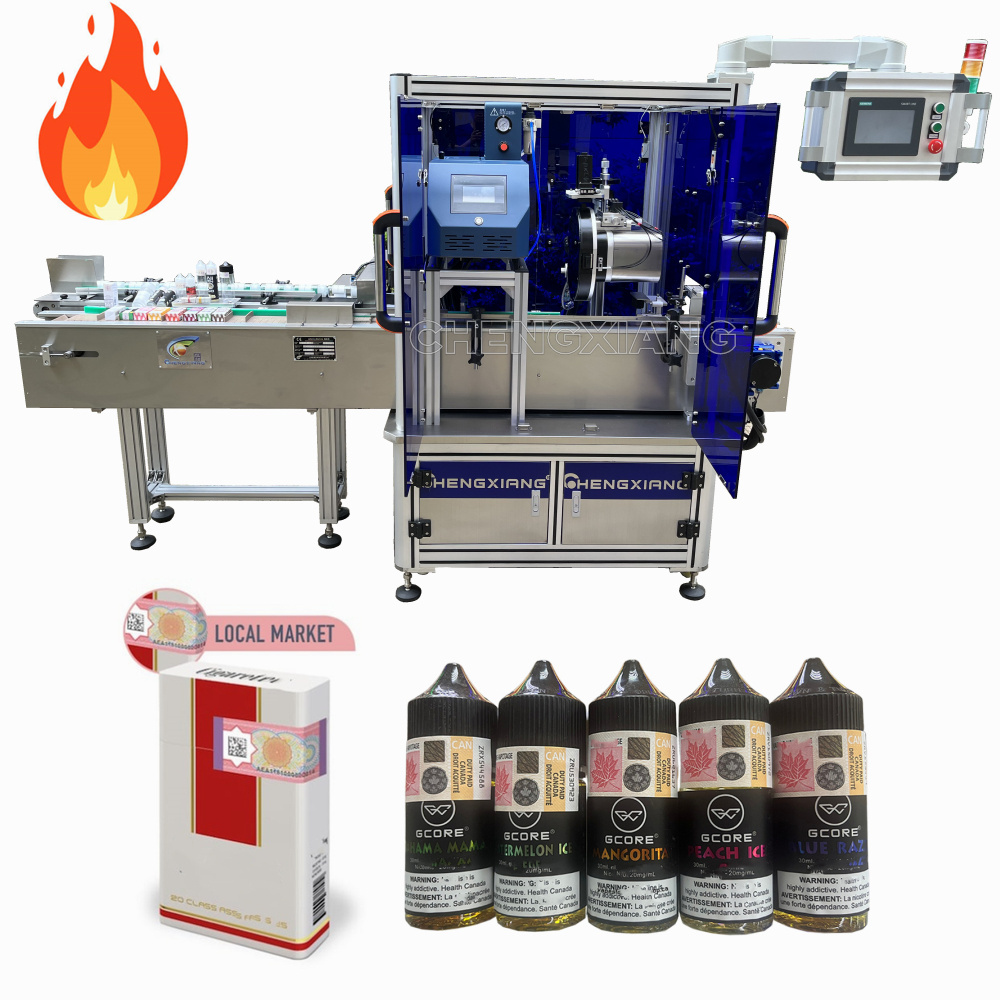

Machine Name: MultifunctionTax Stamp Labeling Machine
Advantages:
*
EU CE standard
*
Fit for 10ml-120ml
*
High speed: 3000 B/H
*
PLC control,easy to operate
*
Sensor detection with high accuracy
*
Whole machine delivery, easy to install
*
Same mold can be compatible with both bottle and box labeling
One machine can be customized for capped bottle and carton
Workflow
Step 1: take the vacuum suction label of the cylinder;
Step 2: The suction head moves to the upper part of the marking cylinder through the module to suck the label;
Step 3: The suction head moves to the top of the dispensing machine nozzle through the module;
Step 4: PLC sends signals to spray glue automatically;
Step 5: The product is detected by the sensor through the conveying fixture and runs to the lower part of the labeling cylinder;
Step 6: labeling cylinder completes labeling;
All of our machine can be customized
Placing and heating hot melt glue particles
Sensor for check bottle / box, suck label, spray hot melt glue on label
Press label on bottle / cap / carton box
Different products size change mould is ok
Automatic feeder conveyor can be added (optional), feeding carton / bottle automatically
Finished samples:
2 sets tax stamp labeling machine shipped to Germany this week
We pack the whole machine in wooden case, more easy for set up
Parameters
|
Labeling speed: |
about 20-50P/min |
|
Repeated labeling accuracy: |
± 1mm (excluding product label and other errors) |
|
Applicable product size: |
customized according to the product |
|
Applicable label range: |
customized according to the product |
|
Ambient temperature/humidity: |
0-50 ℃/15-85% |
|
Voltage specification: |
AC220V, 50/60HZ |
Configuration
|
N ame |
B rand |
Unit |
Q uantity |
Origin |
|
Conveying servo motor |
Panasonic |
SET |
1 |
Japan |
|
Marking servo motor |
Panasonic |
SET |
1 |
China |
|
PLC programmable controller |
Panasonic |
SET |
1 |
Japan |
|
Touch screen |
Maintenance and control |
SET |
1 |
China |
|
a sensor |
Panasonic |
SET |
1 |
Panasonic |
|
module |
|
SET |
1 |
China |
|
Cylinder |
AirTAC |
SET |
4 |
China |
|
Solenoid valve |
Ming latitude |
SET |
7 |
China |
|
Switching Mode Power Supply |
Omron |
SET |
1 |
China |
|
Circuit breaker |
Omron |
SET |
1 |
Japan |
|
Emergency stop button |
brand |
SET |
1 |
Japan |
We also produce gorilla bottle filling machine, click below picture for more details
After-sales service:
We guarantee the quality of the main parts within 12 months. If the main parts go wrong without artificial
factors within one year, we will freely provide them or maintain them for you. After one year, if you need
to change parts, we will kindly provide you with the best price or maintain it in your site. Whenever you
have technical question in using it, we will freely do our best to support you.
Guarantee of quality :
The Manufacturer shall guarantee the goods are made of Manufacturer’s best materials, with first class workmanship, brand new, unused and correspond in all respects with the quality, specification and performance as stipulated in this
Contract. Quality guarantee period is within 12 months from B/L date. The Manufacturer would repair the contracted machines free of charge during the quality guarantee period. If the break-down can be due to the improper use or other reasons by the Buyer, the Manufacturer will collect repair parts cost.
Installation and Debugging:
The seller would dispatch his engineers to instruct the installation and debugging. Cost would be bear on buyer’s side
(round way flight tickets, accommodation fees in buyer country). The buyer should provide his site assistance for the installation and debugging.
Q1.Are you factory?
A1:Yes,we are 18 YEARS manufacturer of bottle washing machine-filling-capping-labeling, our factory is in Shanghai.
Q2.What's the payment terms and trade terms for new customers?
A2: Payment terms:T/T,L/C,D/P,O/A, Western Union etc.
Trade terms:EXW,FOB,CIF,C&F,DDU,DDP....
Q3:What's the Minimum Order Quantity and warranty?
A3:MOQ:1 set
Warranty:12 months,some customized products will be 24 months.
Q4:Your certification please?
A4:CE/ISO/TUV/GMP
