Quick Details
-
Optical Resolution:
-
≥5 mi
-
Scan Speed:
-
≥25 inch/ 63 cm
-
Brand Name:
-
woso
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
2D Blue-tooth Barcode Scanner
-
Interface:
-
USB+Blue tooth
-
Dimension:
-
19 mm*15 mm *7 mm
-
Weight:
-
158 g
-
Material:
-
ABS
-
Battery:
-
1800 m Ah
-
Distinguishability:
-
648 pixels( H) *488 pixels( V)
-
Light Sources:
-
617 nm LED, White LED
-
Depth of scan field:
-
40 mm~250 mm
-
Function:
-
Scan Barcode
Quick Details
-
Type:
-
Barcode Scanner
-
Scan Element Type:
-
CMOS
-
Max Paper Size:
-
/
-
Optical Resolution:
-
≥5 mi
-
Scan Speed:
-
≥25 inch/ 63 cm
-
Brand Name:
-
woso
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
2D Blue-tooth Barcode Scanner
-
Interface:
-
USB+Blue tooth
-
Dimension:
-
19 mm*15 mm *7 mm
-
Weight:
-
158 g
-
Material:
-
ABS
-
Battery:
-
1800 m Ah
-
Distinguishability:
-
648 pixels( H) *488 pixels( V)
-
Light Sources:
-
617 nm LED, White LED
-
Depth of scan field:
-
40 mm~250 mm
-
Function:
-
Scan Barcode
Product Paramenters

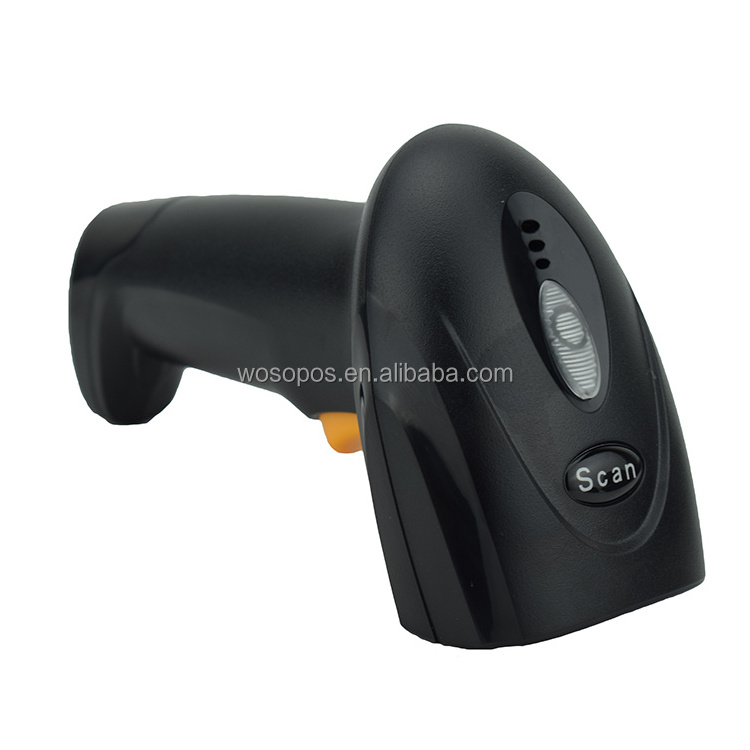

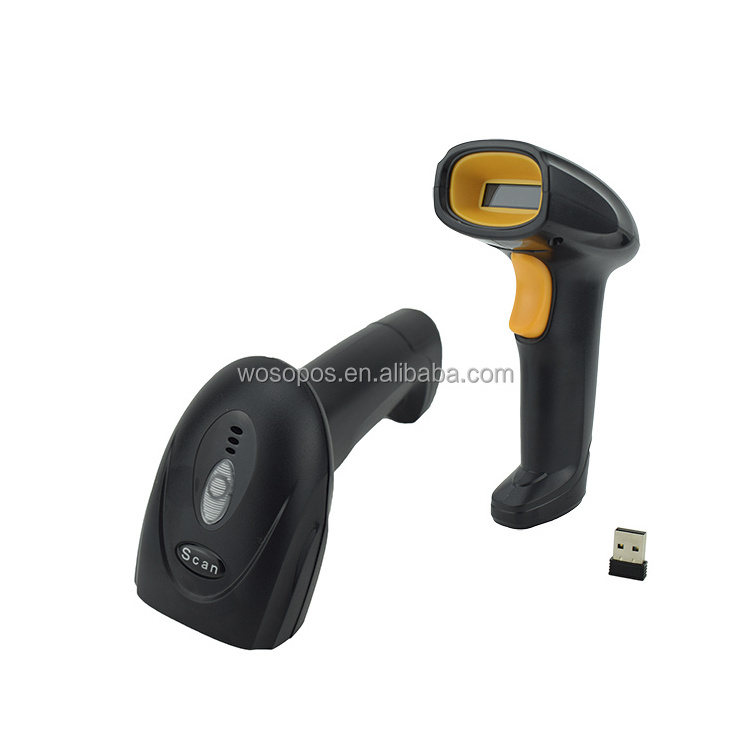

Blue-tooth Barcode Scanner Wireless 1D 2D QR Bar code Reader Mobile Handheld Scanner
|
B2D-WBT21 2D Wrieless Barcode Scanner
|
|
|
|
1D
|
EAN- 8 , EAN- 13 , CODE- 128 , Codabar, UPC- A, UPC- E,Industrial 2 of 5,EAN- 128 , Interleave 2 of 5 , Matrix 2 0 f 5 , MSI, GS 1
Aztec. |
|
|
2D
|
QR code, Data Matrix, PDF 417 、Aztec code、 Maxi code Aztec.
|
|
|
Light Sources
|
617 nm LED, White LED
|
|
|
Scan type
|
Image COMS
|
|
|
Scan speed
|
≥25 inch/ 63 cm
|
|
|
Scan angle
|
Yaw ±65°, Rotation ±360°, Pitch ±60°
|
|
|
Precision
|
code 39≥5 mil, UPC/ EAN≥15 mil
|
|
|
Distinguishability
|
648 pixels( H) x 488 pixels( V)
|
|
|
Depth of scan field
|
40 mm～250 mm
|
|
|
Error rate
|
1 / 500 million
|
|
|
Print of contrast
|
≥25 %
|
|
|
Scan method
|
Manually, Automatic inductive,Successive scanning( optional)
|
|
|
Indicator
|
LED, Speaker 、 Shake( optional)
|
|
|
Interface
|
Scanner and Receiver USB- HID, USB- COM Blue-tooth
|
|
|
Update program
|
Supported
|
|
|
Frenquency
|
2 . 4 G hz wireless
|
|
|
Transmission Distance
|
10-20 meters
|
|
|
Memory sizes
|
4 Mbit
|
|
|
Pairing mode
|
one to one,more to one
|
|
|
Dongle Dimesions
|
19 m m*1 5 mm *7 mm
|
|
|
Scanner Dimesions
|
156mm×64mm×91 mm
|
|
|
Weight
|
158 g
|
|
|
Material
|
ABS
|
|
|
length
|
1 m
|
|
|
Input voltage
|
DC 5 V±10 %
|
|
|
Current
|
135 m A( operating); 0 m A( Quiescent current)
|
|
|
Battery
|
1800 m Ah
|
|
|
Battery Charging Model
|
micro USB
|
|
|
Battery Charging Time
|
5 . 5 h
|
|
|
Battery Working Time
|
26 h
|
|
