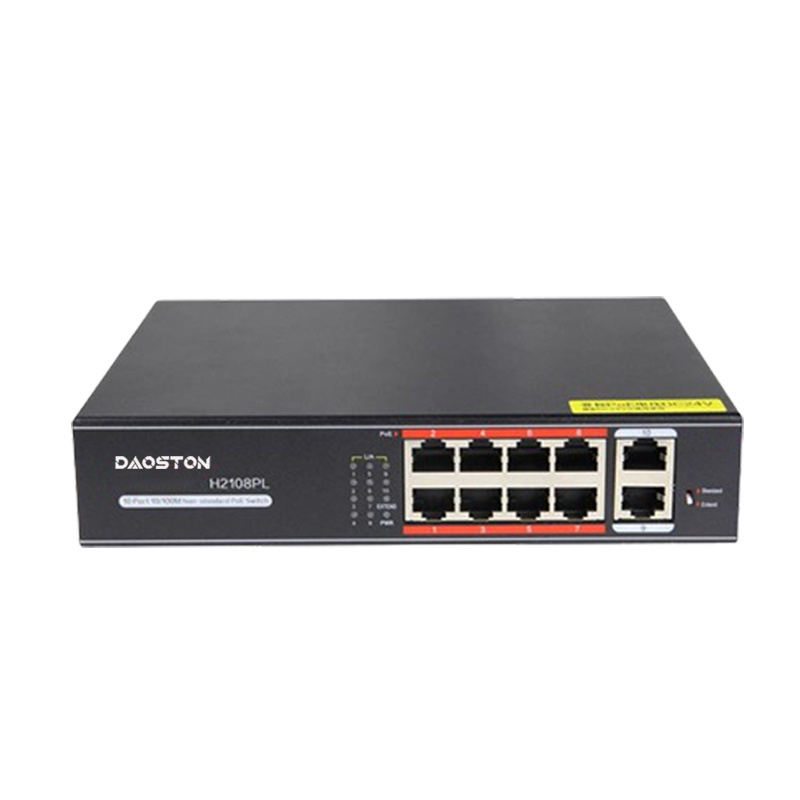

Quick Details
-
Brand Name:
-
Daoston
-
Model Number:
-
DST-100N-10T
-
Place of Origin:
-
Guangdong, China
Quick Details
-
Transmission Rate:
-
10/100Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
2Gbps (Non-blocking)
-
Brand Name:
-
Daoston
-
Model Number:
-
DST-100N-10T
-
Place of Origin:
-
Guangdong, China
TECHNICAL SPECIFICATION
|
Model |
DST-100N-10T |
|
Interface Characteristics |
|
|
Fixed P ort |
8 *10/100Base-TX P o E p orts ( Data/Power ) 2 *10/100Base-T X uplink RJ45 Ports (Data) |
|
Ethernet Port |
10/100Base-T(X) auto-sensing, full/half duplex MDI/MDI-X self-adaption |
|
Functional Switch (EXTEND) |
Port 1-8support port VLAN and 10M/250m transmission |
|
|
Note: When the switch status changes, the PoE switch must be restarted for the switch function to take effect. |
|
Twisted Pair Transmission |
10BASE-TX : Cat5 or later UTP(≤ 25 0 meter) 100BASE-TX : Cat5 or later UTP(≤100 meter) |
|
Chip Parameter |
|
|
Network Protocol |
IEEE802.3 10BASE-T , IEEE802.3i 10Base-T IEEE802.3u 100Base-TX , IEEE802.3x |
|
Forwarding Mode |
Store and Forward(Full Wire Speed) |
|
Switching Capacity |
2 Gbps ( Non-blocking ) |
|
Forwarding Rate@64byte |
1.488 Mpps |
|
MAC |
2 K |
|
Buffer Memory |
1.25M |
|
Jumbo F rame |
1536byte |
|
LED Indicator |
Power: PWR (Green), Network:L/A (Green), Function switch: EXTEND (Green) |
|
PoE & Power |
|
|
P o E Port |
Port 1-8 can support 24V PoE |
|
Power Supply Pin |
Default 4/5 (+), 7/8 (-) |
|
Single-port M ax/AVG P ower |
24 W/15W |
|
Total PWR / Input Voltage |
120 W / ( AC100-240V ) |
|
Power Consumption |
Standby <5 W , Full load <120 W |
|
Power Supply |
Built-in power supply, AC100 ~ 240V 50-60Hz 2.2 A |
|
Physical P arameter |
|
|
Operation TEMP / Humidity |
- 2 0 ~ + 55 °C , 5% ~ 90% RH Non condensing |
|
Storage TEMP / Humidity |
-40 ~ + 7 5°C , 5% ~ 95% RH Non condensing |
|
Dimension (L*W*H) |
195 * 130 *4 0 mm |
|
Net /Gross Weight |
<0.8 kg / <1.2 kg |
|
Installation |
Desktop,Wall-mounted, Rack mounted |
|
Certification & Warranty |
|
|
Lightning Protection / Protection Level |
Lightning protection: 4KV 8/20us; Protection level: IP30 |
|
Certification |
CCC, CE mark, commercial , CE/LVD EN60950 , FCC Part 15 Class B R o HS |
|
Warranty |
2 year , lifelong maintenance. |
