Quick Details
-
Air Consumption:
-
7-8m³/min
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
China Coal Group
-
Voltage:
-
standard, 380v or as your requirement
-
Power:
-
standard
-
Dimension(L*W*H):
-
1280*700*1280
-
Weight:
-
700 kg
-
Keywords:
-
Dry Shotcrete machine
-
Product name:
-
Mini Shotcrete Machine
-
Output:
-
5m³/h
-
Water cement ratio:
-
≤0.4
-
Operating air pressure:
-
0.4~0.6MPa
-
Rotor diameter:
-
438mm
-
Application:
-
Construction
-
Type:
-
Shotcrete Equipment
-
Name:
-
PZ-5 Concrete Spray Machines
Quick Details
-
Max. Conveying Distance:
-
Horizontal 200m Vertical 20m
-
Max Aggregate Size:
-
20mm
-
Hose Inner Diameter:
-
51 mm
-
Air Consumption:
-
7-8m³/min
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
China Coal Group
-
Voltage:
-
standard, 380v or as your requirement
-
Power:
-
standard
-
Dimension(L*W*H):
-
1280*700*1280
-
Weight:
-
700 kg
-
Keywords:
-
Dry Shotcrete machine
-
Product name:
-
Mini Shotcrete Machine
-
Output:
-
5m³/h
-
Water cement ratio:
-
≤0.4
-
Operating air pressure:
-
0.4~0.6MPa
-
Rotor diameter:
-
438mm
-
Application:
-
Construction
-
Type:
-
Shotcrete Equipment
-
Name:
-
PZ-5 Concrete Spray Machines
Products Description

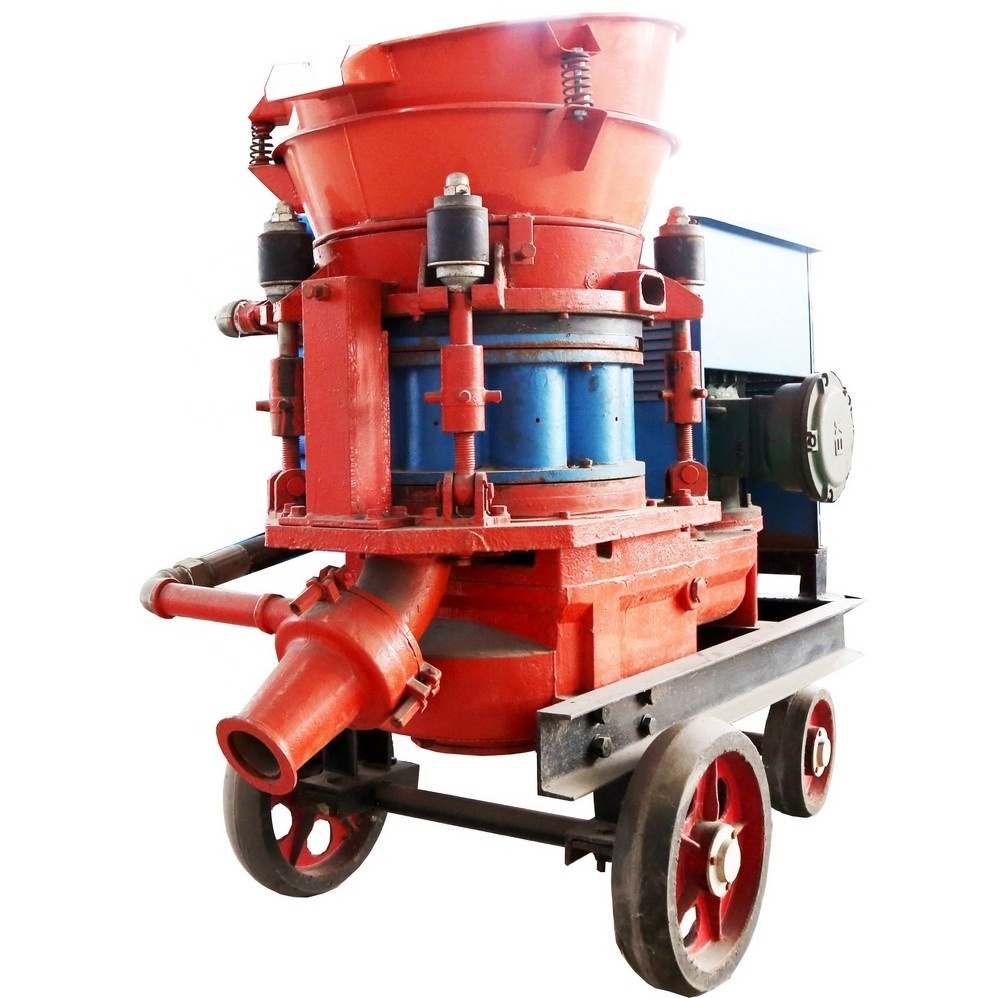

PZ-5 Dry Concrete Spray Equipment is the most ideal device for the concrete anchor spray construction, wet spray and moist spray. And be widely used for the anchor spray supporting construction in tunnel, culvert and underground projects. And uniquely-made rubber bushing block on the swirler benefits mixture delivery. PS-6 has stable performance, is convenient for maintenance, saves energy, has a long service life, protects environment, and improves the spraying layer quality. Our product advantages as follows:
1.Excellent Performance:
2.Tightly compact,attractive appearance,
3.Stable and durable,easy to operate and maintain.
4.Applicable for all kinds of working environment.
5.Mainly used for tunnel,underground work,slope protection and other concrete construction.zmwm15
Product Paramenters
|
Model
|
|
PZ-3
|
PZ-5
|
PZ-7
|
HSP-5
|
HSP-7
|
HSP-9
|
|
|
Output
|
|
3.5m3/h
|
5m3/h
|
7m3/h
|
4.0-5.0m3/h
|
5.0-7.0m3/h
|
6.0-9.0m3/h
|
|
|
Max. Convey distance
|
Horizontal
|
200m
|
200m
|
200m
|
30-50m
|
30-50m
|
30-50m
|
|
|
|
Vertical
|
20m
|
20m
|
20m
|
20m
|
20m
|
20m
|
|
|
Water cement ratio
|
|
≤0.4
|
≤0.4
|
≤0.4
|
≤0.4
|
≤0.4
|
≤0.4
|
|
|
Max. Aggregate. size
|
|
Φ20mm
|
Φ20mm
|
Φ20mm
|
Φ15mm
|
Φ15mm
|
Φ15mm
|
|
|
Hose inner size
|
|
Φ38mm
|
Φ51.mm
|
Φ64mm
|
Φ51mm
|
Φ51/64mm
|
Φ51/64mm
|
|
|
Operating air pressure
|
|
0.4~0.6MPa
|
0.4~0.6MPa
|
0.4~0.6MPa
|
0.3-0.6Mpa
|
0.3-0.6Mpa
|
0.3-0.6Mpa
|
|
|
Air consumption
|
|
3-4 m3/min
|
7-8 m3/min
|
12-15 m3/min
|
10.0-15.0m3/min
|
10.0-15.0m3/min
|
10.0-15.0m3/min
|
|
|
Rotor diameter
|
|
350(150)mm
|
438mm
|
480mm
|
438mm
|
480(160)mm
|
480(175)mm
|
|
|
Voltage
|
|
380v or as your requirement
|
380v or as your requirement
|
380v or as your requirement
|
380v or as your need
|
380v or as your need
|
380v or as your need
|
|
|
Overall dimension mm
|
|
1040*550*940
|
1280*700*1280
|
1600*700*1150
|
1280*700*1280
|
2000*800*1300
|
2000*800*1300
|
|
|
Whole weight
|
|
550kgs
|
600kgs
|
900kgs
|
700kg
|
800kg
|
900kg
|
|
