Quick Details
-
Name:
-
bag filter housing
-
material:
-
stainless steel 304/316
-
connect:
-
tri clamp,flange
-
flow:
-
0-200m3/h
-
After Warranty Service:
-
Online support
-
After-sales Service Provided:
-
Online support
Quick Details
-
Weight (KG):
-
20
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
BLS
-
Name:
-
bag filter housing
-
material:
-
stainless steel 304/316
-
connect:
-
tri clamp,flange
-
flow:
-
0-200m3/h
-
After Warranty Service:
-
Online support
-
After-sales Service Provided:
-
Online support
Product Description
Product Overview
Bag Filter housing effectively removes dirt,pipe scale,and other contaminants from process liquids such as water,
beverage,chemical and petroleum products. Bag filter can be used with the standard #1,#2,@3,#4 size bags or the standard
perforated basket as a strainer. Mesh lined baskets are also available as an optional feature effective filtering area is rather
big,achieving more efficient filtering result.Eye Bolt Closure System.The user friendly,cost effective bag filter housing for high
volume,multiple applications and processes. The Max. flow of single unit are from 18 Cubic m/h to 210 cubic m/h.
Technical specification
1.Material:SS304,SS316,SS316L
2.Design vessel pressure :0.6-1.0Mpa
3.Operate temperature:-20-130°C
4.Filtering accuracy: 0.1-20um
5.Filter Bag type:1#Bay,2#Bag,3#Bag,4#Bag
6.Flow Type:Side Entry,Top Entry,S-Multi,B-Multi Bag Filter
7.Connection vessel:Tri Clamp,Flange,Thread
8.Inlet/Out Dimension: 1 1/2"-8"
9.Surface Finish: Mirror Polish,Electrical Polish, Acid Washing,Matt Polish,echanical
Polishing ,Ra≤0.5μm
10.Usage:widely used in Food & Beverage,Wine Industry,, Chemical Industry,
Electronic Industry and So On.
beverage,chemical and petroleum products. Bag filter can be used with the standard #1,#2,@3,#4 size bags or the standard
perforated basket as a strainer. Mesh lined baskets are also available as an optional feature effective filtering area is rather
big,achieving more efficient filtering result.Eye Bolt Closure System.The user friendly,cost effective bag filter housing for high
volume,multiple applications and processes. The Max. flow of single unit are from 18 Cubic m/h to 210 cubic m/h.
Technical specification
1.Material:SS304,SS316,SS316L
2.Design vessel pressure :0.6-1.0Mpa
3.Operate temperature:-20-130°C
4.Filtering accuracy: 0.1-20um
5.Filter Bag type:1#Bay,2#Bag,3#Bag,4#Bag
6.Flow Type:Side Entry,Top Entry,S-Multi,B-Multi Bag Filter
7.Connection vessel:Tri Clamp,Flange,Thread
8.Inlet/Out Dimension: 1 1/2"-8"
9.Surface Finish: Mirror Polish,Electrical Polish, Acid Washing,Matt Polish,echanical
Polishing ,Ra≤0.5μm
10.Usage:widely used in Food & Beverage,Wine Industry,, Chemical Industry,
Electronic Industry and So On.
Bag Filter Data Sheet
|
Model
|
Filter Diameter(mm)
|
Filter Height
|
Inlet /Outlet(Inch)
|
Flow(m3/h）
|
|
SGD180/400-1-F
|
350
|
940
|
1 1/2"
|
18m3/h
|
|
SGD180/800-1-F
|
350
|
1340
|
2"
|
35m3/h
|
|
SGD180/800-2-F
|
560
|
1625
|
4"
|
70m3/h
|
|
SGD180/800-3-F
|
650
|
1640
|
5"
|
105m3/h
|
|
SGD180/800-4-F
|
740
|
1675
|
6"
|
140m3/h
|
|
SGD180/800-6-F
|
900
|
1780
|
8"
|
210m3/h
|

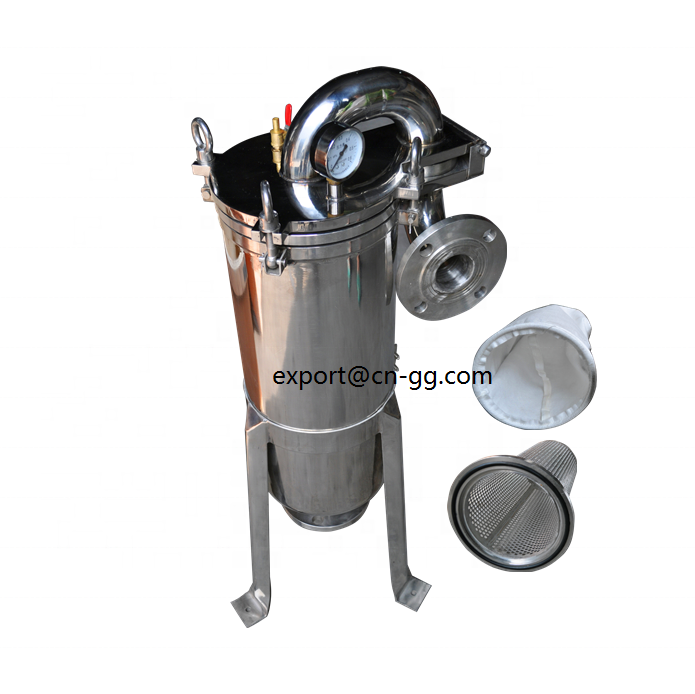

Bag Filter Photos
