Easy To Use Auto Service Equipment Motorcycle Bead Breaker Tire Extractor Mounted Machine Tire Changer

Easy To Use Auto Service Equipment Motorcycle Bead Breaker Tire Extractor Mounted Machine Tire Changer

FOB Reference Price: Get Latest Price

≥2 Sets

US $760

≥24 Sets

US $721

≥80 Sets

US $670

≥200 Sets

US $640

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Liaoning, China

Brand Name:: YuanMech

Model Number:: C9552M

Warranty:: 14 Months

Product Name:: Portable Manual Car Motorcycle Tire Changer For Car And Motorcicle

Certification:: CE Certificate

Inside Clamping:: 13''-24''

Outside Clamping:: 10"-22"

Bead Breaker Force:: 2500kg

Max. Wheel Diameter:: 1040mm/ 41"

Max. Wheel Width:: 3''-15''

WEIGHT:: N.W:249.5kg G.W:275kg

Color:: Customized Color Acceptable

Packing Size:: 1160*900*1100mm

Quick Details

Motor Power:: 0.75/1.1kw

Operating Pressure:: 8-10 bar/ 117-145 Psi

Power Supply:: 110V/220V/240V/380V/415V 50Hz/60Hz

Place of Origin:: Liaoning, China

Brand Name:: YuanMech

Model Number:: C9552M

Warranty:: 14 Months

Product Name:: Portable Manual Car Motorcycle Tire Changer For Car And Motorcicle

Certification:: CE Certificate

Inside Clamping:: 13''-24''

Outside Clamping:: 10"-22"

Bead Breaker Force:: 2500kg

Max. Wheel Diameter:: 1040mm/ 41"

Max. Wheel Width:: 3''-15''

WEIGHT:: N.W:249.5kg G.W:275kg

Color:: Customized Color Acceptable

Packing Size:: 1160*900*1100mm

Products Description

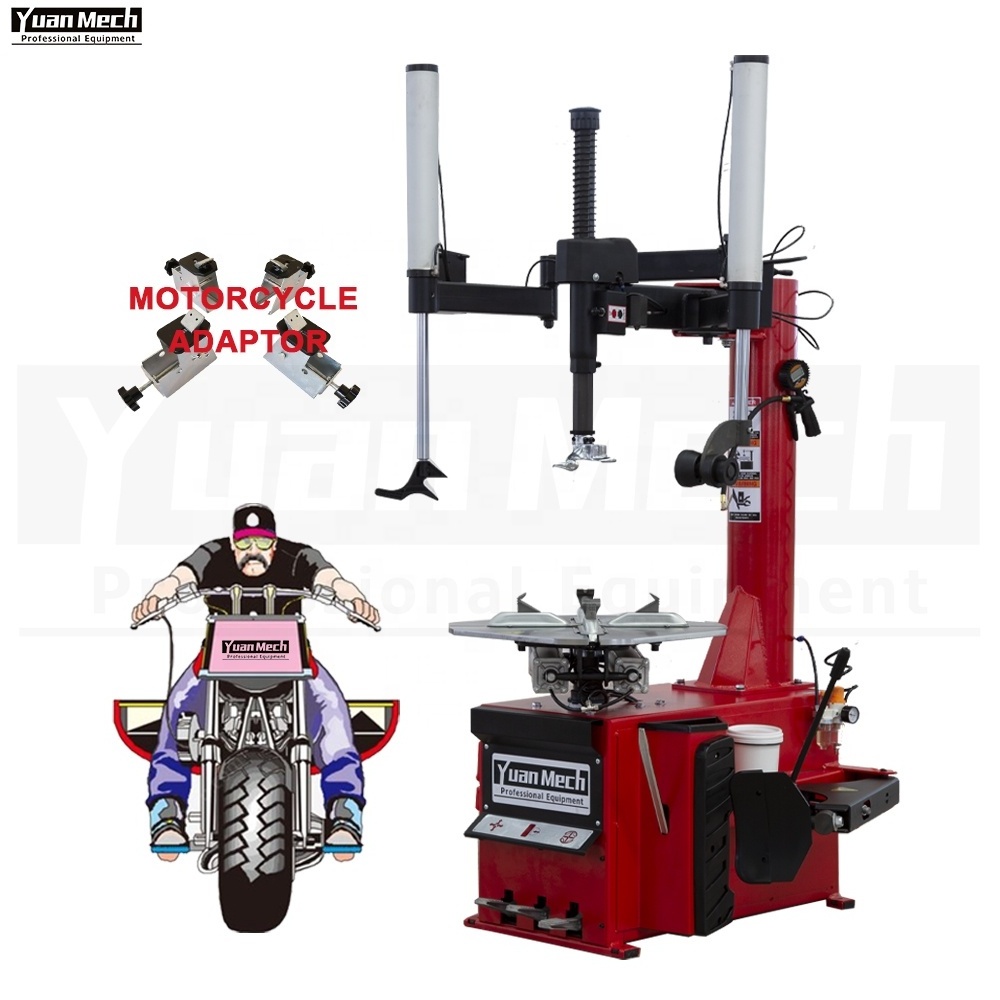

This is the affordable solution to make passenger car tire equipment work with lawn and garden, golf-cart and motorcycle wheels.

Equipped with unique motorcycle wheel clamps and a powerful turntable to take the hassle out of wheel repairs.

The tire changer is equipped with adjustable, raised wheel clamps to accept small diameter wheels and motorcycle tire/wheel combinations with the hub or sprocket still installed.

The clamping jaws are designed to eliminate additional labor involved in removing the brake disc, sprocket, or drive pulley when servicing a wheel.

Our clamp is designed to limit damage to the clamped wheel as all touch points are plastic.

The Power Assist arm is equipped with a roller arm, pressing foot and lifting disk to aid in easily mounting and demounting tires.
Perfect for one person jobs, the machine reduces service time and allows single operator to change more tires with less effort.

The tire changer is equipped with standard clamping jaws that allow for changing automotive and light truck tires as well.

Line Drawing

A scientific dimensional, hardened stainless steel mount and demount head reducing stress on beads during all tire changing operations.

1.Multi-angle blade guarantees the bead breaking job precise and always safe on the tire bead. 2.Powerful and efficient bead breaking arm.

Conveniently-placed foot pedals that give you precise control over every step of the changing process.

1.Demount head has plastic protectors to limit damage to wheels. 2.The distance between hex shaft and its bushing can be decreased to prevent damage to the rim and tire.

Scientifically arranged components. The internal of your tire changer will always be clean and organized to extend the life of your equipment.

Industrial-grade pneumatic control valves constructed with High-performance seals and self-lubricating piston guides, help make your tire changer stronger and longer-lasting.

The hex shaft is pneumatically locked, make the work efficient.

The right side helper arm can be locked to swing arm. And the lock can be released pneumatically.

Independently controlled helper arms.

1.The power helper arms will safely secure the bead of the tire, moving along with the activated turntable. The bead will almost always seat without a struggle. 2.Traveling left side helper arm has drop-center tool. 3.The right side helper arm has double pressing rollers to adapt to various tires.
