Quick Details
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
RHCP Antenna
-
Gain:
-
5dBi
-
Frequency Range:
-
1616-1625MHz
-
Connector type:
-
SMA MALE
-
VSWR:
-
<1.5
-
Nominal Impedance:
-
50
-
Radome Material:
-
ABS
-
Mounting Method:
-
Screw
-
Operating Temperature:
-
-40°C~+85°C
-
Relative Humidity:
-
Up to 95%
Quick Details
-
Type:
-
satellite antenna
-
Brand Name:
-
MyAntenna
-
Model Number:
-
M02-0300140R0A
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
RHCP Antenna
-
Gain:
-
5dBi
-
Frequency Range:
-
1616-1625MHz
-
Connector type:
-
SMA MALE
-
VSWR:
-
<1.5
-
Nominal Impedance:
-
50
-
Radome Material:
-
ABS
-
Mounting Method:
-
Screw
-
Operating Temperature:
-
-40°C~+85°C
-
Relative Humidity:
-
Up to 95%
Products Description

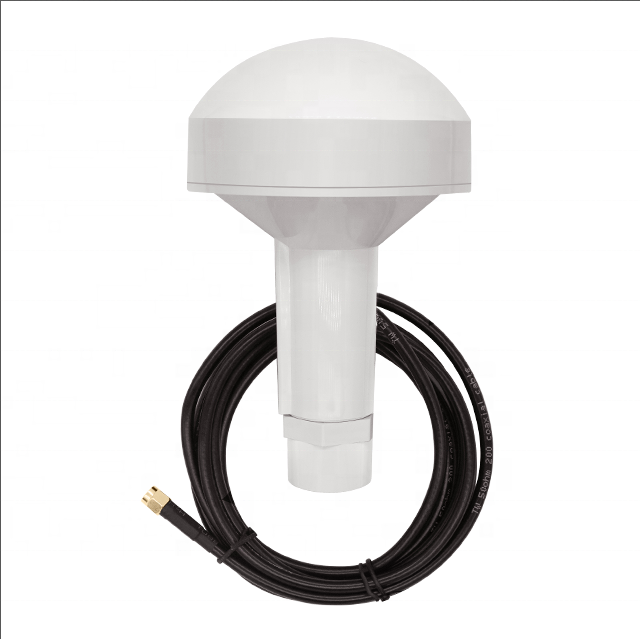

5dBi 1616MHZ-1626.5MHZ
Ceramic Patch Iridium Antenna
Feature:
●
35*35*4mm Ceramic Patch Iridium Antenna
●
Gain
≥
4.7dBi @2m RF200 Coaxial Cable
●
Efficiency
≥
58%@2m RF200 Coaxial Cable
●
The cover adopts high-strength materialtube which resists UV and impulse
●
Low loss RF200 Coaxial cable, 200MM length,
Φ
5.0mm
●
Customized product development supported
Specification
|
Frequency Bands, MHz
|
1616~1626.5
|
|
VSWR (Max)
|
<1.5
|
|
Peak Gain, dBi
|
4.7 Max
|
|
Imdepence
|
50 Ω
|
|
Band Width
|
10.5MHz
|
|
Connector
|
SMA or others
|
|
Radome Material
|
ABS
|
|
Mounting Method
|
Screw
|
|
Operating Temperature
|
-40°C~+85°C
|
|
Relative Humidity
|
Up to 95%
|
|
Ingress Protection
|
IP67
|
|
Vibration
|
Wave Form: Random Vibration
Test Time: 30min/Axis
Direction: X, Y,Z Axis
PSD Break Points for 9.8 RMS(m/s2)
|
