Quick Details
-
Mounting Type:
-
Flange mount
-
Description:
-
RTD Pt100 Pt1000
-
Model Number:
-
MZP
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Focusens
-
Theory:
-
Resistance change with temperature
-
Output:
-
Analog output
-
Element:
-
Pt100, Pt1000
-
Accuracy:
-
Class A(±0.15°C), Class B(±0.3°C)
-
TCR:
-
3850 ppm/K
-
Housing materials:
-
SUS304, SUS316, Brass, etc
-
Wire material:
-
PVC, Silicone, PTFE
-
Wire length:
-
Customized
-
Connector:
-
Molex, JST
-
Conductor:
-
2 wire, 3 wire
-
Certificate:
-
ROHS+REACH
-
Application:
-
Oven, stove, HVACR
Quick Details
-
Usage:
-
Temperature measurement
-
Series:
-
MZP
-
Features:
-
High precision
-
Mounting Type:
-
Flange mount
-
Description:
-
RTD Pt100 Pt1000
-
Model Number:
-
MZP
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Focusens
-
Theory:
-
Resistance change with temperature
-
Output:
-
Analog output
-
Element:
-
Pt100, Pt1000
-
Accuracy:
-
Class A(±0.15°C), Class B(±0.3°C)
-
TCR:
-
3850 ppm/K
-
Housing materials:
-
SUS304, SUS316, Brass, etc
-
Wire material:
-
PVC, Silicone, PTFE
-
Wire length:
-
Customized
-
Connector:
-
Molex, JST
-
Conductor:
-
2 wire, 3 wire
-
Certificate:
-
ROHS+REACH
-
Application:
-
Oven, stove, HVACR

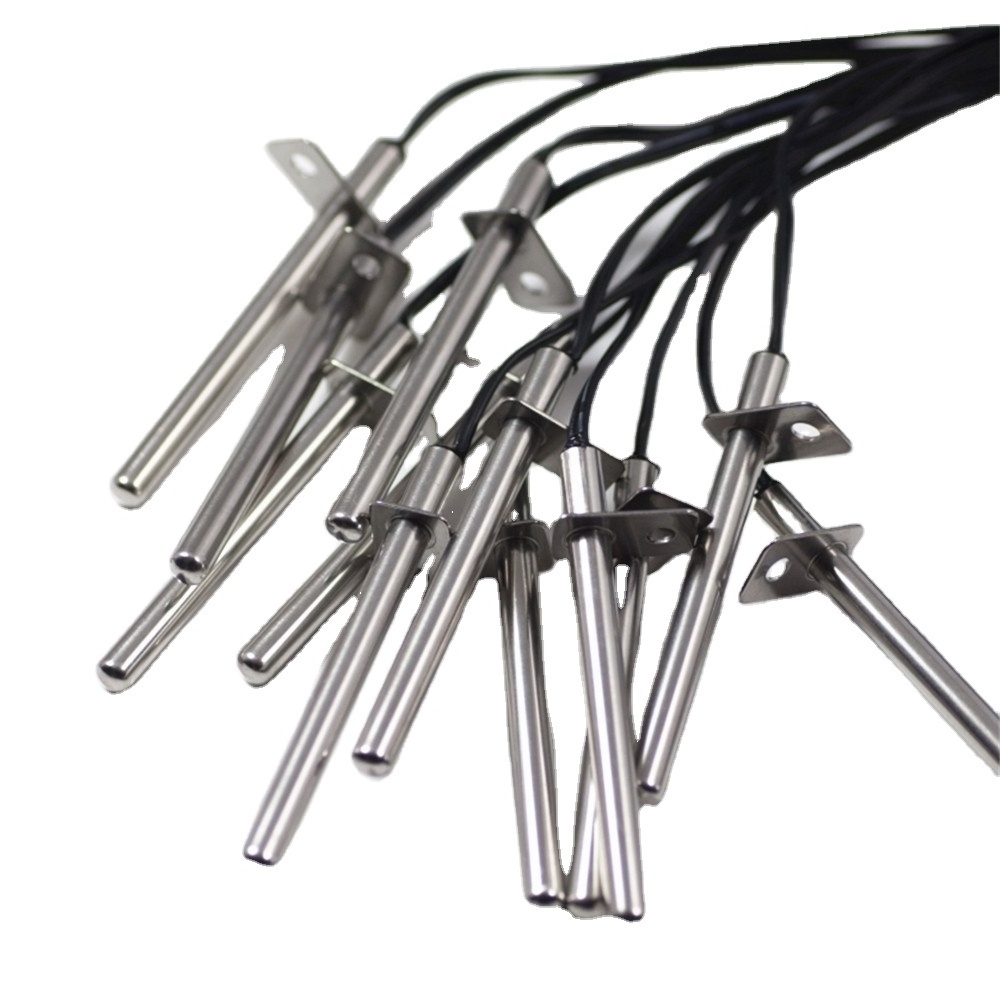

A Pt100/Pt1000 RTD is a type of temperature sensor. It consists of an element that uses resistance to measure temperature. Often platinum is used for the element which is the reason why they are often called platinum resistance thermometers (PRTs). Other common names include RTDs (short for resistance temperature detector) and depending on the element type Pt100, Pt200, Pt500 or Pt1000.
.
|
Item
|
Specifications
|
|
Sensor type
|
Platinum Resistance, Pt100 or Pt1000
|
|
Ice point resistance
|
100Ω or 1000Ω Ohms
|
|
Fundamental interval (0°C to 100°C)
|
38.5Ω nominal (100Ω)
385Ω nominal (1000Ω) |
|
Measuring range
|
-50~200°C, -50~350°C, -50~600°C
|
|
Tolerance class
|
DIN Class A or B
|
|
Response time
|
10S (0.63τ)
|
|
Insulation Resistance
|
100Mohm
|
|
Cable material
|
PVC, Teflon, Silicone, Fiberglass
|
|
Housing
|
SUS304 or SUS316
|
|
European / British Standard
|
Conforms to IEC 60751:2008 / BS EN 60751:2008
|
Features
◆ Flanged housing allows for easy mounting
◆ Standard design widely used in cooking ovens
◆ Available in Pt100 or Pt1000 resistance values
◆ Available in a variety of sizes with or without brazed flange
◆ +500°C maximum operating temperature
◆ Typical wire sizes: #22-28 AWG
◆ Standard design widely used in cooking ovens
◆ Available in Pt100 or Pt1000 resistance values
◆ Available in a variety of sizes with or without brazed flange
◆ +500°C maximum operating temperature
◆ Typical wire sizes: #22-28 AWG
Flexible
customize the product specifications and shape to match your applications.
