Quick Details
-
Transmitting antenna:
-
75cm rod antenna
Quick Details
-
Place of Origin:
-
Guangdong, China
-
fm:
-
50Hz-18KHz
-
power:
-
100mW
-
Transmitting antenna:
-
75cm rod antenna

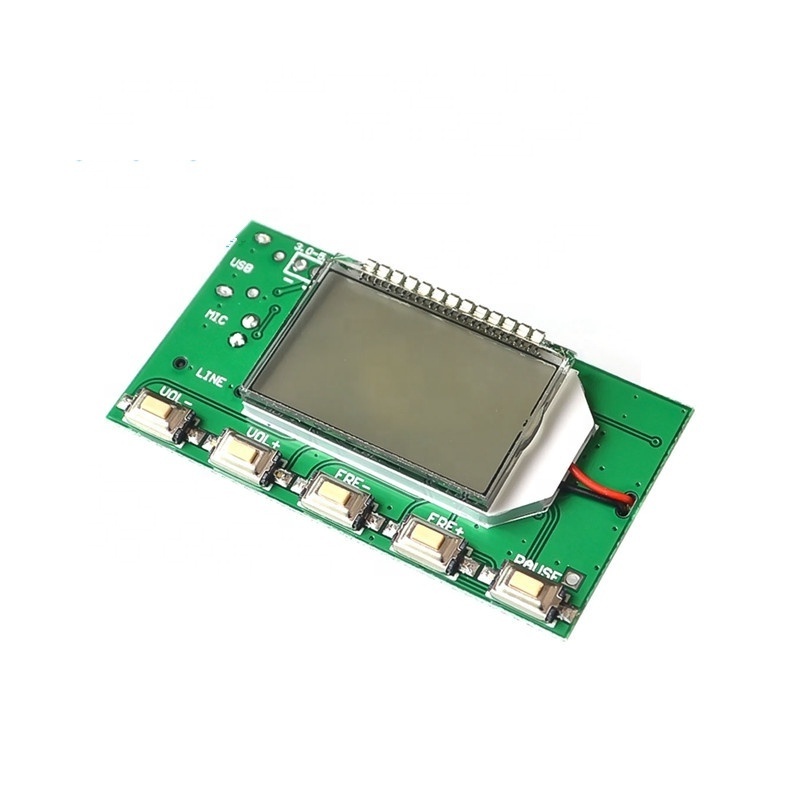

Taidacent serial command control multi-channel audio DSP fm stereo transmitter fm stereo pll transmitter am fm tuner module
1: Use advanced digital audio signal processing (DSP) and FM phase-locked loop modulation (PLL) to make the sound more realistic, more stable performance, and no shift in long-term operating frequency.
2: LCD display is more intuitive and accurate, with very low power consumption and minimal noise interference.
3: Built-in 30-level digital volume adjustment, easy to complete by button operation.
4: Data after power failure automatic memory power failure
5: Multi-channel audio input is automatically switched
6: Using quartz crystal to stabilize the frequency, the temperature changes the transmission frequency and no longer drifts.
7: Support serial command control
Output power: 100mW
Audio frequency response range: 50Hz-18KHz
Transmission frequency:
Turn off campus broadcast 87.0MHz-108.0MHz, turn on campus broadcast 76.0MHz-108.0MHz
Frequency adjustment step: 0.1MHz / time (button short press), 1.0MHz / time (button long press)
Modulation mode: standard FM
Channel: LINE/USB channel (stereo), MIC channel (mono)
Equivalent noise: ≥30dB (sound quality is close to CD sound quality)
Supply voltage: DC 3.0V-5.0V
Working current: 35mA
Transmitting antenna: 75cm rod antenna
Launch distance: The FM transmitter module is connected to a 75cm standard whip antenna.
